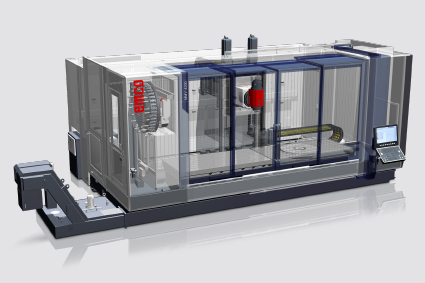

|Travel in X/Y/Z||4200 / 1000 / 980 mm|
|Distance spindle nose||0 - 980 (950) mm (vertical) / 250 (280) - 1230 mm (horizontal)|
|Rapid motion speeds in X/Y/Z||60 / 40 / 40 m/min|
|Clamping area||4500 x 1050 mm|
|Max. table load||6000 kg|
|Number of tool stations||40 (60 / 120)|
|Max. tool diameter||90 (125) mm|
|Max. speed||15000 (18000) rpm|
|Max. torque||125 Nm (S1), 170 Nm (S6-40%)|

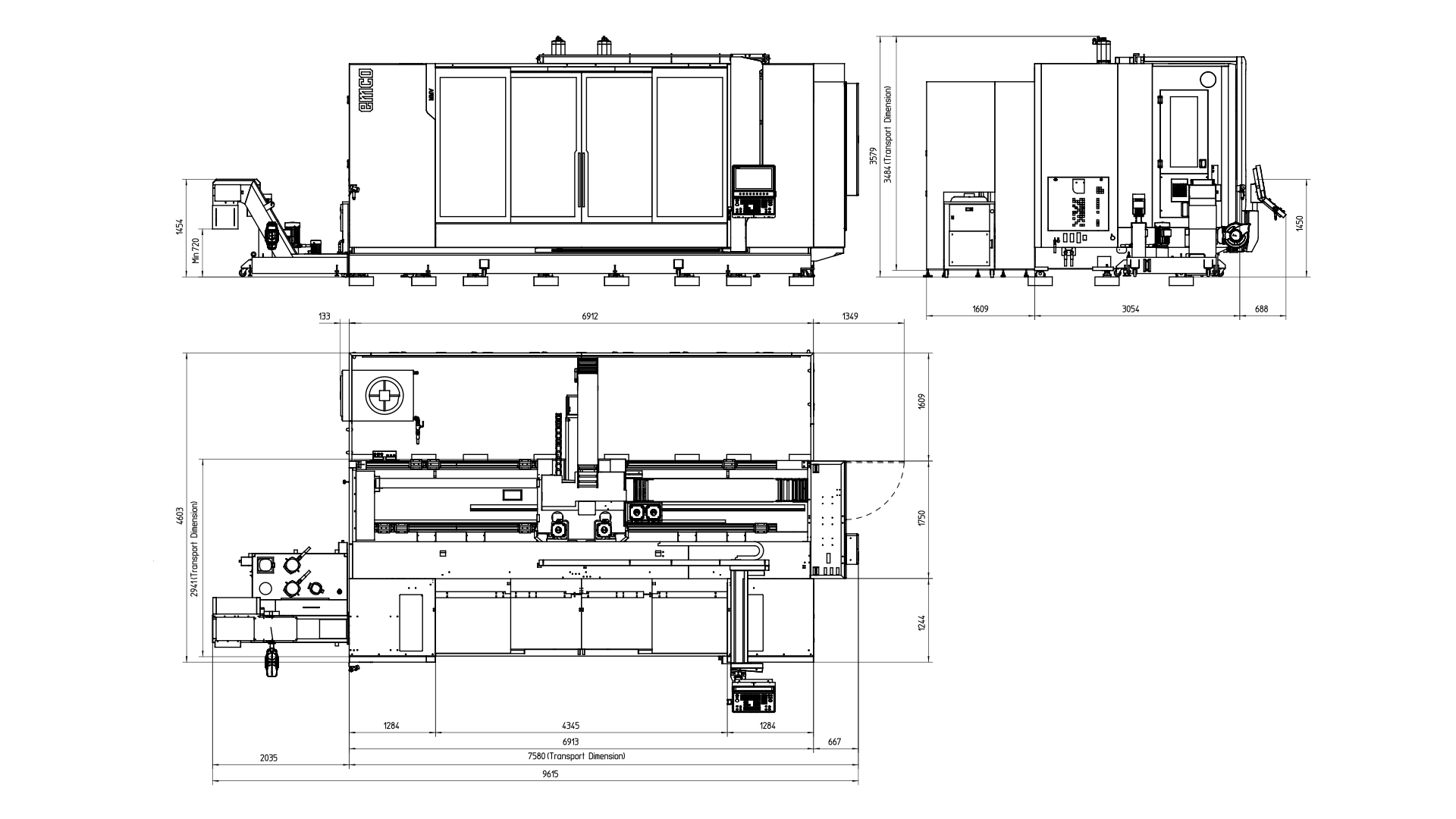

|Dimensions (LxWxH)||9615 mm x 5350 mm x 3580 mm|
|Machine weight||29500 kg|

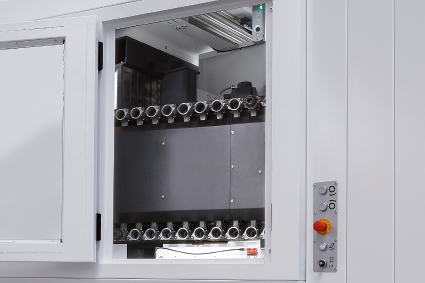

Available with steady tool magazine on 3, 4 or 5-axis version, or with moving chain magazine on and 5-axis version.
The operator panel can travel, rotate and be adjusted in the direction of the work space. This ergonomic design provides ideal working conditions for the operator.
The machine bed is a stable, structured welded steel construction. This guarantees a high degree of rigidity and excellent vibration damping, which are necessary for machining in optimal and stable conditions over time. Structure with optional equipment.

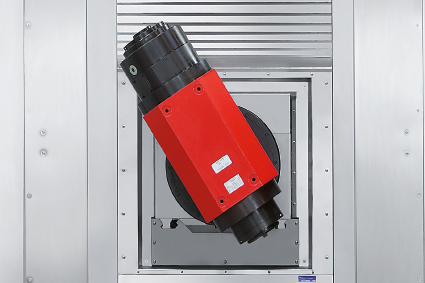

The B-axis is driven by ahighly dynamic torque motor, therefore achieving a wide pivoting range of +/- 120 degrees.

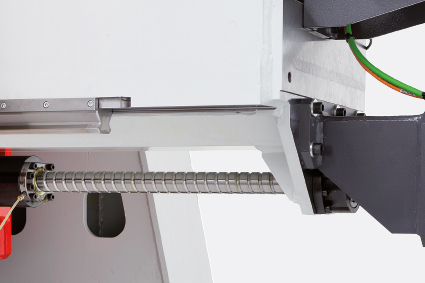

The Y-axis has a ram configuration. This design uses long way guides in order to attain the required rigidity. Its high precision is guaranteed by the motor installed direct drive on the screw.

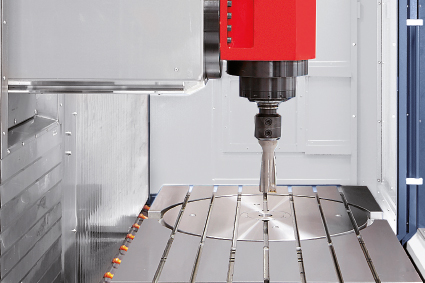

The machine is equipped with a liquid cooled motor spindle with compelling performance specs. At spindle speeds of 15000 rpms, a power rating of 46 kW, and a torque of 170 Nm, the machine is also suited for heavy-duty machining. A motor spindle 18000 rpm is available with HSK-A63: The HSK-A100 version hosts a motor spindle with 10000 rpm and max. torque 270 Nm.

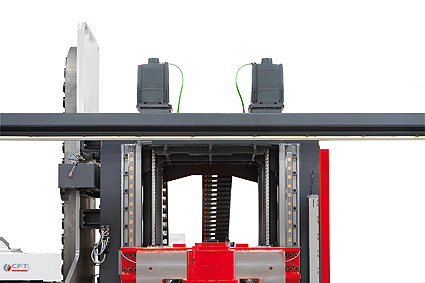

In order to attain precision Z-axis rapid travel at speeds of 40 m/min, and due to its large mass, this axis is powered by two ball screw drives and two motors in a master-slave configuration.

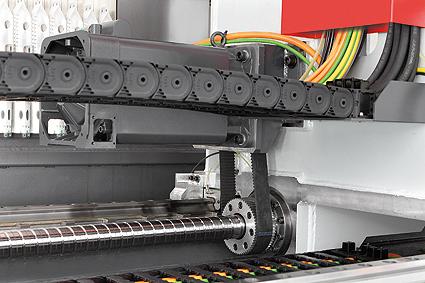

Equipped with rotating nut ballscrew and fixed screw. The MMV 4200-5200-6200 positioning accuracy is guaranteed by the standard linear scale. Linear scales are standard on the three linear axes (X, Y and Z).

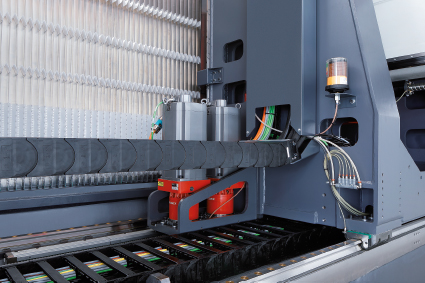

In the MMV 4200-5200-6200 machines, the X-axis is implemented with a rack and pinion drive, which guarantees maximum precision and smoothness.

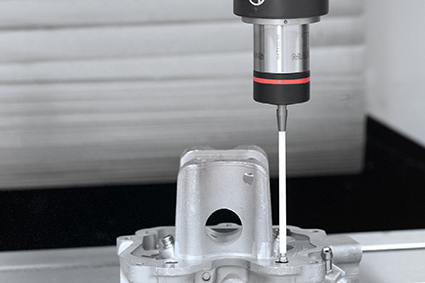

Tools measurements to reduce setup times during tool changes, as well as work piece measurements to verify dimensions or to find zero locations. The work piece measurement is radio.

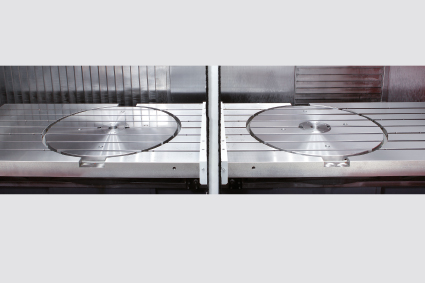

Thanks to the large work area, it is possible to customise the machine with a wide variety of options, e.g. with a partition for pendulum operation, a rotary table, a tailstock etc.

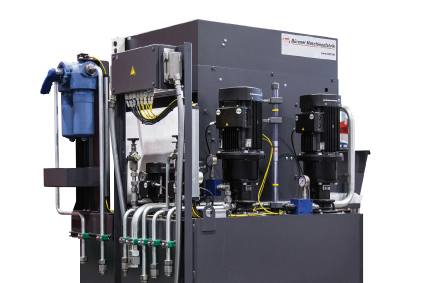

A coolant pressure of 25/40/60/80 bar can be set as necessary. This enables coolant-fed drilling and milling tools to be used to their best advantage.
The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.
With the Sinumerik ONE you rely on:
Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.
The new SINUMERIK ONE has been specially developed for smart manufacturing.
This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

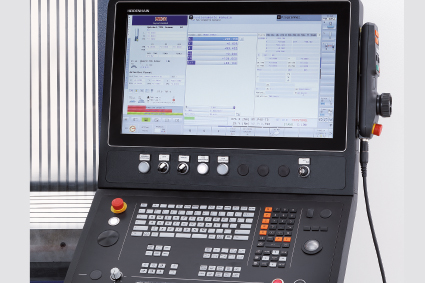

TNC 640 Heidenhain offers besides the milling operations also combined milling and turning operations. It is particularly suitable for Mill-Turn, HSC- and 5 axis operations at machines upto 18 axes.
For increased productivity and efficiency in production.
EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.
Included as standard equipment in the Siemens machine version (Sinumerik ONE).
