Hyperturn 200 Powermill

EQUIPMENT

Hauptspindel für Dreh- und Frässpindeloperationen
Frässpindel für Dreh-,Bohr- und Fräsoperationen
2 Frässpindeln zur Auswahl mit hohem Drehmoment (6.500 U/min / 630 Nm) oder hoher Drehzahl (10.000 U/min / 340 Nm)
Bis zu 200 Werkzeugstationen
Zusätzl. 3 Stationen für Bohrstangen und lange Werkzeuge
EMCONNECT - Digitaler Prozess-Assistent

Technische Daten

Arbeitsbereich
Verfahrweg in X/Y/Z 915 // +/-300 // 3100-4100-5100-6100
Max. Drehdurchmesser 1000 mm
Max. Teilelänge mit Reitstock 3200 / 4200 / 5200 / 6200
Max. Teilelänge 6100 mm
Umlaufdurchmesser über Bett 1050 mm
Spitzenweite 3200 / 4200 / 5200 / 6200
Eilganggeschwindigkeit X/Y/Z 30 / 30 / 30 m/min
Max. Vorschubkraft in X/Y/Z 3000 / 2000 / 3000 N
Hauptspindel
Max. Drehzahl 1800 U/min
Spindelanschluss A2-15''
Max. Antriebsleistung 84 kW
Max. Drehmoment 6410 Nm
Gegenspindel
Max. Drehzahl 1800 U/min
Spindelanschluss A2-15''
Max. Antriebsleistung 84 kW
Max. Drehmoment 6410 Nm
Werkzeugwechsel
Anzahl der Werkzeugplätze 50 / 100 / 200
Max. Werkzeugdurchmesser 120 / 240 mm
Frässpindel
Max. Drehzahl 6500 (10000) U/min
Max. Drehmoment 630 (340) Nm
Abmessungen
Dimensionen (LxBxH) 12400-13400-14400-15400 x 4000 x 3400 mm
Maschinengewicht 30000 - 45000 kg

Highlights

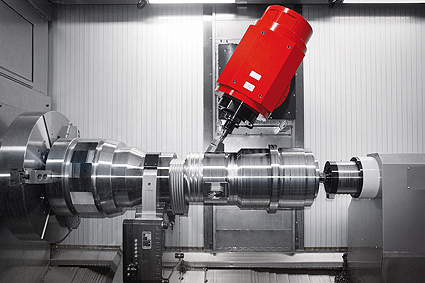

  • Sehr großer Arbeitsraum für die Komplettbearbeitung von Werkstücken bis zu einem Drehdurchmesser von 1000 mm bei einer maximalen Länge von 6100 mm

  • Dynamische und präzise B-Achse mit hohem Drehmoment und Leistung

  • Zwei Versionen von Frässpindeln mit 6500 oder 10000 U/min, mit HSK-T100 oder PSC80 (Capto C8)

  • Multi-Tasking und Multi-Technologie: Sinumerik 840D sl

  • Hauptspindel und Gegenspindel: Hochleistungsbearbeitung mit schwingungsgedämpfter Bohrstange bis zu 1000 mm, einschließlich eines speziellen Magazins (optional)

  • Automatische Werkzeugvoreinstellungen und Werkstück-Messtaster

  • Eine oder mehrere NC-Lünetten

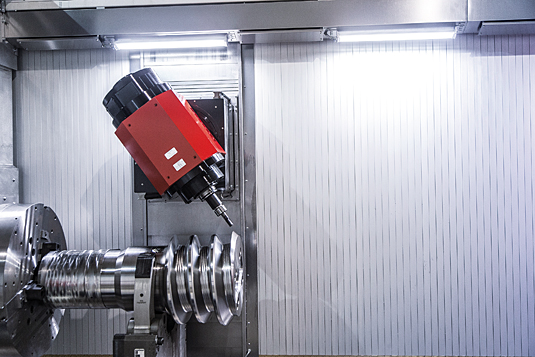

Ram-System in Box-in-Box Struktur

Fahrständer. Ist wie bei den Maschinen von EMCO MECOF in einer „Box-in-Box“-Ram-Konstruktion aufgebaut. Damit sind optimale Steifigkeit und Stabilität gewährleistet und eine hohe Genauigkeit bei der Bearbeitung umsetzbar. Die B-Achse ist mit Torque-Motor ausgestattet und in das Ram-Design integriert.

Leistungsstarke Hauptspindel für Schwerzerspanung

Für Dreh- und Fräsoperationen, ausgestattet mit 84 kW und 6400 Nm Drehmoment. Sperrluft, Spülung und programmierbarer Spanndruck sind Standard-Eigenschaften bei der Hyperturn 200. Eine oder mehrere programmierbare NC-Lünetten können die Bearbeitung unterstützen.

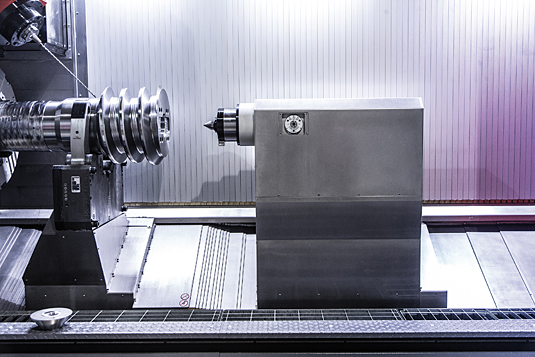

Reitstock: zu 100% über die Steuerung programmierbar

Der Reitstock ist zu 100% über die Steuerung programmierbar. Mit hochwertiger und hochdimensionierter MK6 Pinole können alle Bearbeitungen unterstützt oder mit der Gegenspindel aus dem modularen Baukasten erweitert werden.

Options/Accessories

EMCO tool breakage monitoring system

The tool status is monitored by evaluating the load on the various axis drive motors. Excessive loads point to wear or broken tools. Too low a load indicates a tool is missing.

Band filter system with high-pressure coolant pumps

A coolant pressure of 25/40/60/80 bar can be set as necessary. This enables coolant-fed drilling and milling tools to be used to their best advantage.

Software/Control

[Translate to en:]
Sinumerik 840D sl for Hyperturn 200 Powermill
Shopturn-Shopmill/machining cycles, Machining simulation, Tool management, EMCO Diagnostics, etc.

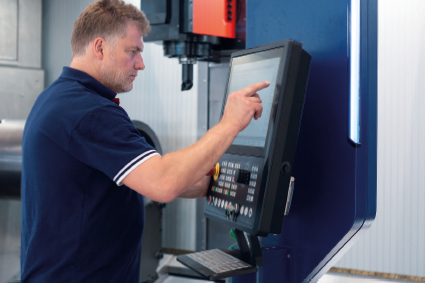

The Sinumerik 840D sl with Operate user interface is ergonomically located at EMCO on the left of the work area and can be swivelled approx. 120° and - with the Hyperturn 200 - also be moved. Shopturn dialog programming, RJ45 and a 230 volt outlet on the side are included in the standard version as well as a robust OP19“ touchscreen for industrial use.

Show details Hide details
EMCONNECT - Digital Process Assistant

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).

Show details Hide details
Esprit (optional)

The sensational CAM solution for turning and turning/milling. ESPRIT greatly simplifies the programming of complex machining processes and significantly reduces set-up times.

ESPRIT Applications:

  • Complete CNC programming for up to 22-axis turning
  • Turning/milling for single-spindle lathes
  • Turning/milling for multi-carriage turning centers
  • Turning/milling for multi-tasking machine tools including B axis

Simulations:

  • Dry runs in dynamic volume view
  • Shaded in the entire working environment: Machine tool, clamping devices, blank and workpiece
  • Extensive collision detection: Tool, blank, workpiece clamping devices and target/actual workpiece comparison

Show details Hide details
EMCO CPS Pilot (optional)
EMCO CPS PILOT is the virtual EMCO machine on the PC. The operator works at an external programming station with an image of the machine in simulated operation. Therefore, NC programs can be planned, programmed, simulated and honed.

Using CPS the result is 100 % production reliability, up to 80 % shorter set-up times and an enormous increase in productivity and operating efficiency.

  • 100 % identical behavior of machine and PC
  • Collision monitoring for clamps, parts, tools, tool holders and machine components
  • Collisions can be completely eliminated before they even happen
  • The machine's productivity is maximized
  • Perfect tuning of both tooling systems
  • Resimulation and optimization of existing NC programs
  • Fewer rejects
  • Ideal for internal machining and operator training courses (no machine downtimes!)
  • Very little training required, as identical with the machine's user interface

Show details Hide details
