HYPERTURN 65 POWERMILL G2

HYPERTURN 65 POWERMILL G2

HYPERTURN 65 POWERMILL G2

EQUIPMENT

Haupt- und Gegenspindel, Frässpindel, B- und Y-Achse
Zuätzlicher Werkzeugrevolver mit Fräsantrieb
40-, 80-, 120-fach Werkzeugmagazin
Ergonomische Magazin- und Steuerungsanordnung
Stangendurchmesser 65 (102) mm
EMCONNECT - Digitaler Prozess-Assistent (Sinumerik ONE)

Technische Daten

Arbeitsbereich
Verfahrweg in X/Y/Z X1/X2 530/210 mm // Z1/Z2 1215/1205 mm // +/-120 mm
Max. Stangendurchlass 65 (102) mm
Max. Drehdurchmesser 500 mm
Umlaufdurchmesser über Bett 500 mm
Spindelabstand 1500 mm
Hauptspindel
Max. Drehzahl 0-5000 (4000) U/min
Max. Antriebsleistung 29 (38) kW
Max. Drehmoment 250 (800) Nm
Gegenspindel
Max. Drehzahl 0-5000 (4000) U/min
Max. Antriebsleistung 29 (33) kW
Max. Drehmoment 250 (420) Nm
Werkzeugrevolver
Anzahl der Werkzeugpositionen 40, 80, 120
Angetriebene Werkzeuge 12 (16) / BMT-55P (BMT 45P) / VDI40
Max. Drehzahl 0-12000 U/min
Max. Antriebsleistung 11,7 kW
Max. Drehmoment 28 (25) Nm
Abmessungen
Dimensionen (LxBxH) 5970 x 2430 x 2480 mm
Maschinengewicht 15000 - 16500 kg

Highlights

  • Wysoka dynamika dzięki najnowocześniejszej technologii elektrowrzecion

    Wszystkie wrzeciona chłodzone cieczą dla optymalnej termostabilności

    Wysoka produktywność dzięki krótkim czasom wymiany narzędzi

    Oba systemy narzędziowe mogą być używane dla obu wrzeciona

  • Konstrukcja łoża zapewnia maksymalną stabilność i tłumienie drgań

    Doskonała powtarzalność dzięki prowadnicom liniowym

    Krótkie czasy przezbrajania dzięki łatwemu dostępowi do przestrzeni roboczej

Gear skiving to machine internal and external gear

Steuerung - schwenkbar und höhenverstellbar

Haltebremse an Haupt- und Gegenspindel

Spannnhubüberwachung an Haupt- und Gegenspindel

Overall dimensions/Work space

Aufstellplan mit Bandfilteranlage u. Kurzstangenlader

Aufstellplan mit Bandfilteranlage u. Kurzstangenlader

Aufstellplan mit Bandfilteranlage und Kurzstangenlader

Grundriss

Grundriss

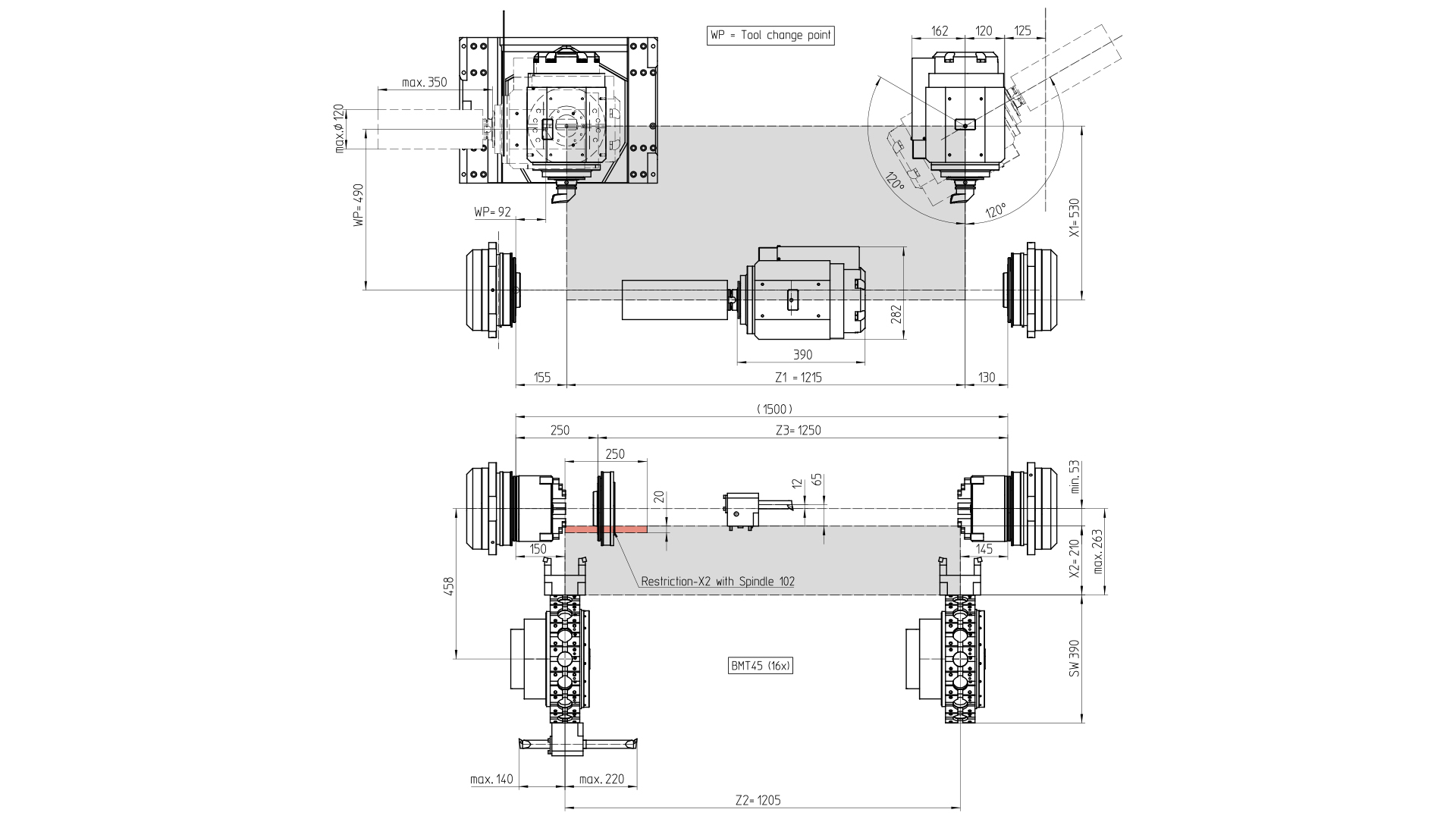

Arbeitsraum BMT 45

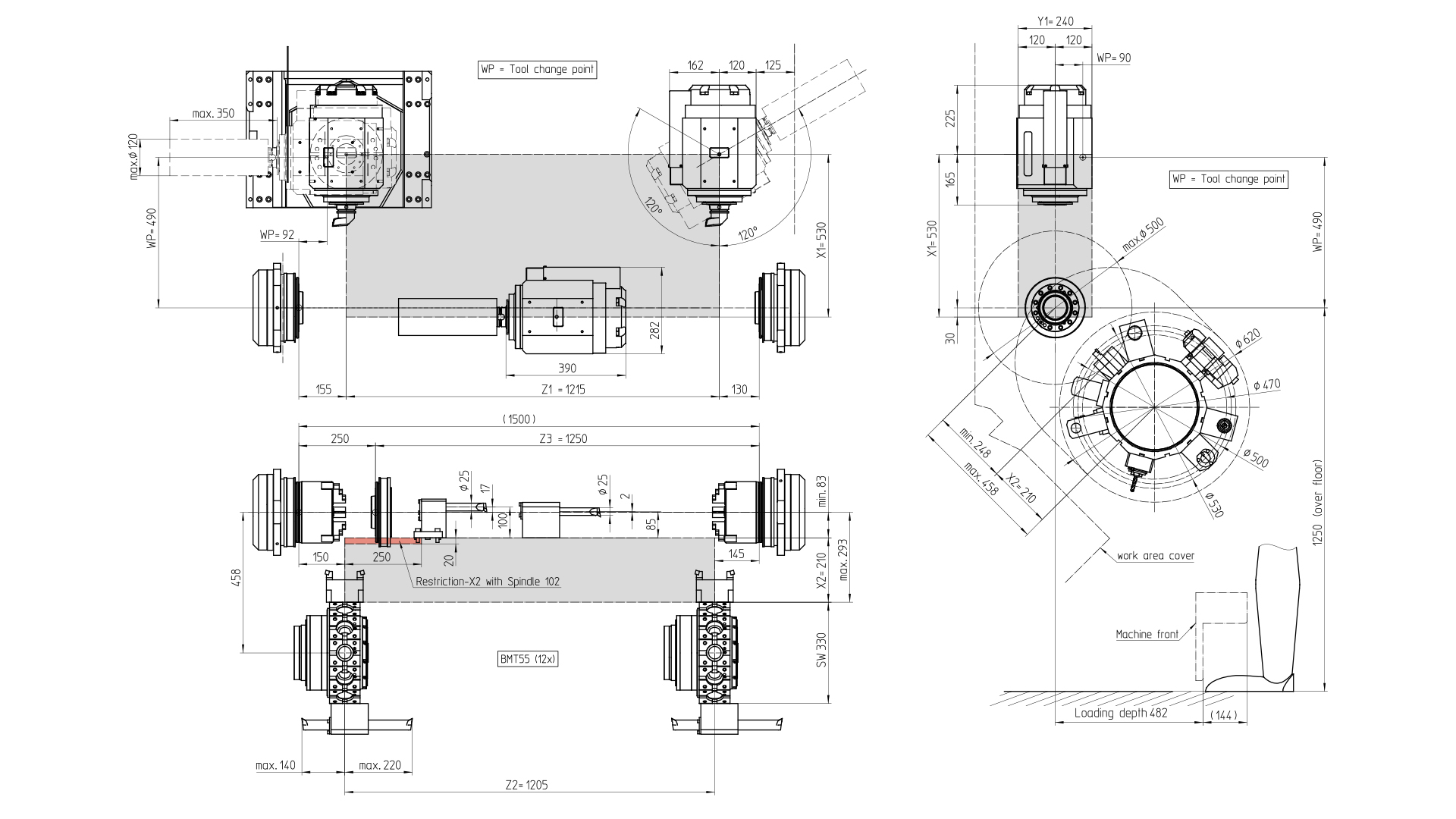

Arbeitsraum BMT 55

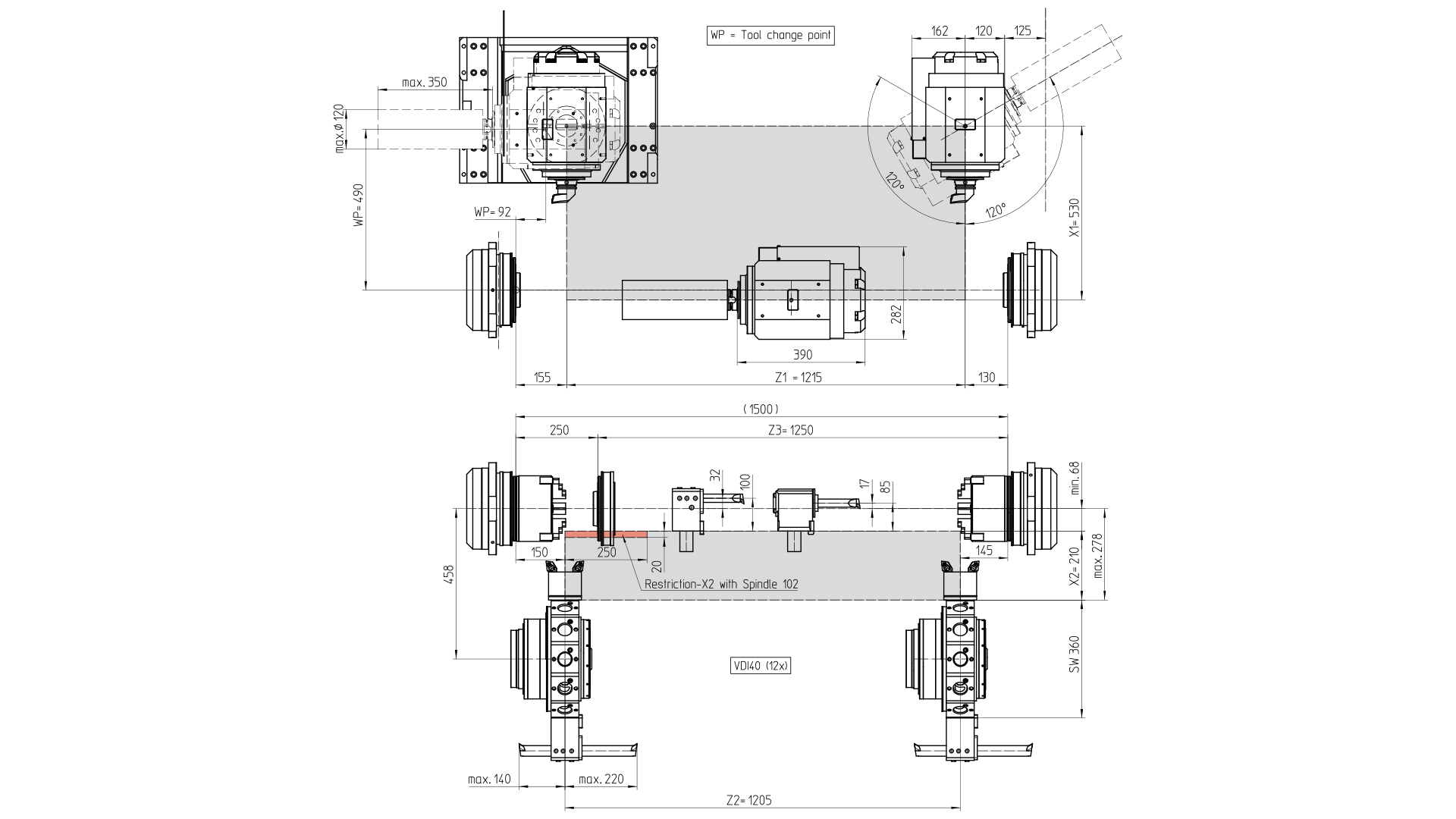

Arbeitsraum VDI40

Workpieces

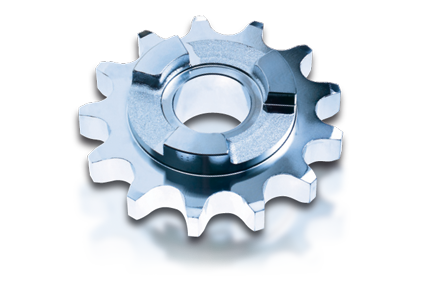

Kettenrad (Stahl Ck45)

Automation

Gantry Loader

Universal loading and unloading for preformed blanks and parts.

Using the multiple grippers and handling systems the gantry loader can be customized to your individual needs.

Turn / Mill Assist

Compact standard automation for small and medium-sized batches for turning and milling machines.

  • Reduction of working hours by up to 70%
  • Compact and space-saving solution
  • Graphically supported operation
  • Free access to the machine door
  • For small and medium-sized series
  • Very short configuration and setup times
  • No special knowledge about robots required
  • On-site installation and training

Software/Control

EMCONNECT - Digital Process Assistant

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).

Show details Hide details
EMCO CPS Pilot (optional)
EMCO CPS PILOT is the virtual EMCO machine on the PC. The operator works at an external programming station with an image of the machine in simulated operation. Therefore, NC programs can be planned, programmed, simulated and honed.

Using CPS the result is 100 % production reliability, up to 80 % shorter set-up times and an enormous increase in productivity and operating efficiency.

  • 100 % identical behavior of machine and PC
  • Collision monitoring for clamps, parts, tools, tool holders and machine components
  • Collisions can be completely eliminated before they even happen
  • The machine's productivity is maximized
  • Perfect tuning of both tooling systems
  • Resimulation and optimization of existing NC programs
  • Fewer rejects
  • Ideal for internal machining and operator training courses (no machine downtimes!)
  • Very little training required, as identical with the machine's user interface

Show details Hide details
Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
