Renowned for their full range of features, HEIDENHAIN controls can be ideally tailored to individual applications thanks to a series of feature packages and control versions.
HEIDENHAIN's TNC 640 allows for milling operations as well as for combined milling and turning operations. It is particularly suitable for the HSC and 5-axis operations performed by our machines. This workshop-oriented and versatile control offers a wide range of features.
The TNC 620 is a compact, versatile contouring control with up to five controlled axes. Due to its scope of performance and flexible operating concepts and the options of workshop-oriented plain-language or external programming, the TNC 620 is particularly well-suited for use with universal milling machines for one-off or series production, tool making, repair departments in training institutions.
The CNC PILOT 640 is characterised by comfortable and flexible NC programming options! With smart.Turn, HEIDENHAIN has taken another step towards user-friendly operation. Clearly structured input forms, default settings for globally valid values, selection options and straightforward graphic support ensure fast and easy operation.


  • Heidenhain TNC 640 particularly well-suited for the following applications:
  • 5-axis machining with swivel head and rotary table
  • 5-axis machining with large-scale machines
  • Machining centres and automated machining
  • Combined milling and turning machines
  • High-speed milling machines
  • TNC 620 offers the features required for these purposes, such as:
  • free contour programming
  • milling cycles for complex contours
  • quick setting of reference points with touch probes
  • swivelling machining plane
  • cylindrical surface machining
  • 3-D tool correction
  • quick job completion thanks to short block processing times

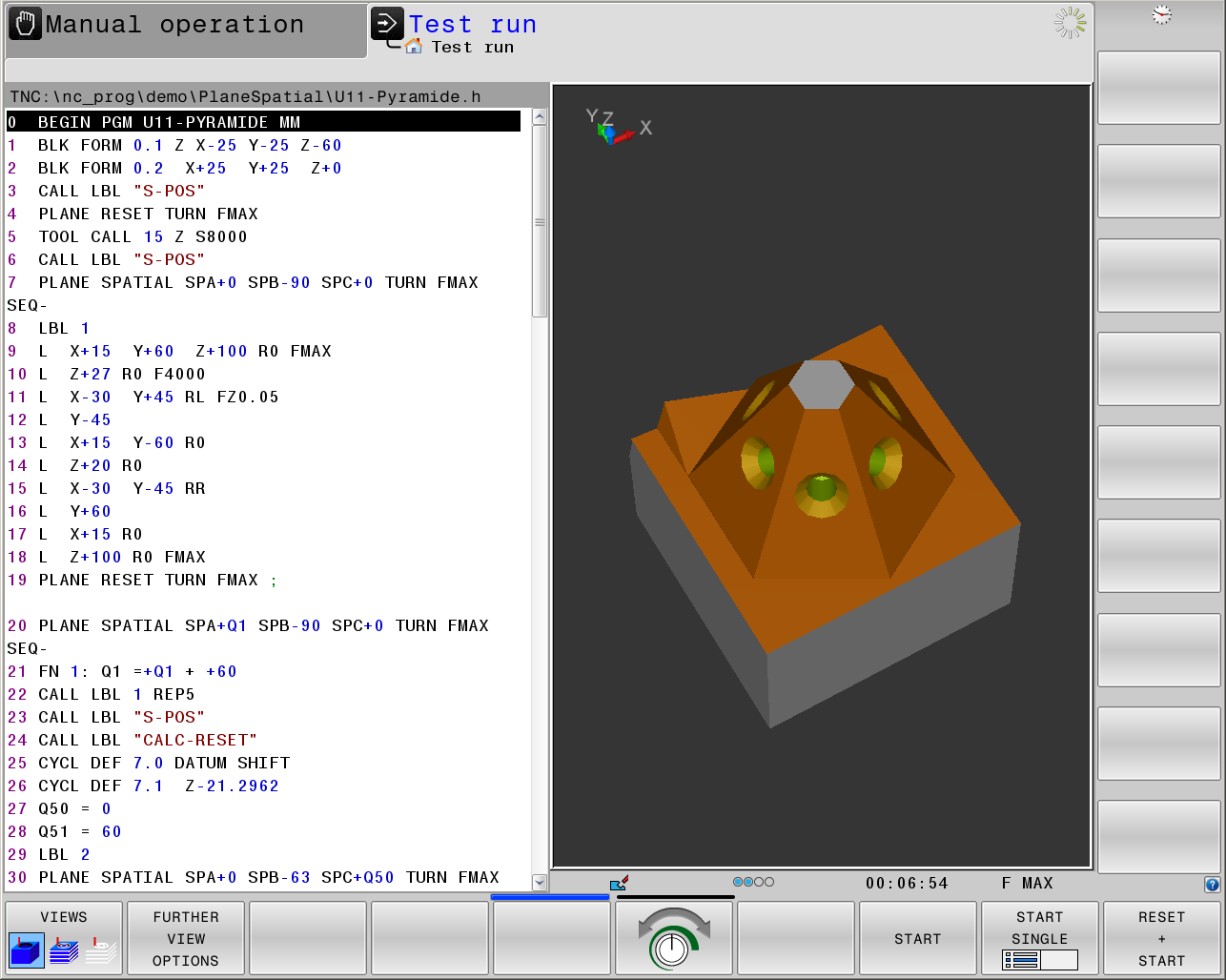

Heidenhain Pyramide EN

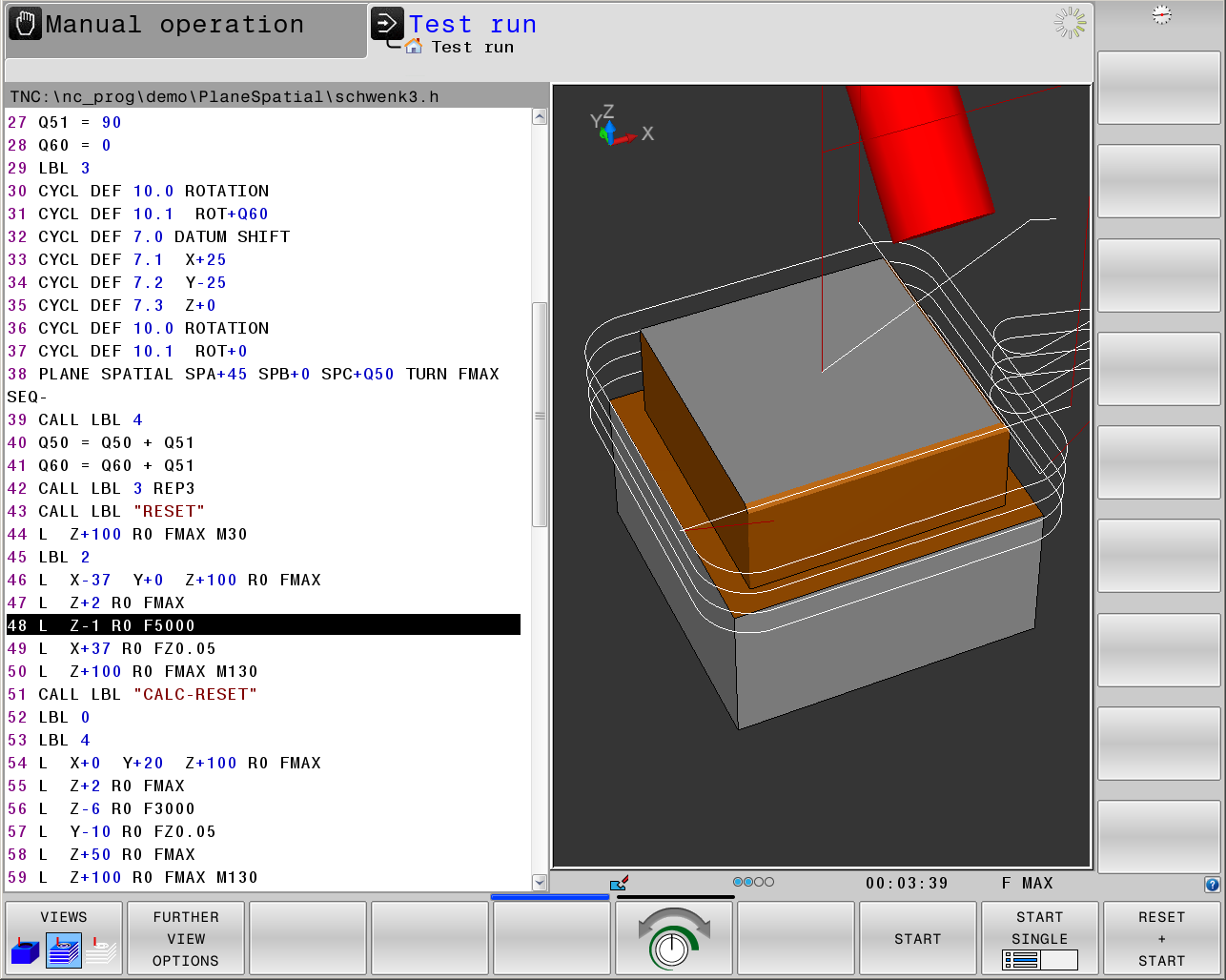

Heidenhain Schwenk 2 EN

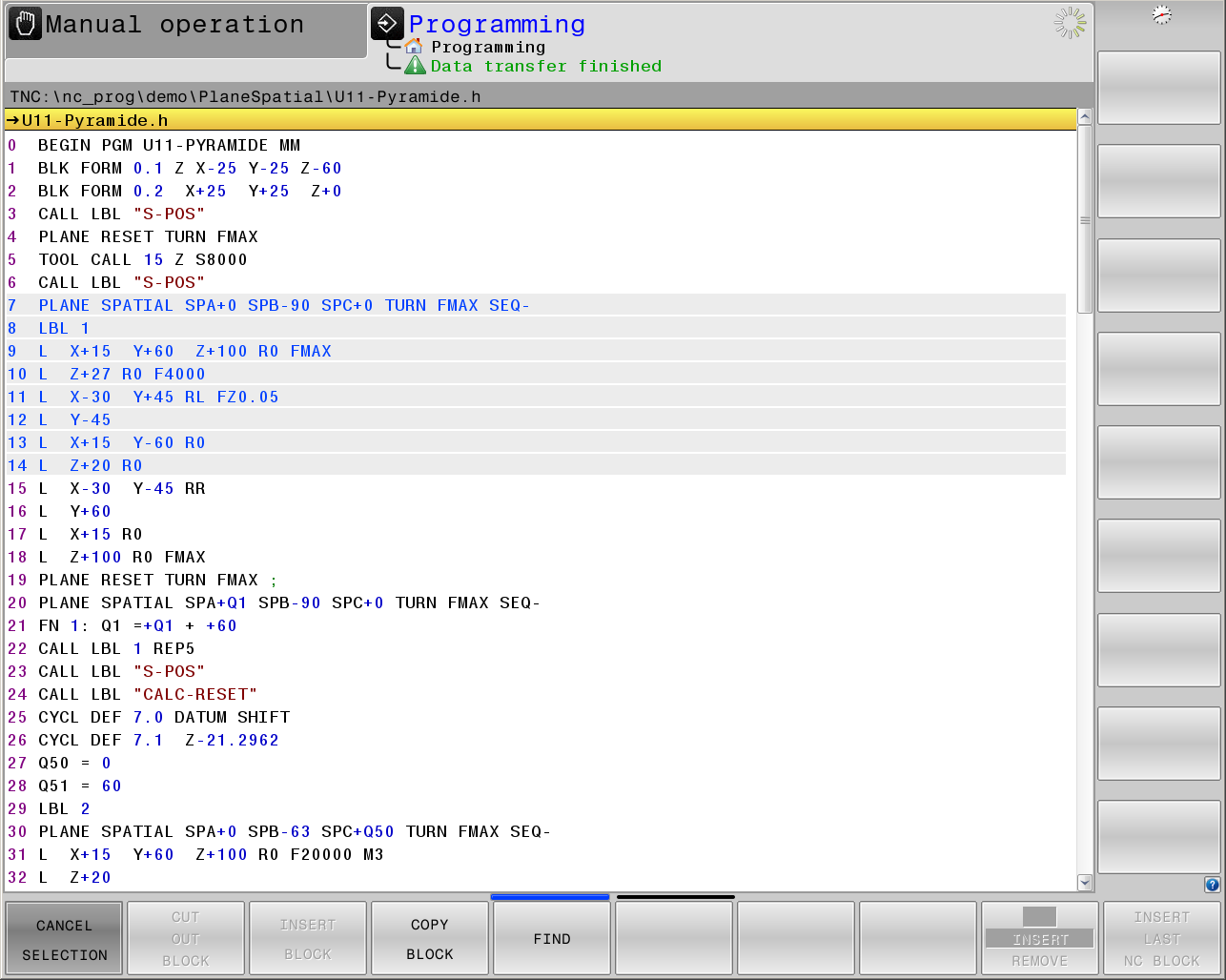

Heidenhain Pyramide edit
