Machining Center MMV 2000
Machining Center MMV 2000

Machining Center MMV 2000

EQUIPMENT

Machining Center with motor spindle 15000 rpm – 46 kW (S1/S6), 125/170 Nm (S1/S6)
Roller guide ways
Direct driven ball screws with rapid feeds up to 50 m/min
Tool magazine with 40 tool stations as standard but flexible configuration of tool magazine systems available
CNC Machining Center with Heidenhain or Siemens control
EMCONNECT – Digital Process Assistant (Sinumerik ONE)

Technical data

Work area
Travel in X/Y/Z 2000/800/750 mm
Distance spindle nose 0/750 mm
Number of axes (basic machine) 4 (5 optional)
Rapid motion speeds in X/Y/Z 50/50/50 m/min
Clamping area 2400x950 mm
Max. table load 2200 kg
Motor spindle
Max. speed 50-15000/50-18000 rpm
Drive power 46 kW
Max. Torque 125/170 Nm
Tool taper ISO40 (BT40 optional)
Tool change
Number of tool stations 40 (60) /Option tool turret left/right: 40/40 or 60/40
Max. tool diameter 75 (125) mm
Milling spindle
Max. speed 15.000 rpm
Max. torque 125 (S1) / 170 (S1) Nm
General data
Dimensions (LxWxH) 6144x4297x3160
Machine weight 22000 kg

Highlights

  • Flexible modular design

  • Available as 3,- 4- or 5-axis version

  • CNC Machining Center High-performance motor spindle

  • Rigid linear way system size 55 (X-axis)

  • Direct driven ball screws on the X and Z-axis, quiet operation

  • Machining Center Rotary table and B-axis with torque motors

  • Pneumatic weight balance, highly dynamic

  • SIEMENS Sinumerik ONE or HEIDENHAIN TNC 640

  • EMCONNECT - Digital Process Assistant (Sinumerik ONE)

Machine frame

Axis drives

Milling Spindle

TOOL MAGAZINE

Drum configuration with dual arm grippers for fast tool changes. Random tool management reduces tool changing times to a minimum. Thanks to the lateral magazine door (2x in case of double tool magazine), it is possible to check and set up the tools in parallel with the machining process.

Overall dimensions/Work space

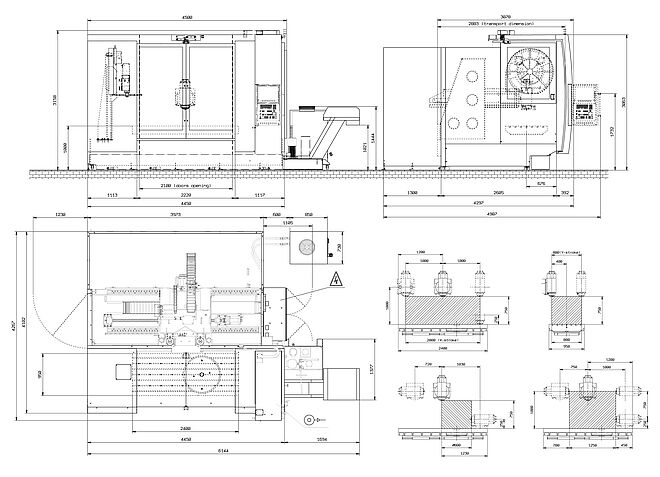

Machine layout, work area MMV 2000

Machine layout, work area MMV 2000

Workpieces

Examples of use

  • General engineering
  • Aircraft engineering
  • Drilling and milling operations

Drive connection

Drive connection (aluminium)

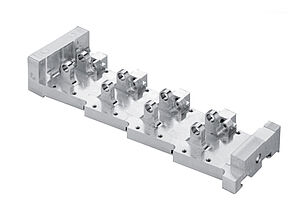

Mounting piece

Mounting piece (aluminium)

Structural Component

Options/Accessories

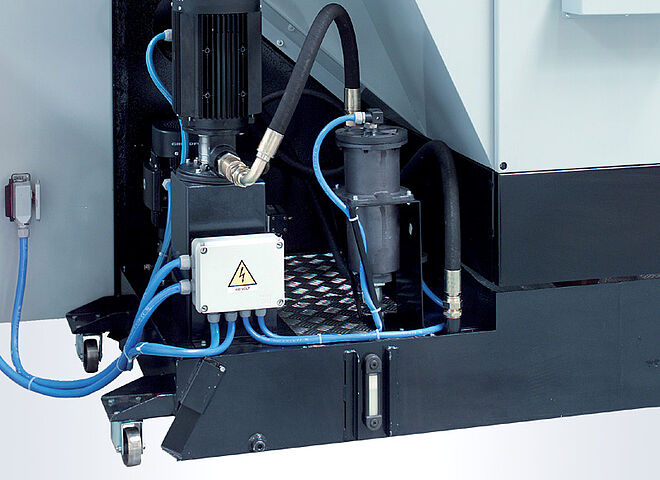

High pressure coolant pump

A swivel guide with a coolant pump with 20 bar cools the tools through the spindle.

Linear scales

Linear measuring of position with linear scales to eliminate displacement (thermal growth) and to increase the machine precision - standard version X-axis, Y- and Z-axis optional

Rotary coupling through the rotary table

Rotary coupling through the rotary table to connect a hydraulically operated clamping device.

MEASUREMENT SYSTEMS

Both the measurement of the tool to reduce the set-up time during tool change as well as measuring of the workpiece to check dimensions or to determine zero points, is optionally possible within the machine by means of a radio or a laser bridge.

Laser device for presetting, breakage check and profile measuring tools

A light barrier mounted on machine table scans the tool edges and automatically takes over the values into the tool offset memory for further processing.

Software/Control

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
Heidenhain TNC 640 (MMV series)

TNC 640 Heidenhain offers besides the milling operations also combined milling and turning operations. It is particularly suitable for Mill-Turn, HSC- and 5 axis operations at machines up to 18 axes.

Details:

  • 19'' TFT colour display
  • Optimised user interface
  • Interactive fast choice of functions
  • Numerous machining cycles
  • Innovative graphic simulation
  • Improved motion control and short block processing time

Show details Hide details
EMCONNECT - Digital Process Assistant

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).

Show details Hide details
