Emcomat-20 D

Emcomat-20 D
Symbolic picture

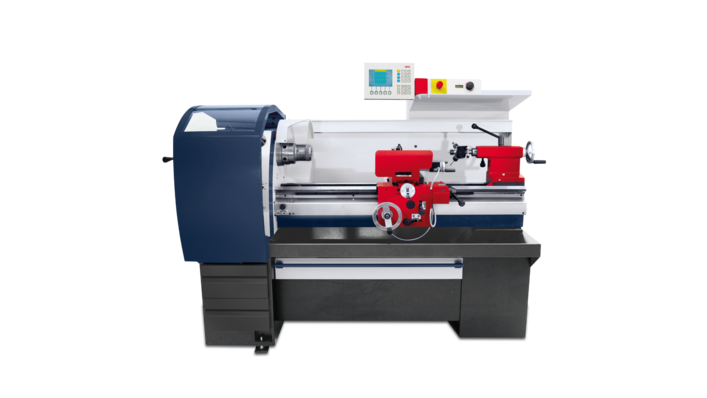

Emcomat-20 D

EQUIPMENT

Main spindle DIN55029
Tailstock (can be set off-center)
Single tool holder (Clamping claw)
Belt drive for feed gear
Electric chuck guard with limit switch
Optional equipment: e.g. coolant device, slideable chip protection doors etc.

Highlights

  • Diagonally ribbed, induction-hardened machine bed

    Electric chuck guard with limit switch

    High work speed

    Tailstock can be set off-center

    Digital display (EMCOMAT 20D) for X, Z and Zo

    Main spindle with 50 mm spindle bore

    Tool maker precision DIN8605

Workpieces

Application areas

Examples of use

  • Optical, electrical and automobile workshops

    Laboratories Formula 1

    Prototype construction

    Repairs

    Manufacturing small lot sizes

Drive shaft

Drive shaft made of steel

Flange

Flange made of steel

Connecting sleeve

Connecting sleeve made of steel

Versions

EMCOMAT 20D

Options/Accessories

Fixed steady rest

For a precise machining of even long workpieces, various steady rests are available, additionally to the tailstock.

Machine drawer

A wide variety of tool holders and other machine parts can be stored in the machine drawer.

4-position tool turret

The 4-position turret on the tailstock expands the numerous machining capabilities and speeds up the machining process.

Machine lamp

Lights table and workpiece and eases precise working.

Additional machine door

The sliding machine door allows for protection against chips and optimal accessibility to the work area at the same time.

Fast-change tool holder

To speed up the machining process, there are several tool holding systems available. This ensures that tools can be changed quickly.

Software/Control

EMCO 3 axes position display (turning)

The EMCO 3 axes position display showing the X, Z and Zo axis permanently on the TFT screen. The registration of the axes positions is done via linear scales or encoder, respectively, with an accuracy of 0.001 mm. Functions: permanent display of X/Z/Zo, constant cutting speed, 999 tools, 999 reference points, home position, remaining travel, imperial/metric, radius/diameter display, single or total display for Z and Zo. Languages: German, English, Spanish, Italian, Dutch, French, Czech. Screen size 6.5“ color TFT, 640 x 480 resolution (VGA)
The newest version of the respective software can be downloaded here. For more information about the EMCO 3 axes positioning display, click here.

Show details Hide details

Download

Universal_manual_lathe_turning_EMCOMAT_14_17.pdf

16.12.2021
Preview Download

Tornio_EMCOMAT_14_17_20_TA_03.pdf

16.12.2021
Preview Download

Stroj_EMCOMAT_14_17_20_CZ_01.pdf

16.12.2021
Preview Download

Torno_EMCOMAT_14_17_20_ES_03.pdf

16.12.2021
Preview Download

Tourner_EMCOMAT_14_17_20_FR_01.pdf

16.12.2021
Preview Download

Stanok_EMCOMAT_14_17_20_RU_03.pdf

16.12.2021
Preview Download

Emco-Case_Haidlmair_EN_6s_screen.pdf

16.12.2021
Preview Download

Emco-Case_Haidlmair_CZ_6s_screen.pdf

10.01.2022
Preview Download

Technical data

Work area
Travel in X/Y/Z 220 / - / 1010 mm
Distance between centers 1000 mm
Distance above centers 200 mm
Main spindle
Max. speed 3000 rpm
Spindle nose DIN 55029
Max. drive power 5.3 kW
Tailstock
Quill diameter 50 mm
Inner cone MT3
Quill travel 120 mm
General data
Dimensions (LxWxH) 1650/1950 x 1060 x 1635 mm
Machine weight 865 kg
