EMCO UNIVERSALTURN 50 – Universal lathe, precise and powerful!
New, completely revised modular system and basic design
Outstanding basic stability
Optimal vibration damping
Maximum cutting efficiency
High flexibility
Ergonomic design
Maximum precision
→ Top-quality universal turning, drilling, and milling – even for batch sizes of 1

Technical data

Work area

Travel in X/Y/Z 175 / + 40 - 40 / 510 mm
Bar diameter 50 / 50,8 mm
Spindle bore hole 59 mm
Max. turning diameter 200 mm
Swing over bed 430 mm
Rapid motion speeds in X/Y/Z 24 / 10 / 30 / 30 m/min (X/Y/Z/Z2)
Feed force in X/Y/Z 4000 / 4000 / 6000 N

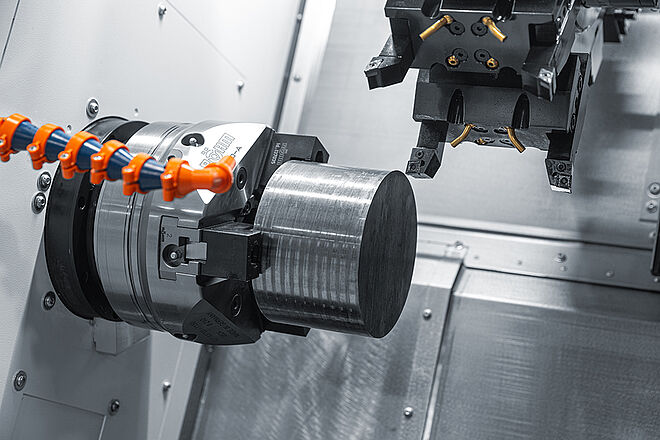

Main spindle

Max. speed 6,200 rpm
Spindle nose DIN 55026 KK5
Max. torque 71 / 143 Nm (belt drive M+MY) /105 / 147 Nm (direct drive SMY)

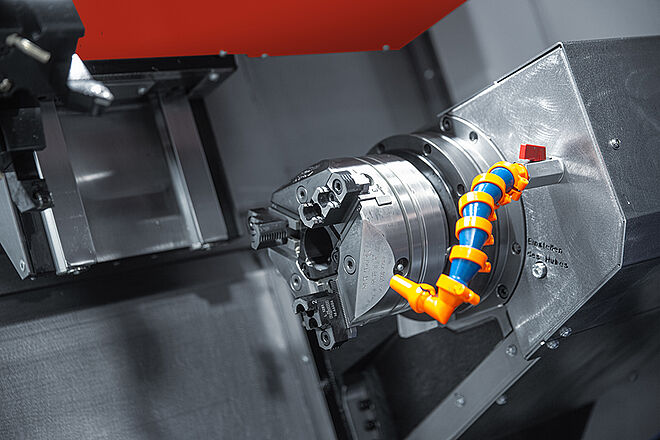

Counter spindle

Max. speed 6,200 rpm
Spindle nose DIN 55026 KK5
Max. torque 105 / 147 Nm (direct drive SMY)

Tool turret

VDI size VDI 30 (M+MY)
Number of tools 12
Driven tools 6
Max. speed 5,000 rpm
Max. drive power 4 kW
Max. torque 16 Nm

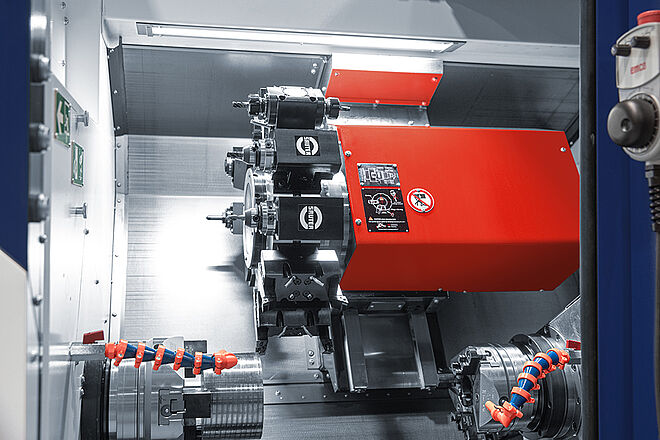

Tool turret 2

VDI size BMT45P
Number of tools 12
Driven tools 12
Max. speed 0-12,000 rpm
Max. drive power 8.8 kW
Max. torque 21 Nm

General data

Dimensions (LxWxH) 3320 x 2350 x 2100 mm (M+MY) / 3500 x 2600 x 2100 (SMY)

Highlights

  • High-precision turning centre for efficient complete machining of bars up to 51 mm bore

  • Integrated Y-axis for extended milling and maximum machining versatility

  • Highly dynamic drive systems for fast machining cycles and maximum accuracy

  • Compact counter spindle for precise rear-side machining without additional re-clamping

  • Powerful tool turret with up to 12 driven tool positions

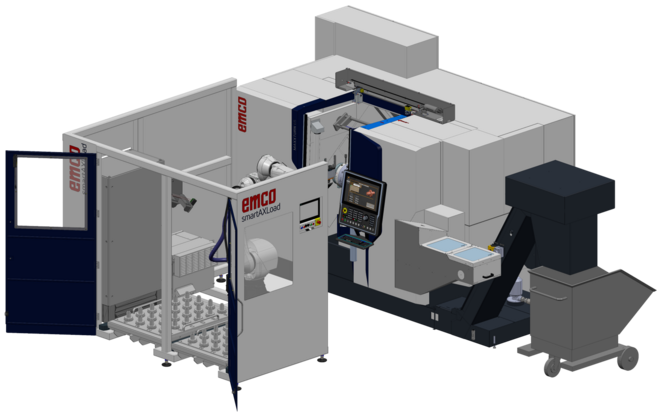

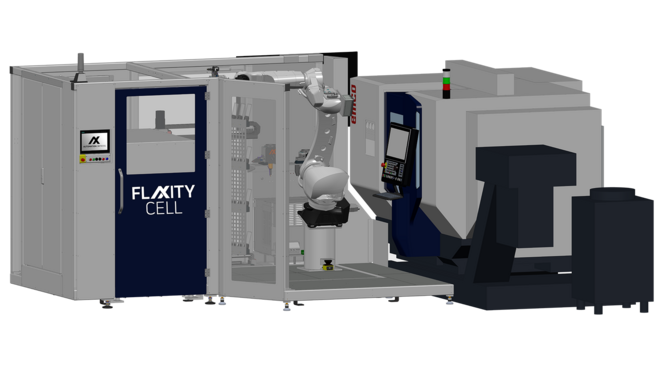

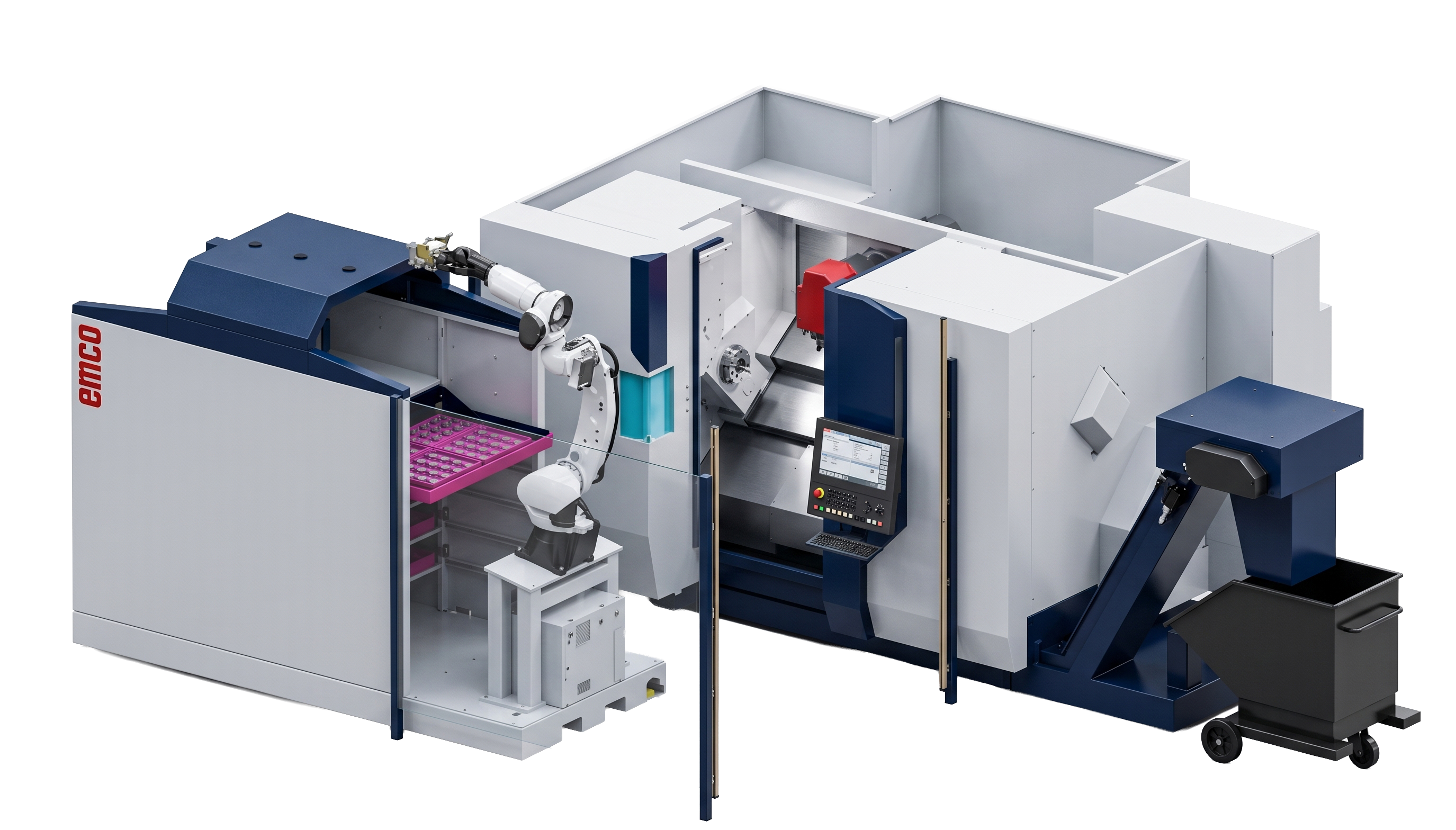

  • Scalable automation solutions – from integrated swivel loaders to gantry systems

  • Stable cast machine bed for maximum rigidity, damping and process reliability

  • Absolute measuring system for maximum repeat accuracy without reference point homing

  • Intuitive operation with SINUMERIK ONE – optionally available with FANUC 0i plus control from 2026

  • Perfectly coordinated machine concept for applications in mechanical engineering, automotive, medical technology, defence and more

  • Made in the Heart of Europe

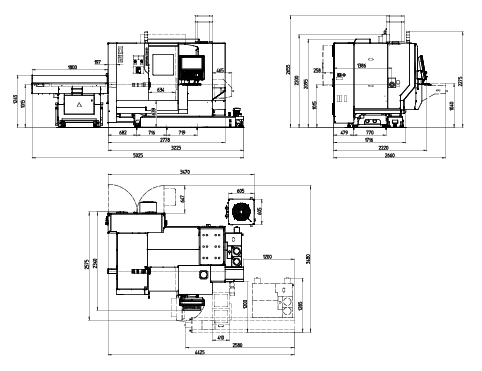

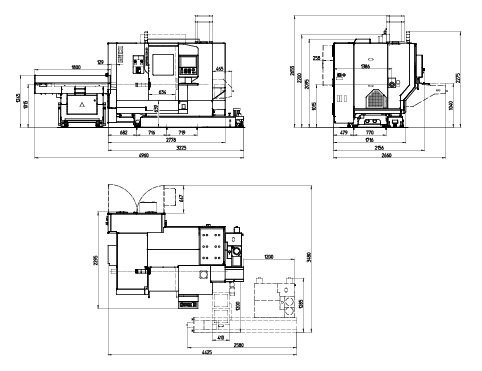

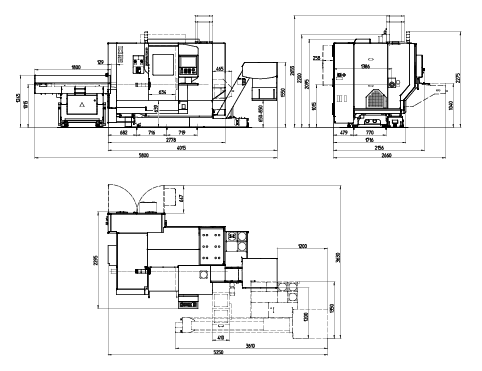

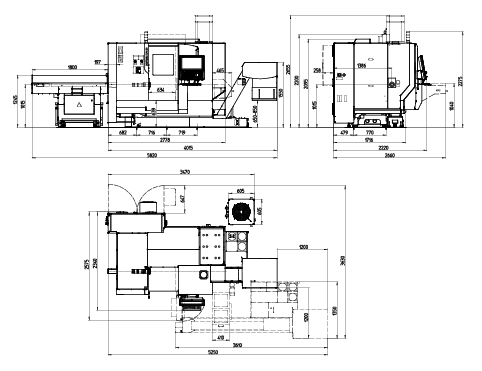

Overall dimensions/Work space

View image
View image
View image
View image

Versions

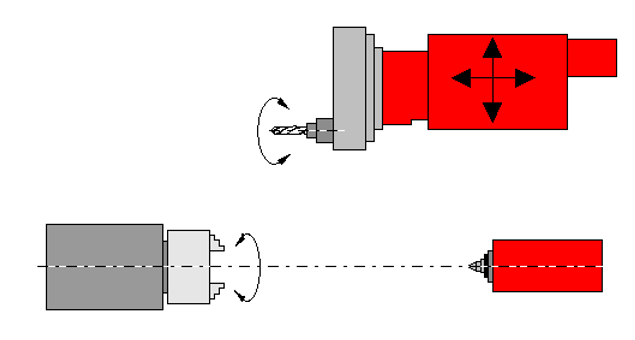

UNIVERSALTURN 50 M

The ideal solution for precise turning and simple drilling/milling operations.
View image

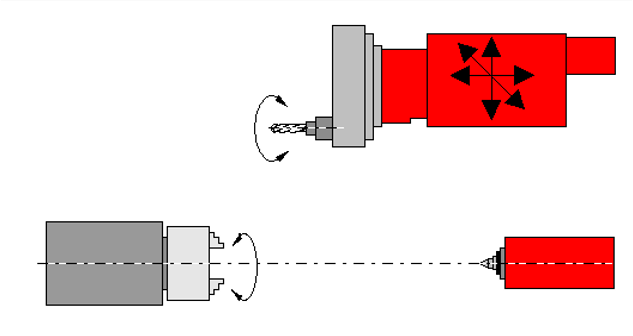

UNIVERSALTURN 50 MY

Additionally equipped with integrated 60° Yaxis for even greater flexibility and extended milling applications.
View image

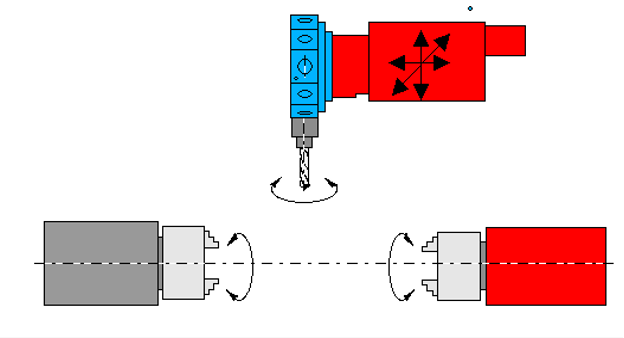

UNIVERSALTURN 50 SMY

The top-of-the-range model with direct drives on the main and counter spindles, BMT turret with direct drive and a Y-axis for demanding complete machining in a single operation.
View image

Software/Control

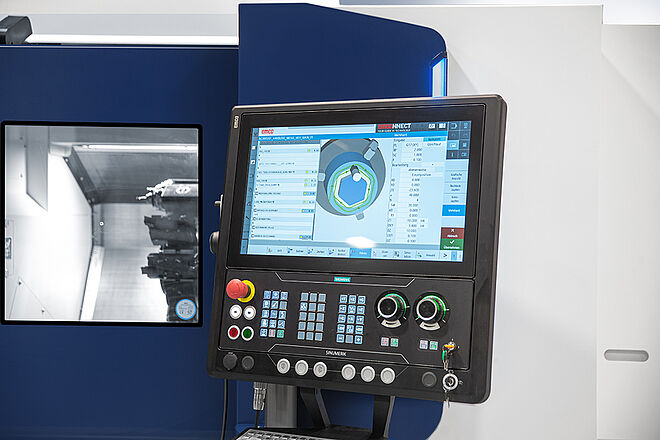

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details

Download

Universal-turning-center_Universalturn_50.pdf 29.07.2025
