Concept Turn 260
Concept Turn 260

Concept Turn 260


Integrated industrial PC with network and USB interface (front)
Thermostable head stock with high drive power and C axis
12 x tool magazine with up to 6 driven tools
Synchronized main spindle C axis with up to 1000 rpm
Programmable part collecting device
Various clamping device and tool holder packages
Easy2control user interface with 21,5" touchscreen
State of the art drive technology, servomotors with absolut encoders
DNC-Robotic Interface
Safety technology CE compliant

Technical data

Work area
Travel in X/Y/Z 100/-/300 mm
Bar diameter 25.4 mm
Max. turning diameter 85 mm
Max. part length with tailstock 255 mm
Swing over bed 250 mm
Tool cross-section for outer machining 12 x 12 mm
Tool cross-section for inner machining Ø 16
Rapid motion speeds in X/Y/Z 15 / - / 24 m/min
Work feed X/Y/Z 0 - 12 m/min
Feed force in X/Y/Z 3000 / - / 3500 N
Main spindle
Max. speed 6300 rpm
Spindle nose Ø 70 h5
Max. drive power 5.5 kW
Max. torque 35 Nm
Quill travel 120 mm
Tool turret
Number of tools 12 / VDI 16
Driven tools 6
Max. speed 6000 rpm
Max. drive power 1,2 kW
Max. torque 4 Nm
General data
Dimensions (LxWxH) 1700 x 1270 x 1820 mm
Machine weight 1100 kg


  • Integrated industrial PC with 21,5" touchscreen (MOC-Touch)

  • Easy2control user interface

  • Interchangeable controls (WinNC)

  • Stable, industry-standard gray cast iron construction

  • Various clamping devices and tool holder packages

  • MOC: integrated PC

  • High machining precision

  • Bar-stock diameter 25 mm: with bar-stock loader ideal for small part production

  • Digital drives with high driven power

  • Extraordinary dynamics

  • Thermostability for highest precision and contour fidelity

  • Driven tools with high machining power for drilling, thread and milling operations

  • Many automation possibilities

Machine control panel with industrial touchscreen

Machine control panel with 16: 9 industrial touchscreen - 21.5 '' screen diagonal and Easy2control user interface.

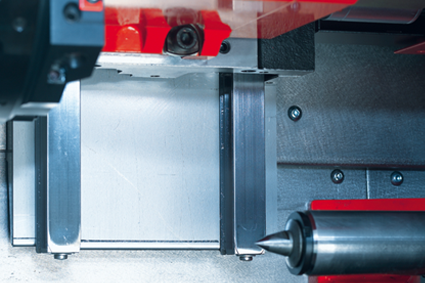

Roller guides in the X and Z axes

High machining accuracy

Bar machining

Power chuck

Overall dimensions/Work space

Machine layout Concept TURN 260


Examples of use

  • Productive training
  • Technical training projects
  • Productive training about machining and mold construction
  • FMS / CIM systems
  • General tool and machine engineering
  • Mold construction
  • Jewel industry

Application examples

Application examples


Fitting made of stainless steel


Ring made of gold

Tensile test

Tensile test made of brass

Valve cap

Valve cap made of stainless steel


Concept TURN 260

Concept TURN 260 T “Turn”

with clamping cylinder and pneumatic
without tailstock
without driven tools
without C axis

Concept TURN 260 TC “Turn Center”

with clamping cylinder, pneumatic and tailstock
without driven tools
without C axis

Concept TURN 260 TCM “Turn Center Mill”

With driven tools, tailstock, clamping cylinder, pneumatic and with C-axis

Concept Turn 260 B

without clamping cylinder and without pneumatic


Parts catcher

Pneumatically operated parts catcher for the gentle unloading of the finished parts. The finished parts fall into a collecting box below the main spindle.

Chip conveyer

Chain feeding system with a dump-height of 1200 mm, suitable for: long steel shavings, snarl and wool chips for dry and wet machining

Pneumatic tailstock

The workpiece is supported automatically by a pneumatically operated quill with a stroke of 120 mm

High-pressure coolant pump

A high-pressure coolant pump with 10 bar assures a better cooling and a better chip fall.

Diverse clamping devices for tools

Among others 3 jaw turn chucks with 100 mm diameter, flanges, manual clamping jaws, soft top jaws, hard reversal jaws, collets and chucks are available.

Various tool holder packages

Radial holder, drilling holder, drilling bar holder, plugs, various collet holders are available both for stationary or for driven tools.

Electronic hand wheel

For moving the machine’s axes manually.


Finished part conveyor

Conveyor belt to transfer the finished parts out of the machine. (includes coolant reflow). Can be installed instead of the finished part bin on the right side of the machine. This ensures a collision-free transfer of the parts.

Integration into FMS and CIM systems

The robotics interface can not only control the periphal equipment (such as automatic door, vice, etc.) but also connect the machine to other machines or devices (e.g. loading and unloading robots). The DNC interface allows programs to be transferred and started from the master computer.

Automatic door

The chip protection door can be opened and closed program-controlled or by pressing a button via a pneumatic cylinder. The door position is monitored using limit switches.

EMCO LM1200 Short bar loader

The loading magazine for hollow clamps is particularly characterized by its compact footprint and ease of use.
