Universal Machining Center UMILL 630
Universal Machining Center UMILL 630

Universal Machining Center UMILL 630

EQUIPMENT

Universal Machining Center with motor-spindle 15000 rpm
Tool changer with 30 (optional 60/90) tool stations
Universal Milling Machine with Siemens- or Heidenhain control
EMCONNECT - Digital Process-Assistent (Sinumerik ONE)

Technical data

Work area
Travel in X/Y/Z 500/460/450 mm
Distance spindle nose 150/600 mm
Rapid motion speeds in X/Y/Z 50/50/50 m/min
Feed force in X/Y/Z 5000/5000/5000 N
Table 630x500 mm
Max. table load 200 kg
Motor spindle
Max. speed 50-15000 U/min
Drive power 26 kW
Max. Torque 110 Nm
Tool turret
Number of tools 30 (60/90)
General data
Dimensions (LxWxH) 2570x3680x2900 mm
Machine weight 6800 kg

Highlights

  • 5-axis simultaneous machining

  • Universal Machining Center with top thermostability

  • Top machining precision

  • Universal Milling Machine with modern moving column concept for optimal accessibility

  • Solid swivel-rotary table with torque motors, direct measuring systems and front support, dimensions 630 x 500 mm provides high stability and precision

  • Wide swivelling range +/- 100°

  • Standard linear scales in X-Y-Z

  • Cutting-edge control technology from Siemens or Heidenhain

  • Digital process assistent EMCONNECT available for Sinumerik One

  • Optimal chip removal

  • Made in the Heart of Europe

Swivel-rotary table with torque motors on the C-axis

Swivel-rotary table with torque motors on the C-axis

Direct Drives

Direct Drives

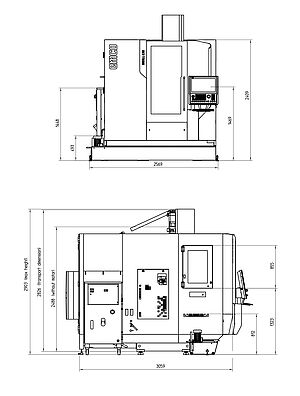

Overall dimensions/Work space

Installation plan

Installation plan

Installation plan

Installation plan

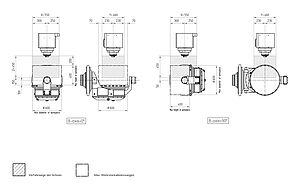

Work area

Work area

Workpieces

Software/Control

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
EMCONNECT - Digital Process Assistant

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).

Show details Hide details
Heidenhain TNC 640

TNC 640 Heidenhain offers besides the milling operations also combined milling and turning operations. It is particularly suitable for Mill-Turn, HSC- and 5 axis operations at machines up to 18 axes.

Details:

  • 19'' TFT colour display
  • Optimised user interface
  • Interactive fast choice of functions
  • Numerous machining cycles
  • Innovative graphic simulation
  • Improved motion control and short block processing time

Show details Hide details

Download

Universal-Milling-Machine-UMILL-630.pdf

08.02.2024
Preview Download

Frezarka_uniwersalna_UMILL_630.pdf

08.02.2024
Preview Download

EMCONNECT_Your_guide_in_technology.pdf

08.09.2023
Preview Download

EMCO_Medical_Technology_01.pdf

25.11.2022
Preview Download

Lekarska_Technologie.pdf

25.11.2022
Preview Download

Technologie_Medical_01.pdf

25.11.2022
Preview Download
