Emcomat E-200 MC
Emcomat E-200 MC

Emcomat E-200 MC


Mounted ball screws in X and Z axis
Sinumerik 828D
Coolant device
Manual tailstock
Fully covered work area with 2 sliding chip protection doors
Electric central lubrication

Technical data

Work area
Travel in X/Y/Z 220/-/900 mm
Spindle bore hole 53/50 mm
Distance between centers 1000 mm
Distance above centers 200 mm
Rapid motion speeds in X/Y/Z 10 m/min
Feed force in X/Y/Z 4 kN
Main spindle
Max. speed 4000 rpm
Spindle nose Size 5; DIN 55029
Max. drive power 7.5 / 10 kW
Max. torque 108 Nm
Quill diameter 50 mm
Quill travel 120 mm
Inner quill taper MT3
General data
Dimensions (LxWxH) 2495 x 1730 x 1700 mm
Machine weight 1500 kg


  • High cutting power

  • High quality casting with strong ribs for low-vibration machining operations

  • Fully automatic central lubrication of the X and Z slides and the recirculation ball spindles

  • Electronic handwheels are available for manual operation of X and Z axis

  • Made in the Heart of Europe

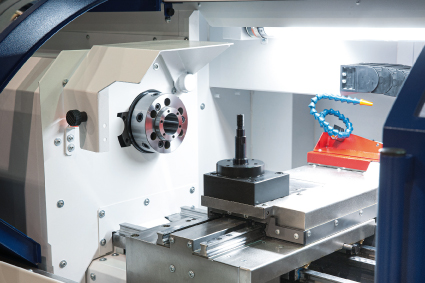

Work area

During machining in automatic mode the work area is closed by two slideable chip protection doors. When using the manual mode machining with opened doors is possible.

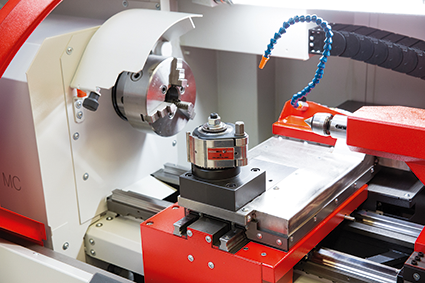

Optional equipment

EMCOMAT E-200 MC can be fitted with various chucks and tool holder systems.

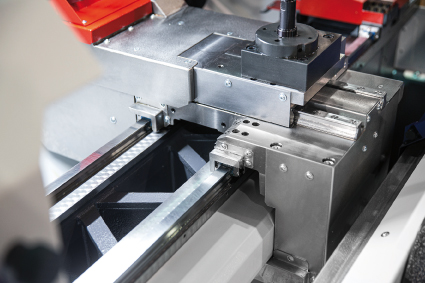

Linear guides

Soid and hardened linear guides in both axis.

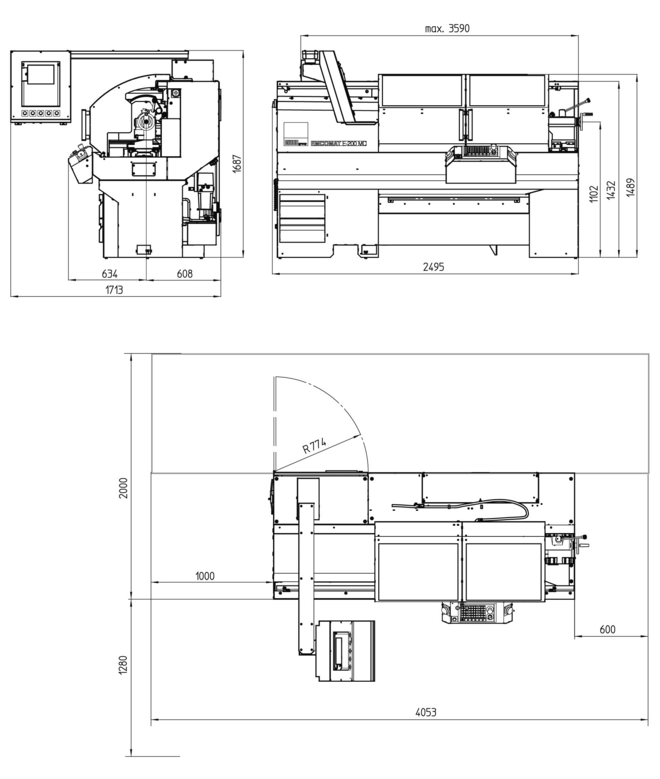

Overall dimensions/Work space

Machine layout E-200 MC

Machine layout E-200 MC


Examples of use

  • Industrial production of prototypes
  • Individual components and small lot sizes
  • Tool construction
  • Mold and die production
  • Repair services
  • Prototype construction
  • Training for CNC machining professions

Connecting sleeve (Steel)

Connecting sleeve (Steel)

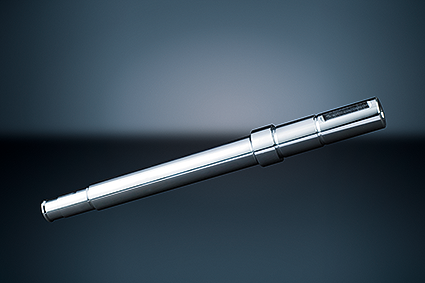

Drive shaft (Steel)

Drive shaft (Steel)

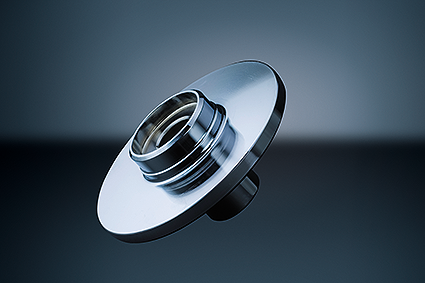

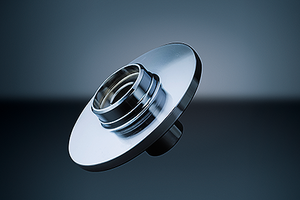

Flange (Steel)

Flange (Steel)


Sinumerik 828D - incl. ShopTurn

High performance CNC control for ultimate accuracy and machining speed. SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art turning machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopTurn machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to powerful kinematic transformations and a large set of technological cycles, SINUMERIK 828D also meets the demands of high sophisticated machine applications with driven tools and sub-spindle. Source picture and text: Siemens
