Emcomat FB-600 MC
Emcomat FB-600 MC

Emcomat FB-600 MC

EQUIPMENT

Swivel-mounted control panel
Reversible main spindle
Covers eliminate the risk of injuries
Shafts and gears hardened and ground
Linear guides
Main motor with spindle brake
Milling spindle supported radially and axially in four bearings
Sinumerik 828D or Heidenhain TNC 620

Technical data

Work area
Travel in X/Y/Z 600/400/400 mm
Distance spindle nose 230-630 mm (Horizontal milling spindle)
Rapid motion speeds in X/Y/Z 5000 mm/min
Work feed X/Y/Z 10-2000 mm/min
Feed force in X/Y/Z 10/10/15 kN
Clamping area 800x400 (rigid angle table)
Max. table load 300 kg (rigid angle table)
Vertical milling head
Speed range 10-5000 U/min
Power 13 kW
General data
Dimensions (LxWxH) 2100x2190x1990 mm
Machine weight 2370 kg

Highlights

  • Compact, vibration-free cast iron machine stand

  • Swiveling vertical milling head

  • Mechanical safety handwheels with scale ring

  • Automated stepless feed in X, Y and Z axes

  • Coolant device

  • Linear guides in X/Y/Z

Changeover to horizontal milling

Horizontal milling spindle DIN 69871 SK 40

Swiveling device

Swivel-mounted vertical milling head. Controlled by end switch.

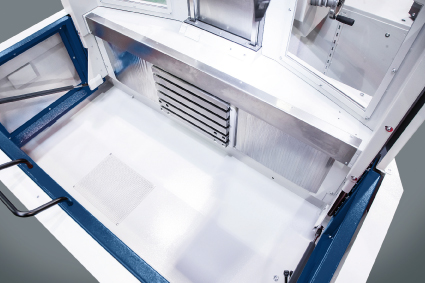

Retractable workspace

Retractable workspace guard with vertical clamping area.

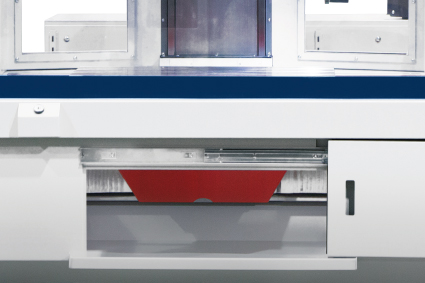

Chip shield

A large chip shield at the front of the machine allows for trouble-free chip disposal

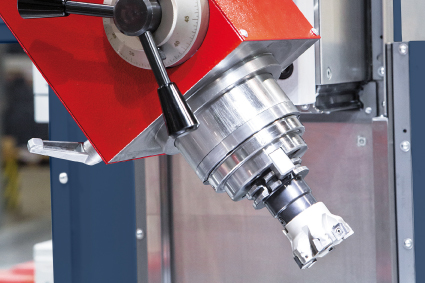

Swivel-Mounted Vertical Milling Head

Swiveling vertical milling head with quill function for manual Drilling operations. A swivel range of +/-90° allows to easily perform even difficult machining operations.

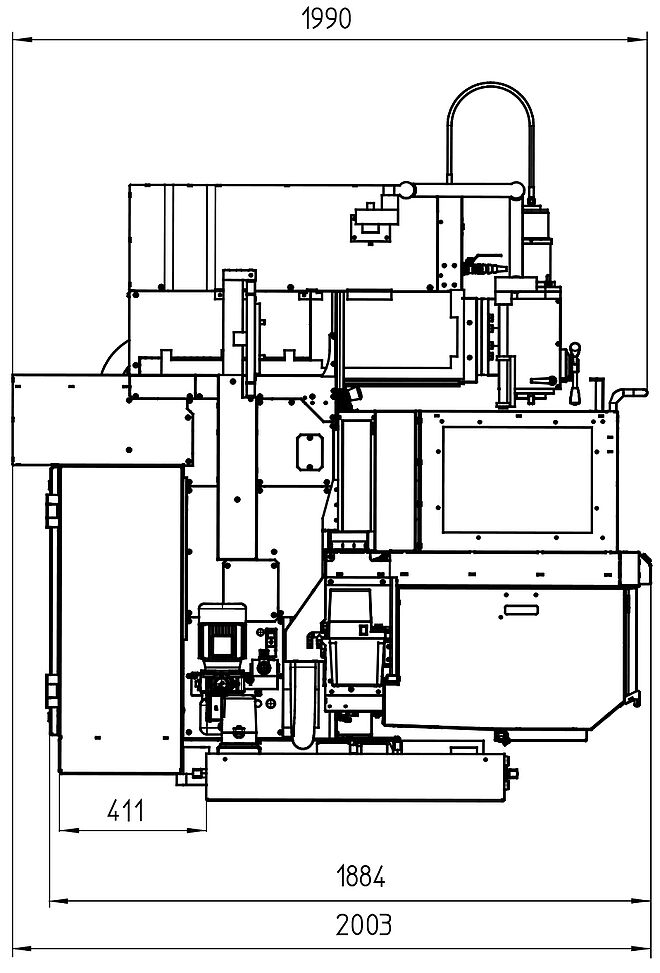

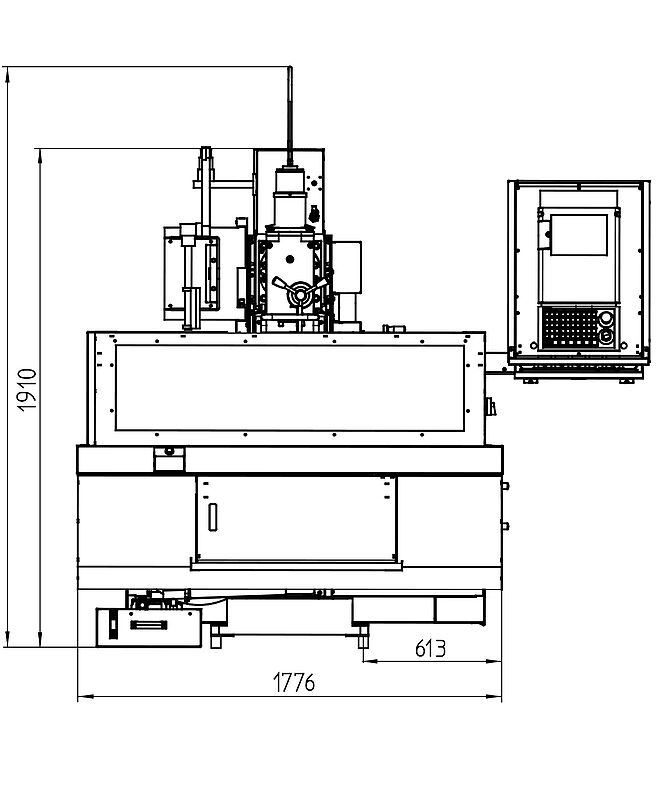

Overall dimensions/Work space

Workpieces

Examples of use

  • For production-oriented users
  • For manufacturing heavy workpieces
  • Tool and mould making
  • Apparatus and prototype construction
  • Small series production
  • Education and training

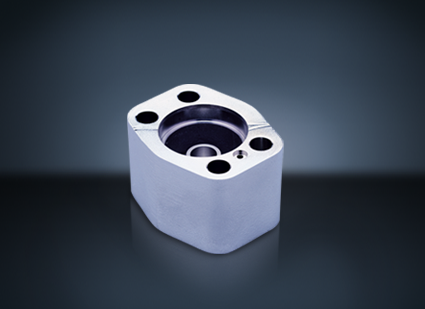

Distributor

Distributor (brass)

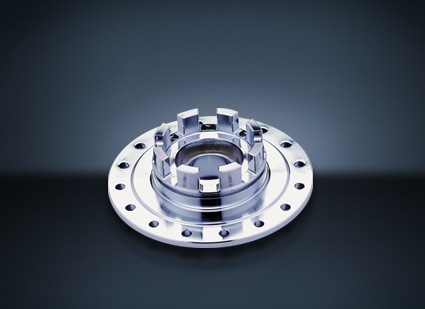

Wheel Hub

Wheel Hub (steel)

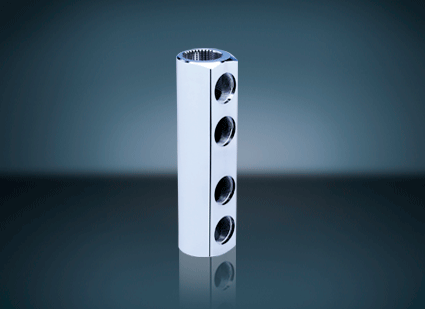

Plunger

Plunger (steel)

Options/Accessories

Safety cover

More safety during the machining process due to the cover mounted on the hinged bracket.

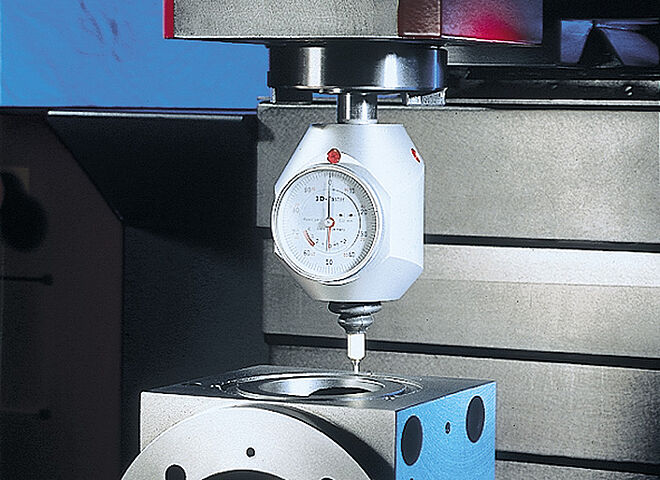

Various measuring devices

Measuring sensor in order to control the positions of the compound slide rest and of the clamping table.

Software/Control

Sinumerik 828D with Manueller Maschine

The Manual Machine operating area provides you with machining capabilities as for a cycle milling machine. All important machining
actions can be performed without an associated part program
needing to be created.
The following functions are available:

  • Measure tool
  • Traverse axes
  • Set zero offset (ZO)
  • Drill, such as centered drilling, centering, deep-hole drilling
  • Mill, such as face milling, pocket milling, multi-edge stud milling
  • Mill contour

User-friendly input screens with help screens and animated elements are available for parameterizing the cycles.

Show details Hide details
[Translate to en:]
Heidenhain TNC 620

With 19" screen for multi-touch operation.
Is a compact, versatile contouring control with three controlled axes and one controlled spindle.

  • Programme input with HEIDENHAIN conversational programming and according to DIN/ISO
  • Radius/length tool compensation in several tool charts
  • Contour elements and free contour programming
  • Drilling cycles: tapping, deep drilling, grating, lowering etc.
  • Milling cycles: pockets, notches, contouring, multi-pass milling, thread milling, etc.
  • Coordinate transformation
  • Programming assistance
  • Teach-in
  • Touch probe cycles

Show details Hide details
