Concept Turn 60

Concept Turn 60
Symbolic picture

Concept Turn 60

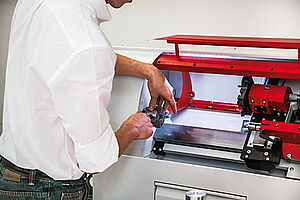

EQUIPMENT

Clockwise - counterclockwise spindle rotation
Automatic referencing
Constant cutting speed
Industry-standard, stable gray cast iron construction
Backlash-free storage of the work spindle in precise, life tapered roller bearings
Micro processor-controlled monitoring position
Optimum guide ratio for the slides for maximum stability and precision
Fully covered work area

Highlights

  • Most compact table-top CNC turning machine
  • Industry-standard, stable, gray cast-iron inclined-bed construction
  • Clockwise/counterclockwise spindle rotation
  • Profile rail guides (linear guides)
  • Premium industrial components
  • Safety technology according to the latest lathes standard
  • Infinitely adjustable main drive
  • Automatic 8-position tool turret
  • Automatic refrencing
  • High resolution axis motors
  • Made in the Heart of Europe

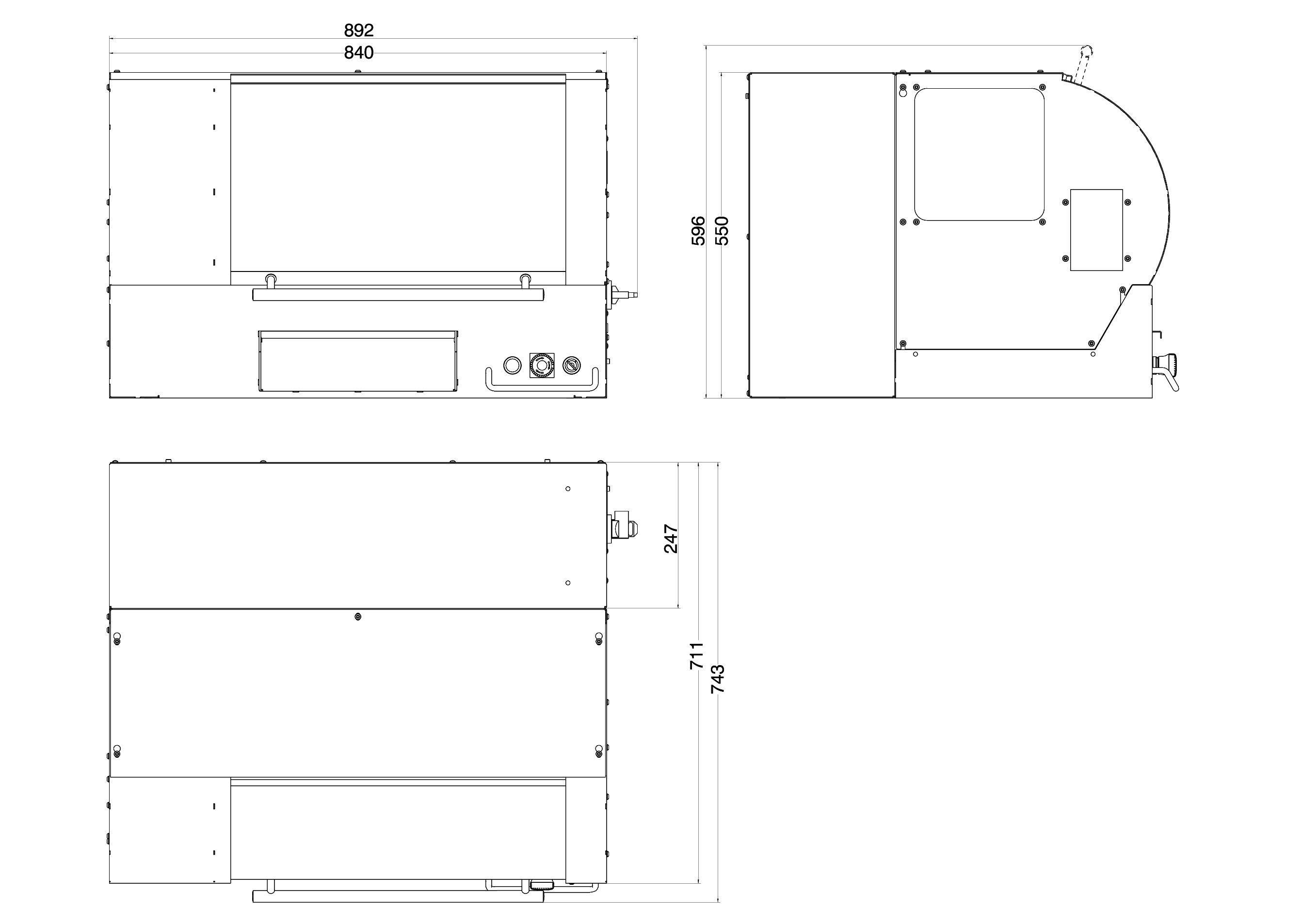

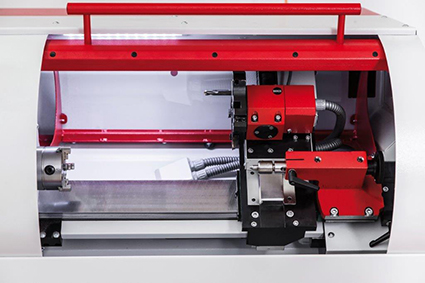

Overall dimensions/Work space

Machine layout Concept Turn 60

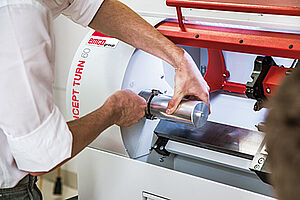

Workpieces

Examples of use

  • Plan turning
  • Straight turning
  • Contour turning
  • Infeed and casting
  • Thread cutting
  • Drilling

Round-head bolt

Round-head bolt

Options/Accessories

Manual Tailstock

The tailstock serves to support long workpieces by means of a centering point. Tailstock and centering tip are available as an option.

Quill stroke: 35 mm (1.4")
Quill diameter: 22 mm (0.9")
Internal taper: MT 1

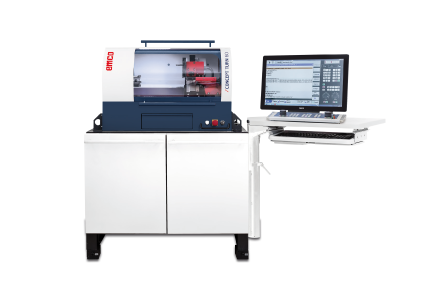

Machine base with swivel table

The machine base is equipped with a drawer for tools and other devices as well as a deposit for the PC tower.

Comprehensive selection of tools

e.g. roughing tool, copying tools, drill steel holder, inner chasing tool, various drillers and indexable inserts for various machining materials.

Electronic hand wheel

For moving the machine’s axes manually.

Automation

Pneumatic unit

The pneumatic unit serves as a preparation for the automatic air-conditioning system and the pneumatic chuck, which consists of a pneumatic full-load cylinder including 3-jaw power chuck and blow-out device.

Electromechanical tailstock

The electromechanical tailstock has a quill stroke of 120 mm and a end position control.

Automatic door

Thanks to the pneumatic unit the machine door opens and closes automatically or by pressing the button. The monitoring of the door position is done via end switch.

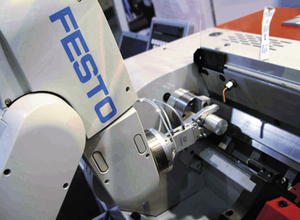

Integration into FMS and CIM systems using robotics and DNC interface

The robotics interface can not only control the peripheral equipment (such as automatic door, vice, etc.) but also connect the machine to other machines or devices (e.g. loading and unloading robots). The DNC interface allows programs to be started from the master computer.

Integration into FMS and CIM systems

The robotics interface can not only control the periphal equipment (such as automatic door, vice, etc.) but also connect the machine to other machines or devices (e.g. loading and unloading robots). The DNC interface allows programs to be started from the master computer.

Software/Control

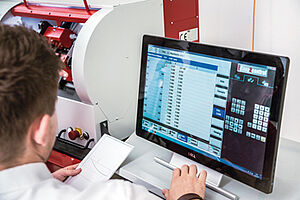

EMCO WinNC

The unique concept of the interchangeable control can be fitted to all Concept machines. In doing so, the user is trained on all CNC industry controls that are common to the market. Up to eight different control units can be installed and taught on one single machine at present.

The result: CNC technicians are flexible to work in a variety of settings.

Show details Hide details
EMCO Win3D-View

Win3D-View is a 3D simulation for turning and milling and is available as an option in addition to the WinNC Control. Graphic simulations of CNC controls are designed especially for industrial experience. Win3D-View displays exceed industry standards. Tools, blanks, clamping devices, and work processes are highly realistic. The system checks the programmed travel of the tool to prevent collision with clamping devices and blanks.

Show details Hide details
EMCO CAMConcept

CAMConcept is innovative software for complete CAD/CAM and CNC training, from design to manufacture. CAMConcept incorporates both the functions of a professional CAD/CAM system and the advantages of a special training program. All core CAD program functions are available. Graphic displays of CNC cycles allow quick programming, while simulations and collision checks ensure that control programming is safe.

Show details Hide details

Download

IndustrialTraining_Sammler_K_SP.pdf

16.12.2021
Preview Download

IndustrialTraining_Sammler_K_EN.pdf

10.01.2022
Preview Download

Technical data

Work area
Travel in X/Y/Z 60/-/280 mm
Bar diameter 15 mm
Max. part length with tailstock 60 mm
Swing over bed 130 mm
Tool cross-section for outer machining 12 x 12
Tool cross-section for inner machining Ø 10
Rapid motion speeds in X/Y/Z 3/-/3 m/min
Work feed X/Y/Z 0 - 2 m/min
Feed force in X/Y/Z 1000 N
Main spindle
Max. speed 300 - 4200 rpm
Spindle nose EMCO
Max. drive power 1,1 kW
Max. torque 10 Nm
Tailstock
Quill travel 35 mm
Tool turret
Number of tools 8
General data
Dimensions (LxWxH) 895 x 745 x 550 mm
