Hyperturn 65
Hyperturn 65

Hyperturn 65


2 spindles
3 tool turrets
Up to 36 driven tools at two or three tool turrets
Up to 3 independent Y axes
Automation with EMCO bar- or Gantry Loader
EMCONNECT – Digital Process Assistant (Siemens 840D sl)

Technical data

Work area
Travel in X/Y/Z z.B. HT 65 DT-1000: X1/X2:260/210, Z1/Z2/Z3:800/800/800, Y1/Y2:100(+/-50) mm
Bar diameter 65 (76,2/95) mm
Max. turning diameter 500 mm
Swing over bed 660 mm
Distance spindle nose 1050/1300 mm
Rapid motion speeds in X/Y/Z 30/12/30 m/min
Main spindle
Max. speed 0-5000 (4000/3500) U/min
Max. drive power 29 (37) kW
Max. torque 250 (360) Nm
Counter spindle
Max. speed 0-5000 (4000/3500) U/min
Max. drive power 29 kW
Max. torque 250 Nm
Tool turret
VDI size 30 (40)
Number of tools 2/3x12
Driven tools 2/3x12
Max. speed 0-5000 (4500) U/min
Max. drive power 6,7 kW
Max. torque 25 Nm
General data
Dimensions (LxWxH) 5060/5300 x 2850 x 2360 mm
Machine weight ca. 9500 kg


  • CNC turning milling center with 2 high performance and water cooled spindle motors

  • 2x / 3x 12-times turret with VDI 30 / 40 quickchange system

  • Optional with BMT-turrets and direct drive up to 12 000 rpm

  • 2 / 3 Y-axes for processing of complex turned/milled parts

  • Bar stock feed up to ø 95 mm

  • Optimum chip flow and user-friendly work area

  • Highest drive and control performance with Sinumerik ONE or FANUC 31iB

  • Made in the Heart of Europe


The HT65-Duoturn is available with two bed-lengths. One with a distance between spindles of 1050 mm and one with 1300 mm. If it is primarily the machining of short components, the shorter version is sufficient. If long shaft parts are to be machined, the long-bed version with turret steady rest or NC steady rest can be offered. Especially for shaft applications with deep internal machining, the longbed version offers plenty of space for operations. Both turrets are mounted face-to-face, so that long internal machining tools can be accommodated on both turrets.


The HT65-Tripleturn offers the largest work envelope in its class with a distance between spindles of 1300 mm and large X-axes strokes. So the machine can not only be used for bar processing but also to machine larger chucking components. Chucks up to a diameter of 250 mm can be used without limitations at the main and counter spindle. Also the power spectrum of the spindle motors offers sufficient capacity for the machining of larger chuck components.

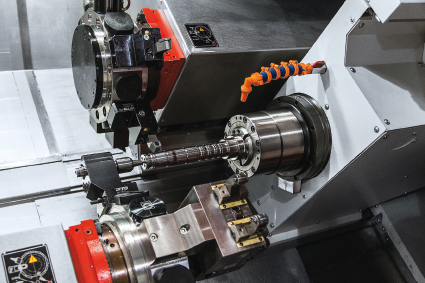

For the complete machining of shafts on the one hand in the main spindle and on the other hand in the counter spindle, a live center and, if required, a turret steady rest are available on the turret. This allows long, slim workpieces to be manufactured precisely and without chatter marks.


For shaft-type applications, the HYPERTURN 65 offers two tailstock-versions. On the one hand an universal, hydraulic movable tailstock for manually loaded machines and on the other hand an NC-tailstock for fully automatic loaded machines. With the advantage of very short idle times.


Several steady rests are available for shaft machining. Small shaft parts can be supported with a turret-mounted steady rest. A NC steady rest featuring a centring range from 25 to 280 mm is available for large shaft parts.


Thanks to the programmable clamping stroke control, the clamping positions of the two clamping cylinders can be easily taught in. As a consequence, handling works on the cylinders are no longer required. This leads in turn to shorter set-up times.

Overall dimensions/Work space

[Translate to en:] Aufstellplan HT 65 1300 TRIPLE TURN / DUOTURN

[Translate to en:] Aufstellplan HT 65 1300 TRIPLE TURN / DUOTURN

[Translate to en:] Aufstellplan HT 65 DUOTURN 1000

[Translate to en:] Aufstellplan HT 65 DUOTURN 1000

[Translate to en:] Arbeitsraum HT 65 DUOTURN 1000 VDI30

[Translate to en:] Arbeitsraum HT 65 DUOTURN 1000 VDI30

[Translate to en:] Arbeitsraum HT 65 DUOTURN 1000 VDI40

[Translate to en:] Arbeitsraum HT 65 DUOTURN 1000 VDI40

[Translate to en:] Arbeitsraum HT 65 1300 DUOTURN VDI30

[Translate to en:] Arbeitsraum HT 65 1300 DUOTURN VDI30

[Translate to en:] Arbeitsraum HT 65 DUOTURN 1300 VDI40

[Translate to en:] Arbeitsraum HT 65 DUOTURN 1300 VDI40

[Translate to en:] Arbeitsraum HT65 DT 1300 BMT55 SW330

[Translate to en:] Arbeitsraum HT 65 Triple Turn VDI30

[Translate to en:] Arbeitsraum HT 65 Triple Turn VDI30

[Translate to en:] Arbeitsraum HT 65 Triple Turn VDI40

[Translate to en:] Arbeitsraum HT 65 Triple Turn VDI40

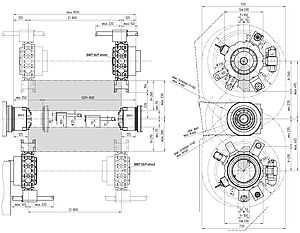

[Translate to en:] Arbeitsraum HT 65 DUOTURN 1000 BMT 55P

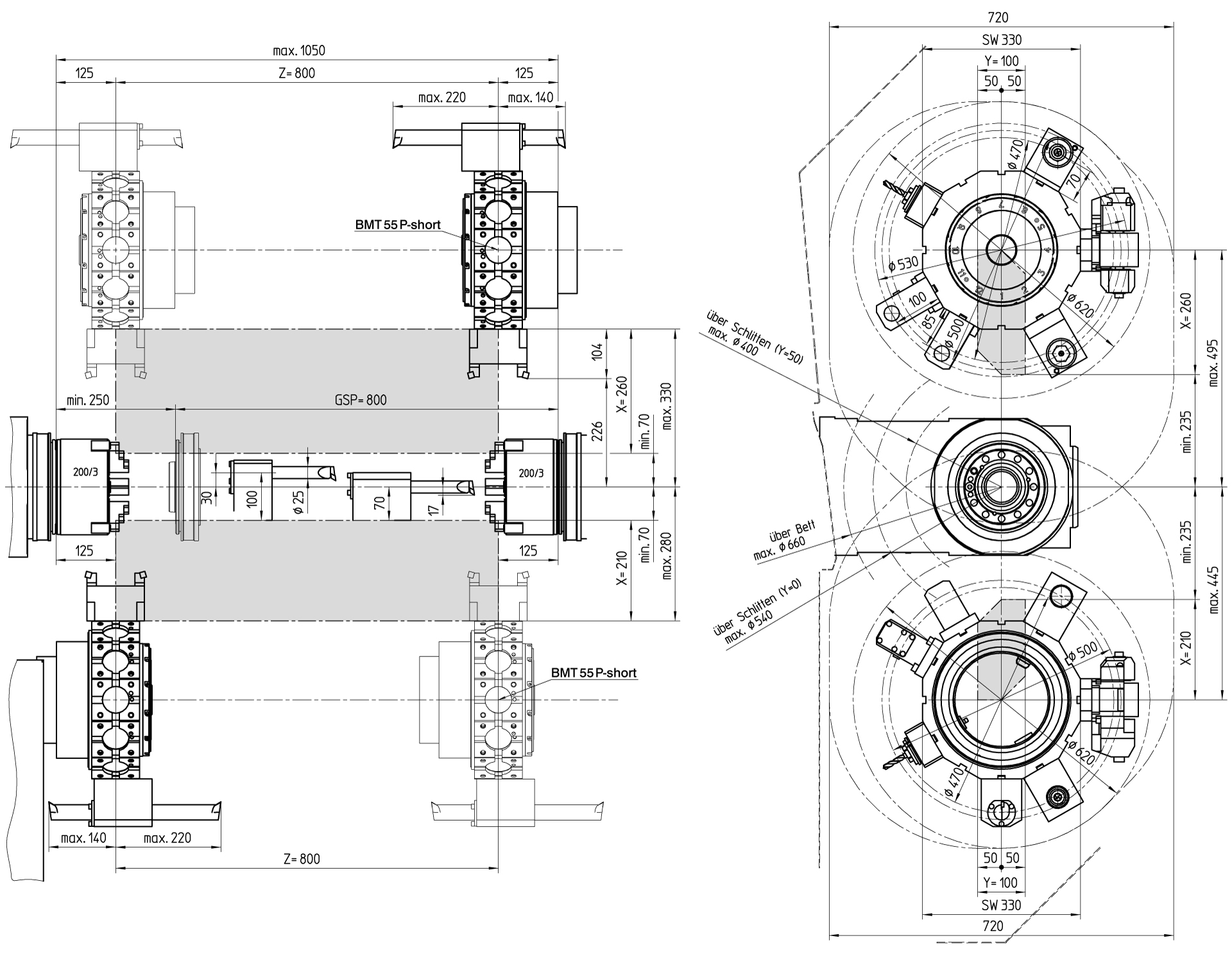

[Translate to en:] Arbeitsraum Hyperturn DUOTURN 1000 BMT 55P

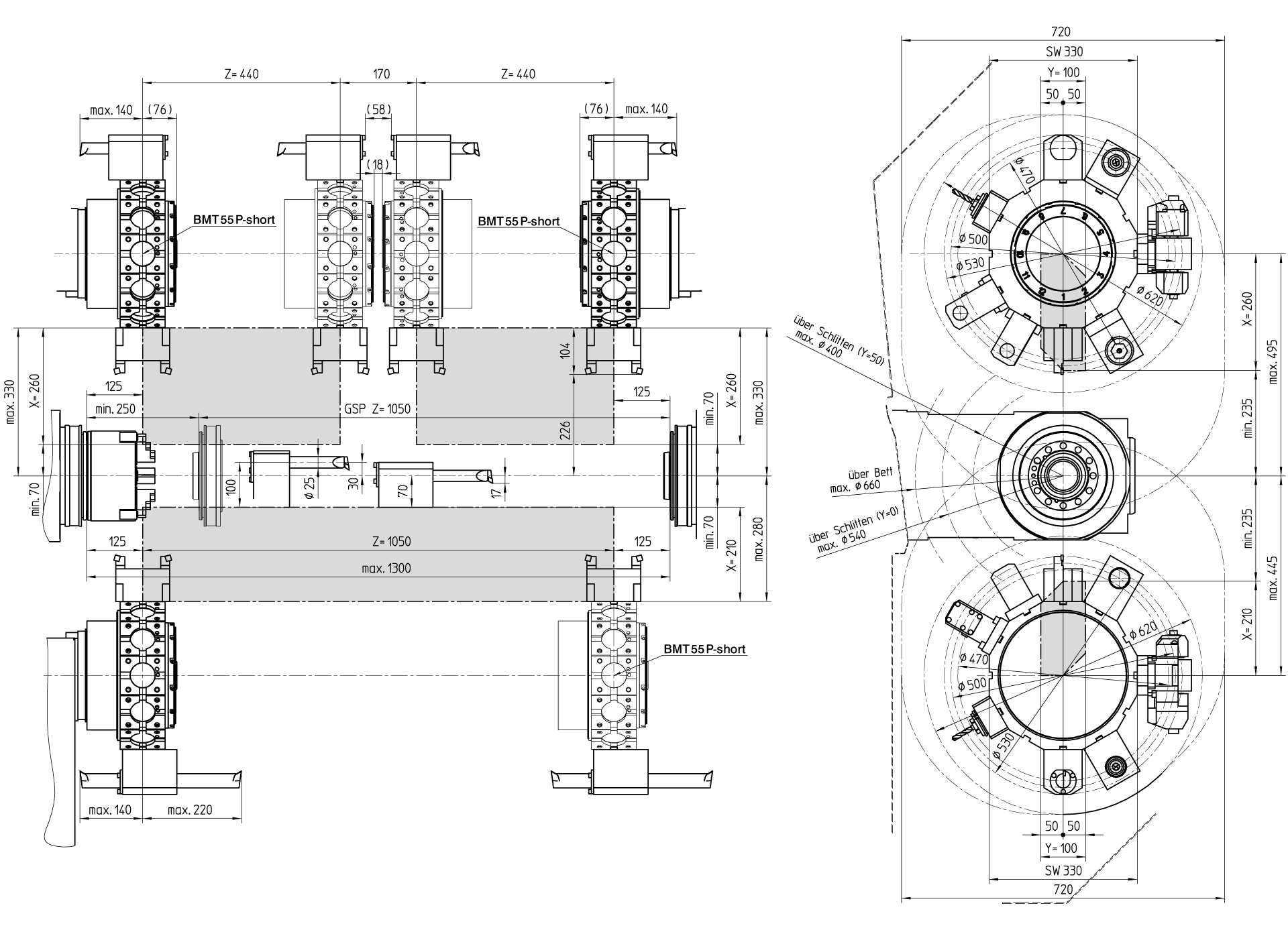

[Translate to en:] Arbeitsraum HT 65 TRIPLETURN BMT 55P

[Translate to en:] Arbeitsraum HT 65 TRIPLETURN BMT 55P



The optional spin window enables the optimal insight in the working area, also during machining with coolant. Due to its very fast rotating glass plate, the coolant is slung away immediately after impact and the window stays clear.


For economical production of complex turned/milled parts with
mainly milling share, there is optional the BMT-turret with water cooled direct drive.
With max. 12000 rpm, 30 Nm and 10 kW, this turret offers optimal prerequisites
for the complete machining.


The HYPERTURN 65’s electro-pneumatic parts catcher is controlled using M functions. When needed, it traverses to the front of the work
area and swivels to the spindle center. The finished part is removed from the clamping device and transferred to the catcher tray. The
parts catcher then moves back to its initial position and the part is deposited onto a conveyor belt.


Gantry Loader

Universal loading and unloading for preformed blanks and parts.

Using the multiple grippers and handling systems the gantry loader can be customized to your individual needs.

Turn / Mill Assist

Compact standard automation for small and medium-sized batches for turning and milling machines.

  • Reduction of working hours by up to 70%
  • Compact and space-saving solution
  • Graphically supported operation
  • Free access to the machine door
  • For small and medium-sized series
  • Very short configuration and setup times
  • No special knowledge about robots required
  • On-site installation and training

Short-bar loader EMCO SL 1200

The EMCO short-bar loader SL 1200 is the perfect solution for the automatic reloading of pre-cut bars up to 1200 mm.

The adavantage: small footprint and short loading times through shorter strokes.

The control unit is perfectly adapted to the interface of the machine.


Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.
