Universal Machining Center UMILL 1500

Universal Machining Center UMILL 1500

Universal Machining Center UMILL 1500

EQUIPMENT

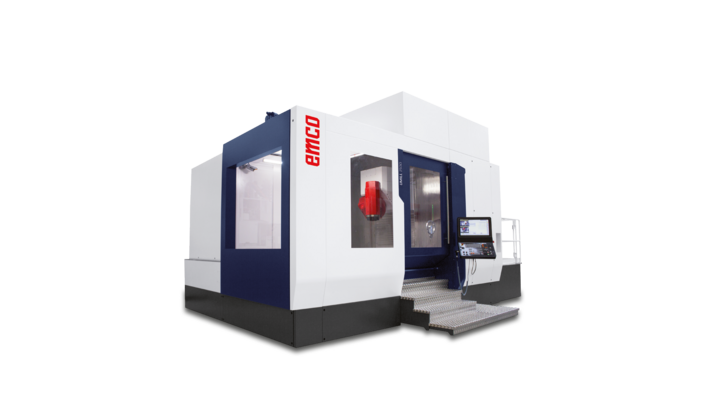

5-axis Gantry Milling Machine for milling and turning operations
Mechanical Milling head 12000 rpm – 38/48 kW (S1/S6), 600 / 750 Nm (S1/S6), HSK100-A
Milling head undercut 15°
Automatic tool changing system including up to 203 pockets

Technical data

Work area
Travel in X/Y/Z 1500 / 1500 / 1100 mm
Axes feed rate 60 m/min
Max. table load Rotary table-milling op. 4500 kg / milling + turning 3500 kg

Highlights

  • Universal Machining Center for Milling/turning operations in one setup for the complete machining of complex workpieces up to 4500 kg - Umill 1500, Ø 1600 mm, 1100 mm height
  • Milling head with 15° undercut
  • Gantry Milling Machine with axes travel: 1500 x 1500 x 1100 mm
  • Automatic tool changing system including up to 203 pockets

Overall dimensions/Work space

Machine Dimensions

Machine Dimensions

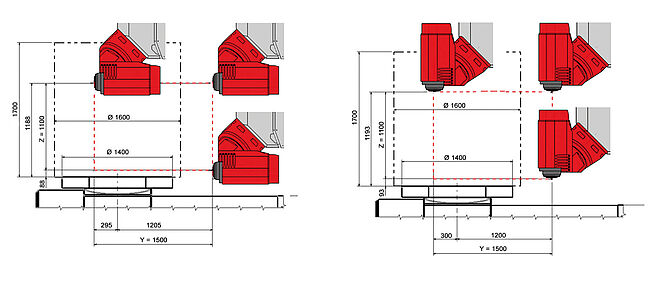

Work Area

Work Area

Work Area_2

Work Area_2

Milling heads

Electric spindle

Compact design with high-performance electric spindle. Continuously variable universal head offering high dynamics for simultaneous machining in connection with the NC rotary table.

Mechanical spindle

Powerful mechanical spindle with high torque and high rigidity for heavy-duty and multi-sided machining in one setup.

Software/Control

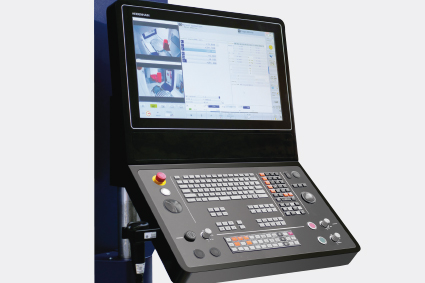

Heidenhain TNC 640 HSCI

The Heidenhain control unit is designed to simplify programming in the shop floor, providing an interactive programming environment, where the operator communicates with the control system through clear and easily comprehensible language.

The Heidenhain control unit is compatible with DIN/ISO programming standards.

Show details Hide details

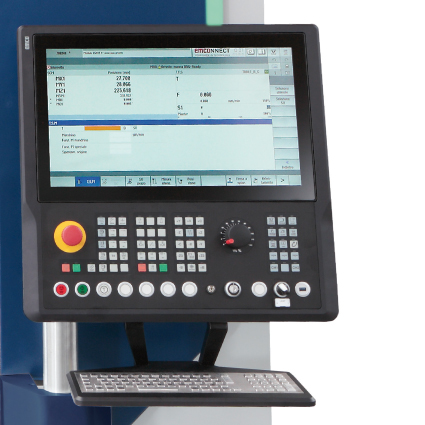

Siemens 840D sl for Mecof
