Emcoturn E25
Emcoturn E25

Emcoturn E25

EQUIPMENT

Main spindle with large speed range Tool turret with 12 VDI16 tool stations
Driven tools C axis for main spindle Manual tailstock with automatic quill
State-of-the-art drive and control technology Sinumerik 828D or Fanuc 0iTD with dialogue programming system

Technical data

Work area
Travel in X/Y/Z 100 / - / 300 mm
Bar diameter 25,5 mm
Max. turning diameter 85 mm
Swing over bed 250 mm
Distance between centers 405 mm
Rapid motion speeds in X/Y/Z 15/-/24 m/min
Main spindle
Max. speed 6300 rpm
Spindle nose ø70mm h5
Max. drive power 5,5 kW
Max. torque 35 Nm
Tailstock
Automatic tailstock nein
Travel (automatic) 200 mm
Quill travel 120 mm
Tool turret
VDI size 16
Number of tools 12
Driven tools 6
Max. speed 6000 rpm
Max. drive power 1,2 kW
Max. torque 4 Nm
General data
Dimensions (LxWxH) 1700 x 1270 x 1820 mm
Machine weight 1400 kg

Highlights

  • Extremely compact machine dimensions

  • Prestressed roller guideways in all axes

  • Dynamic servo motors for economic chipping

  • Precision Headstock with excellent concentricity properties

Roller guides

Roller guides

Bar stock diameter

Bar stock diameter

Turret

Turret

Overall dimensions/Work space

Work area E25 TC

Work area E25 TC

Work area E25 TCM

Work area E25 TCM

Machine layout E25

Machine layout E25

Workpieces

Examples of use

  • Hydraulic components
  • Pneumatic components
  • Medical engineering
  • Fixing systems
  • Materials engineering
  • etc.

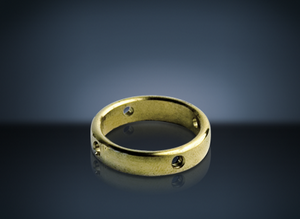

Ring

made of gold

Valve cap

made of stainless steel

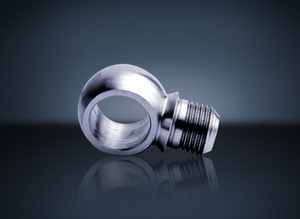

Plug

made of stainless steel

Fitting

made of stainless steel

Tensile test

made of brass

Versions

Emcoturn E25 T-FANUC

Flexible basis version - without driven tools and without tailstock

Emcoturn E25 TM-FANUC

incl. driven tools, C-axis, without tailstock

Emcoturn E25 TC-FANUC

without driven tools, with tailstock

Emcoturn E25 TCM-FANUC

incl. driven tools, C-axis and tailstock

Options/Accessories

Part catcher

Pneumatically operated precast catcher. The finished parts slip into a absorb box below the main spindle. Max finished part length: 120 mm Max finished part diameter: 25 mm Max finished part weight: 0.5 kg

Automatic door

Automatic door system especially for manual workpiece loading.

Chip conveyer E25

Chain feeding system with a dump-height of 500 mm, suitable for: long steel shavings, snarl and wool chips for dry and wet machining.

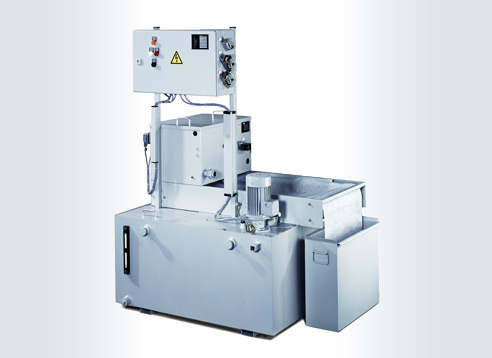

High pressure coolant system

High-pressure pump 6 bar including interface and software (50 Hz).

Tool holder packages

Different tool holder packages for stationary and driven tools.

Software/Control

Sinumerik 828D - incl. ShopTurn

High performance CNC control for ultimate accuracy and machining speed. SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art turning machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopTurn machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to powerful kinematic transformations and a large set of technological cycles, SINUMERIK 828D also meets the demands of high sophisticated machine applications with driven tools and sub-spindle. Source picture and text: Siemens

Show details Hide details
[Translate to en:]
Fanuc 0i TF
FANUC CNC Series 0i-Model TF is the ideal solution for compact high-end turning machines. Combining unbeatable value for money with unrivalled performance, accuracy and reliability. The easy to use and programmability are advantages of this compatible all-round CNC control.

  • Excellent value for money
  • High-speed and nano-smoothing machining
  • Fine surface technology combined with shortest cycle times
  • Benchmark in terms of productivity / availability
  • User-friendly MANUAL GUIDE i and 3-D Simulation
  • Completely compatible with older Fanuc CNCs
  • Same Operation, Programming and Maintenance as FANUC Series 3xi-B (seamless CNC)
  • More than 25 years spare parts availability

Show details Hide details
