CNC-Lathe S65
CNC-Lathe S65

CNC-Lathe S65

EQUIPMENT

Extremely solid machine bed,highest thermostability
Top processing precision
State-of-the-art control technology with Sinumerik 828D or
Fanuc Oi TD with ShopTurnand ManualGuide i
Made in the Heart of Europe

Technical data

Work area
Travel in X/Y/Z 210/ - / 610 mm
Bar diameter ø 65 mm
Max. turning diameter ø 310 mm
Swing over bed ø 540 mm
Distance between centers Spindle Nose-Center 680 mm
Main spindle
Max. speed 4200 rpm
Max. drive power 18 kW
Max. torque 192 Nm
Tool turret
Number of tools 12
Driven tools 12
Max. speed 5000 rpm
Max. drive power 5 kW
Max. torque 20 Nm
General data
Dimensions (LxWxH) 2855 x 1770 x 1880 mm
Machine weight 4300 kg

Highlights

Powerful driven tools at the face of the turret disc

Work are with tool measuring arm

Shaft machining between centers using a face-driver

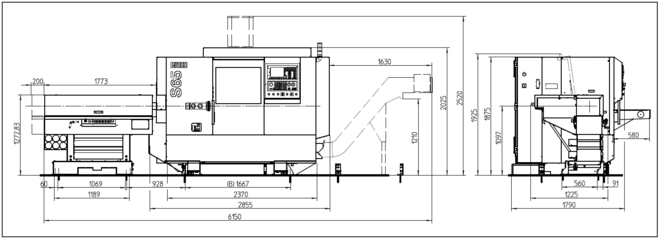

Overall dimensions/Work space

Machine Layout S65

Workpieces

Examples of use

  • General engineering
  • Hydraulic components
  • Pneumatic components
  • Medical engineering
  • Fixing systems
  • Materials technology
  • etc.

Fan wheel (brass MS58)

Bearing bolt with eccentric screw (Steel 42 Cr Mo 4)

Software/Control

Sinumerik 828D - incl. ShopTurn

High performance CNC control for ultimate accuracy and machining speed. SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art turning machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopTurn machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to powerful kinematic transformations and a large set of technological cycles, SINUMERIK 828D also meets the demands of high sophisticated machine applications with driven tools and sub-spindle. Source picture and text: Siemens

Show details Hide details
[Translate to en:]
Fanuc 0i TF
FANUC CNC Series 0i-Model TF is the ideal solution for compact high-end turning machines. Combining unbeatable value for money with unrivalled performance, accuracy and reliability. The easy to use and programmability are advantages of this compatible all-round CNC control.

  • Excellent value for money
  • High-speed and nano-smoothing machining
  • Fine surface technology combined with shortest cycle times
  • Benchmark in terms of productivity / availability
  • User-friendly MANUAL GUIDE i and 3-D Simulation
  • Completely compatible with older Fanuc CNCs
  • Same Operation, Programming and Maintenance as FANUC Series 3xi-B (seamless CNC)
  • More than 25 years spare parts availability
