Universal Machining Centre for medium/large parts

EQUIPMENT

Box-in-box structure for high precision
Utmost flexible use: from aerospace to general engineering
Universal machining centre for the efficient machining of bulky and heavy workpieces
Made in the Heart of Europe

Technical data

Work area
Travel in X/Y/Z X: 6000 mm and over/Y: 4000-5000-6000-7000 mm/Z: 1500-2000-2500 mm
Axes feed rate 30 m/min

Highlights

  • The massive structure of the gantry milling machine combined with agility allows flexible use

  • Universal Machining centre in simple design makes an easy positioning, set up and clamping of the workpiece possible

  • Several options and systems: automatic head changer, double CNC platform, 120-pocket tool changer, tool cooling system, etc.

Milling operation

Milling operation on a machine tool structure component

Drilling and tapping

Drilling and tapping through the universal milling head on a general engineering component

Rotary table

Finishing on a rotary table

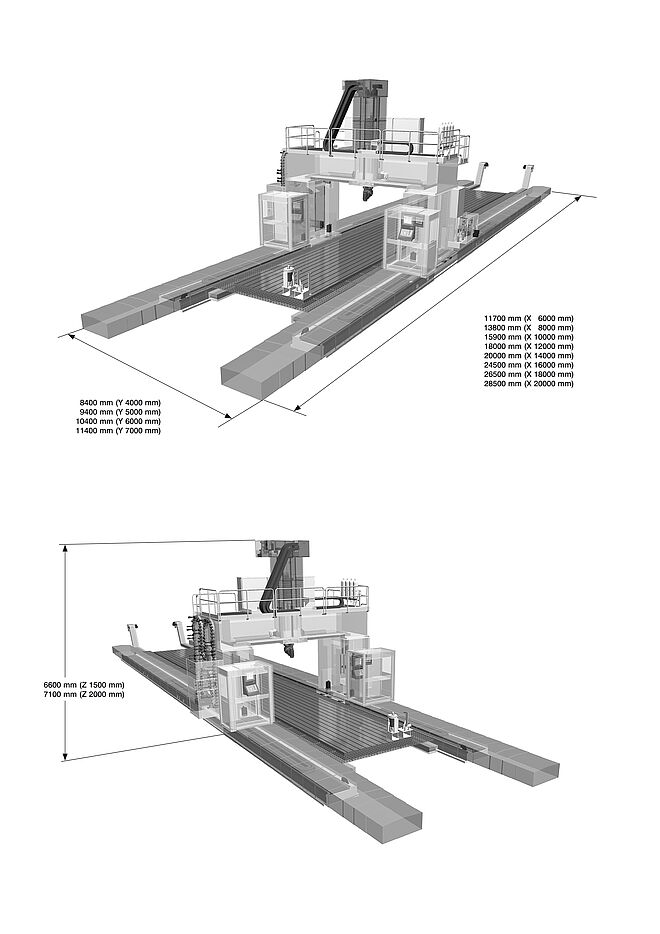

Overall dimensions/Work space

Overall Dimensions

Application Cases

mould & die

Powermill in the RGM configuration dedicated to the rails machining

Milling operation on a machinery component for the wood industry

The Gantry Milling Machine with a longitudinal axis travel of 32000 mm is here used in general engineering.

Software/Control

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
Heidenhain TNC 640 HSCI

The Heidenhain control unit is designed to simplify programming in the shop floor, providing an interactive programming environment, where the operator communicates with the control system through clear and easily comprehensible language.

The Heidenhain control unit is compatible with DIN/ISO programming standards.
