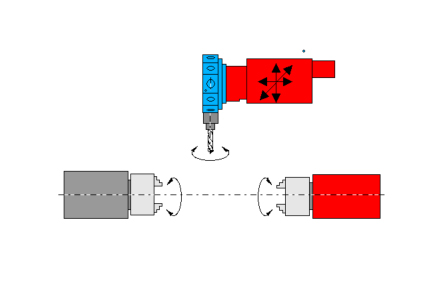

Travel in X/Y/Z | 260 / 80 (+/-40) / 610 mm |
Bar diameter | 65 (76,2/95) mm |
Max. turning diameter | 500 mm |
Swing over bed | 725 mm |
Spindle distance | Main Spindle - Counter Spindle: 840 mm |
Rapid motion speeds in X/Y/Z | 30 / 15 / 30 m/min |
Max. speed | 5000 (4500/3500) rpm |
Spindle nose | A2-6 (A2-8/A2-8) |
Max. drive power | 29 (29/37) kW |
Max. torque | 250 (250/325) Nm |
Max. speed | 0-6000 rpm |
Spindle nose | A2-6 |
Max. drive power | 22 kW |
Max. torque | 130 Nm |
VDI size | 30 (40) / BMT45P / BMT55P |
Number of tools | 12 / 16 |
Driven tools | 12 / 16 |
Max. speed | 0-12000 rpm |
Max. drive power | 11,7 (11,7) kW |
Max. torque | 28 (25) Nm |
Dimensions (LxWxH) | 3350 x 2330 x 2405 mm |
Machine weight | 7000 kg |

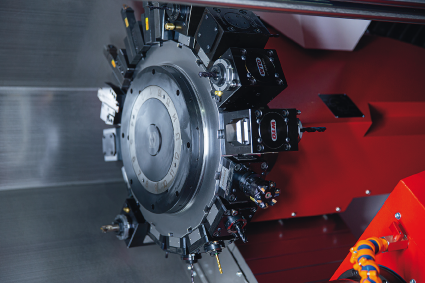

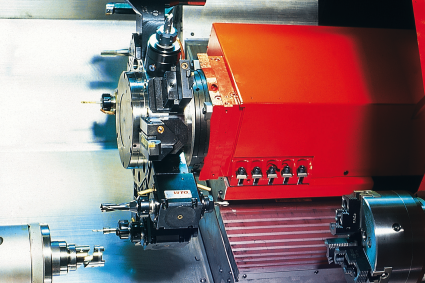

Fast 12-fold servo turret with very short switching times for VDI30 or VDI40 tools. The angle holders are equipped with ground alignment plates. This eliminates the need for time-consuming alignment of the tool holders. All stations are driven and the swivel speed is adjustable.

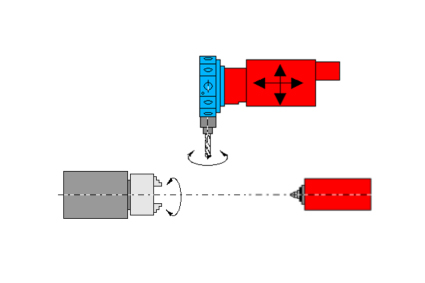

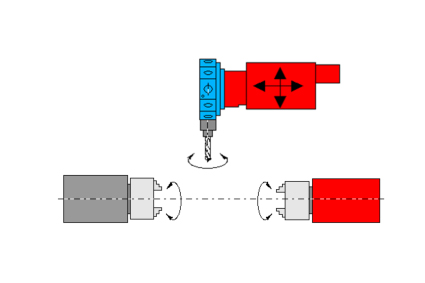

For the economical production of complex turning/milling workpieces with a predominantly milling component, a 12- or 16-position BMT turret with direct drive is available as an option. With up to 12000 rpm, this turret offers optimum conditions for complete machining. The stable BMT interface allows coolant pressures of up to 50 bar as standard and up to 150 bar as an option. Further advantages are the changeover accuracy and stability of the interface.

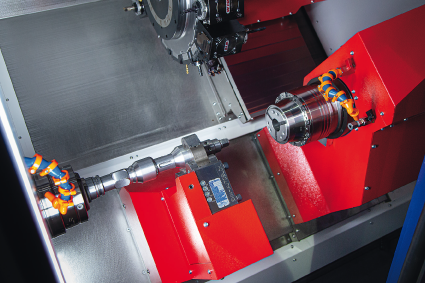

The hydraulically operated steady rest with a centering range of ø 8 - 101 mm sits on a sliding carriage which is dragged and positioned over the tool slide. It is hydraulically clamped into position by a clamping device. Equipped with chip protection and end position control, the steady rest is connected to the central lubrication system.

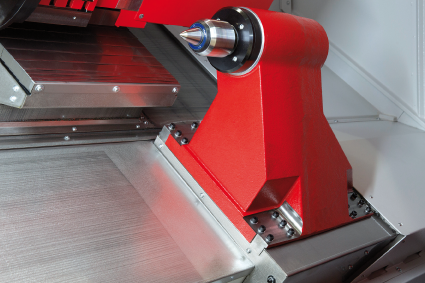

In order to support slim components, the MAXXTURN 65 G2 includes a fully automatic tailstock. It is hydraulically moved over a length of 500 mm. The centre with MT4 cone is directly included in the tailstock body. This ensures compactness and highest stability.

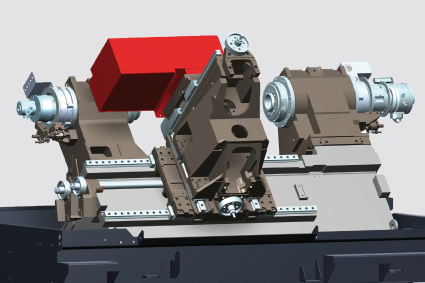

The 90° offset machine base with the broad-based, prestressed guide rails ensures short overhangs and top stability for complete machining.

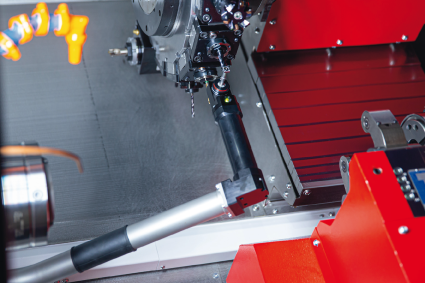

The optional tool measuring probe in the working area enables fast and precise measurement of the tools within the machine. It is mounted manually underneath the main spindle and after use is placed back in a tray on the left-hand side of the machine.
Optionally, a 14 bar coolant pump can be offered instead of the 3.5 bar pump. This supplements the pumps in the basic machine. For maintenance purposes and for cleaning the coolant tank, the pumps can simply be swung out. This allows the coolant tank to be pulled out to the front.
With a radio measuring probe on the turret, certain features on the workpiece can still be measured and precisely reworked during the process. Extensive measuring cycles facilitate the application.

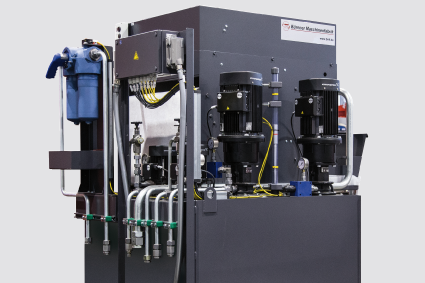

If required, a 600 litre belt filter system with 25 bar high-pressure coolant pumps can be added as an option. This increases the volume of the cooling emulsion and the service life of the coolant. A lifting pump in the coolant tank conveys the contaminated coolant into the belt filter system.
As an option, a hinge-type chip conveyor can be offered instead of the coolant trough in the basic machine. This reliably conveys chips of various types out of the working area of the machine. This makes low-manpower production possible.
Rotating window glued to the inside of the safety glass. The rotating disc throws off coolant and chips. Leaving a clear view of the setup and the machining process
The EMCO short-bar loader SL 1200 is the perfect solution for the automatic reloading of pre-cut bars up to 1200 mm.
The adavantage: small footprint and short loading times through shorter strokes.
The control unit is perfectly adapted to the interface of the machine.
Long, slender workpieces can be removed from the machine through the counter spindle.
Long parts can be stowed in different ways.
The finished parts can either simply roll down an inclined surface, or be stored in a lateral magazine using a discontinuous belt.
The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.
With the Sinumerik ONE you rely on:
Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.
The new SINUMERIK ONE has been specially developed for smart manufacturing.
This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.
For increased productivity and efficiency in production.
EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.
Included as standard equipment in the Siemens machine version (Sinumerik ONE).
The sensational CAM solution for turning and turning/milling. ESPRIT greatly simplifies the programming of complex machining processes and significantly reduces set-up times.
Simulations:
Using CPS the result is 100 % production reliability, up to 80 % shorter set-up times and an enormous increase in productivity and operating efficiency.
