Gantry Milling Machine

Gantry Milling Machine

Gantry Milling Machine for Precision General Engineering, Moulds, Dies and Models, Styling, Aerospace and Power Generation.

For further information about the MECOF product range click here>>

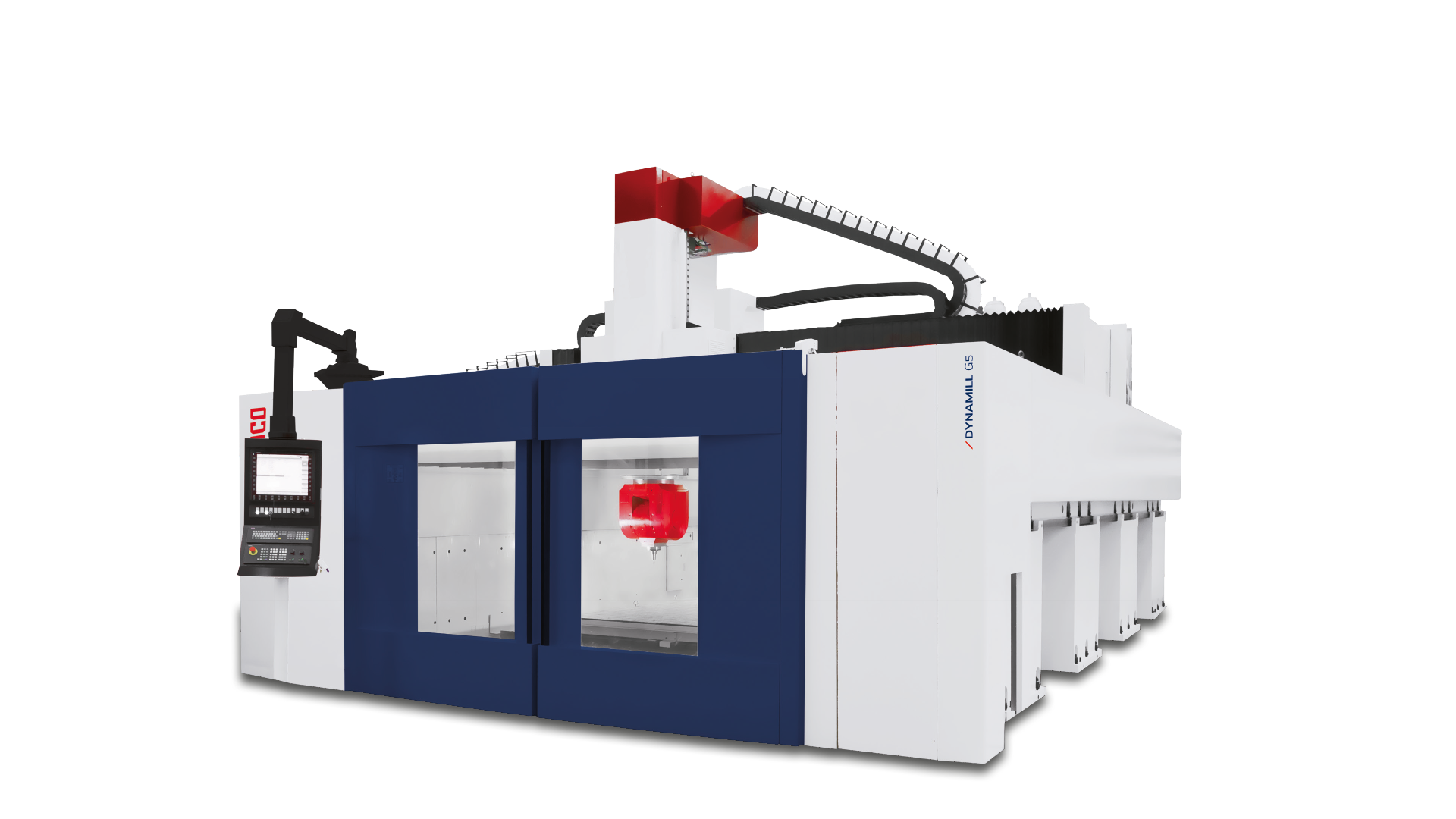

Gantry Milling Machine Dynamill G5

  • 15° undercut on universal milling head with high-speed spindle Direct drive technology on all milling heads with high-speed spindle Automatic tool changer up to 128 tools

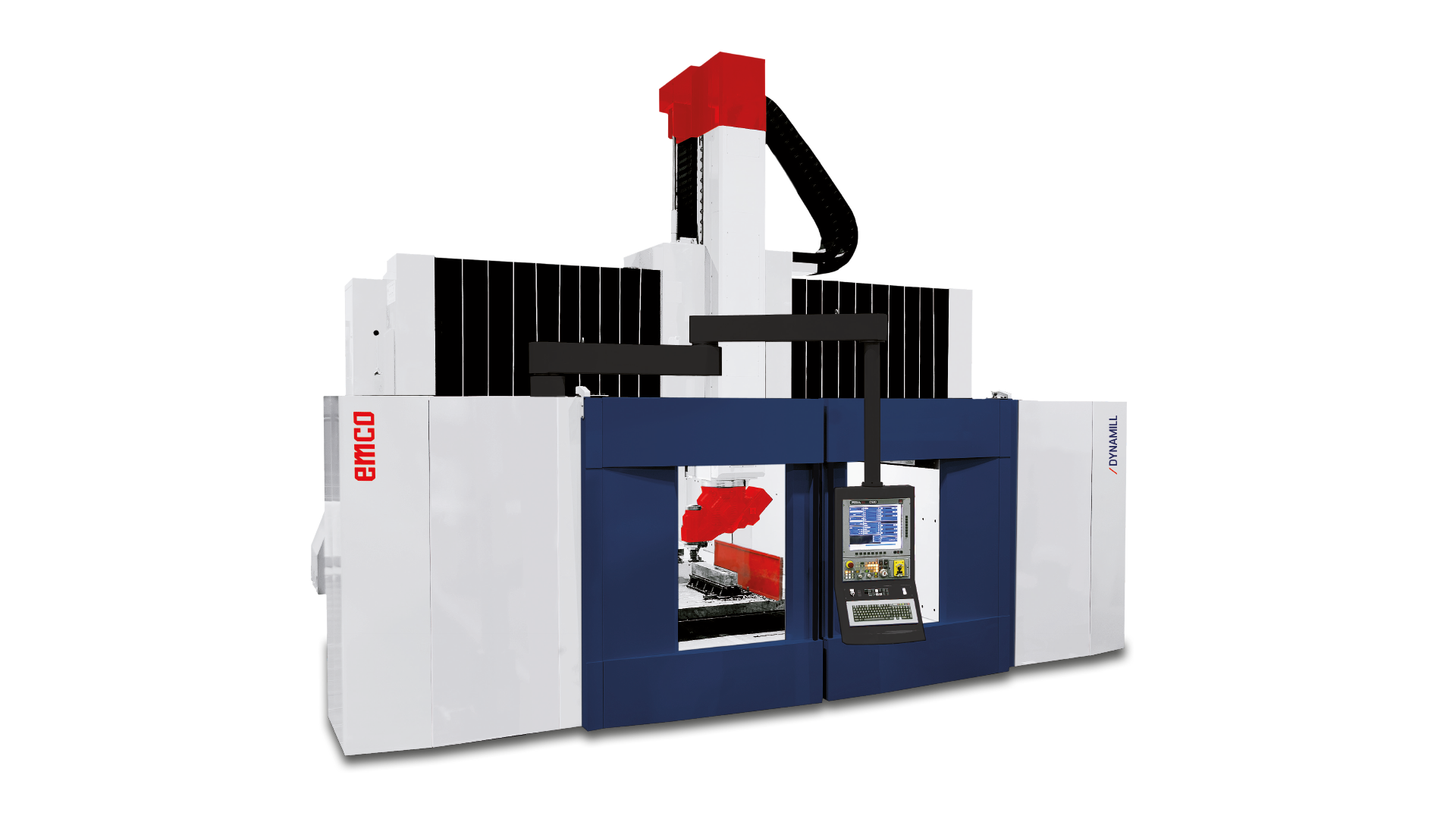

Gantry Milling Machine Dynamill

  • X axis from 4550 mm and more
  • Y axis 3000 - 4000 mm
  • Z axis 1500 - 2000 - 2500 mm
  • Max. drive power 60 kW (S1)
  • Max. drive torque 600 Nm (S1)
  • Axes feed rate 40 m/min

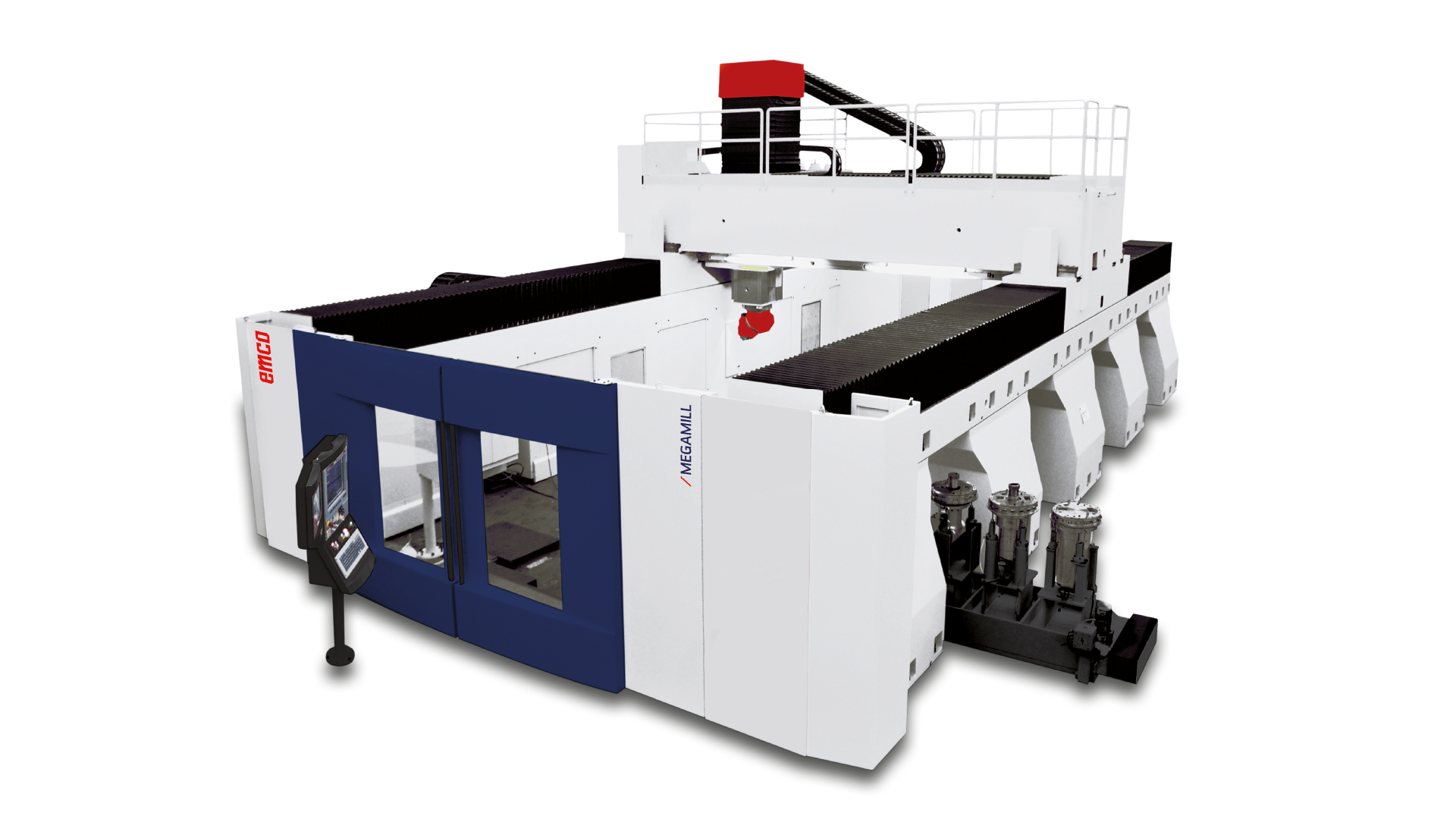

Gantry Milling Machine Megamill

  • X axis from 7500 mm and more
  • Y axis 4000 - 5000 - 6000 - 7000 mm
  • Z axis 1500 - 2000 mm
  • Max. drive power 40 kW (S1)
  • Max. drive torque 1200 Nm (S1)
  • Axes feed rate 30 m/min

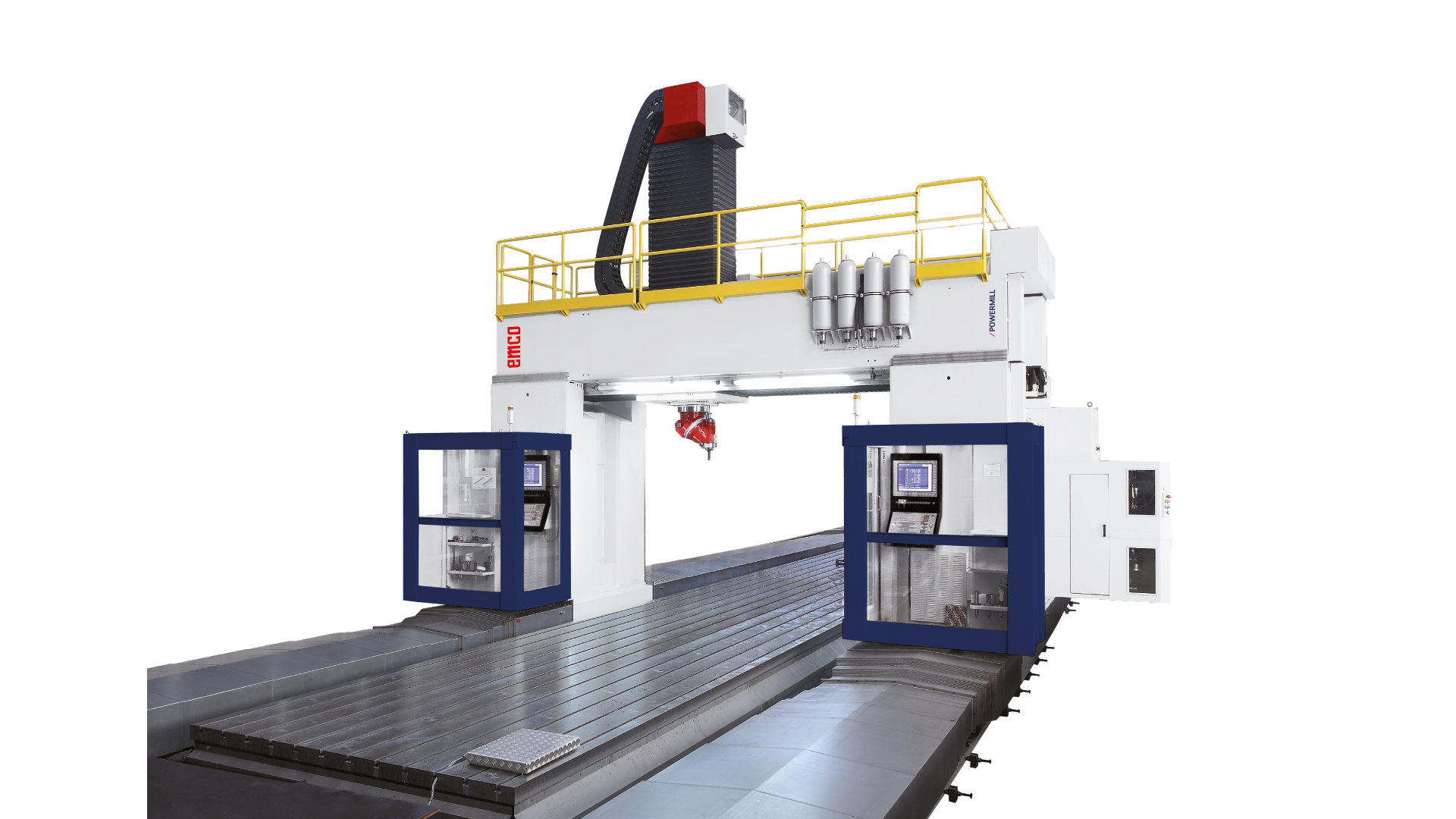

Gantry Milling Machine Powermill

  • X axis from 6000 mm and more
  • Y axis 4000 - 5000 - 6000 - 7000 mm
  • Z axis 1500 - 2000 mm
  • Max. drive power 40 kW (S1)
  • Max. drive torque 1200 Nm (S1)
  • Axes feed rate 30 m/min
