Universal Machining Centre Ecomill Plus

Universal Machining Centre Ecomill Plus

Universal Machining Centre Ecomill Plus

Universal Machining Centre with floor-type moving column

EQUIPMENT

Universal Machining Centre with Ram and column in box-in-box design
Balancing ram asset Mecof patented system
Motor spindle option: 40 kW / 1200 Nm (S1)
Heidenhain and Siemens numerical control

Technical data

Work area
Travel in X/Y/Z X axis 6000 mm and more, Y axis 1600 mm, Z axis 3000 mm
Axes feed rate 30 m/min
Number of axes (basic machine) 3+2, 5
Max. table load 15 t/m²

Highlights

  • High dynamics and precision thanks to milling heads with torque motors

  • Universal Machining Centre ready for Industry 4.0

  • 15 ° undercut on the universal milling head with high-speed spindle

  • Direct drive technology on all milling heads and a wide range of applicable heads with high-speed spindle

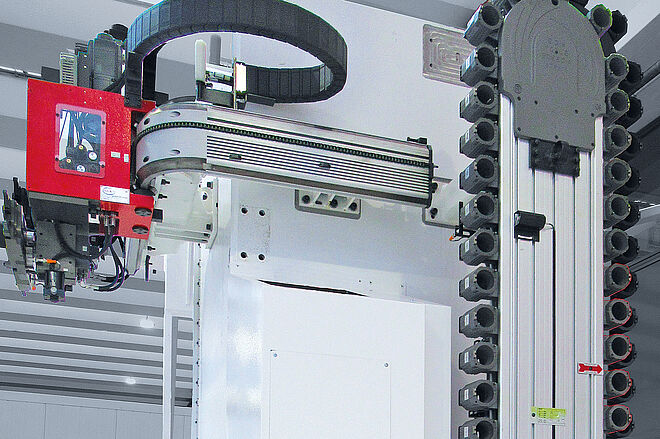

  • Automatic tool changer installed on the column up to 120 pockets or automatic tower tool changer up to 203 pockets

  • Machine configuration according to customer’s requirement

Box in Box Structure

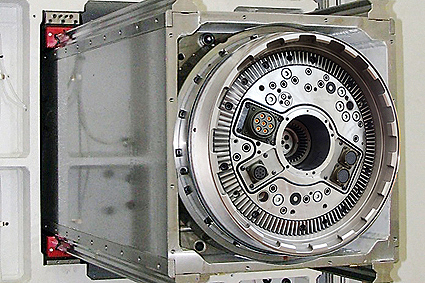

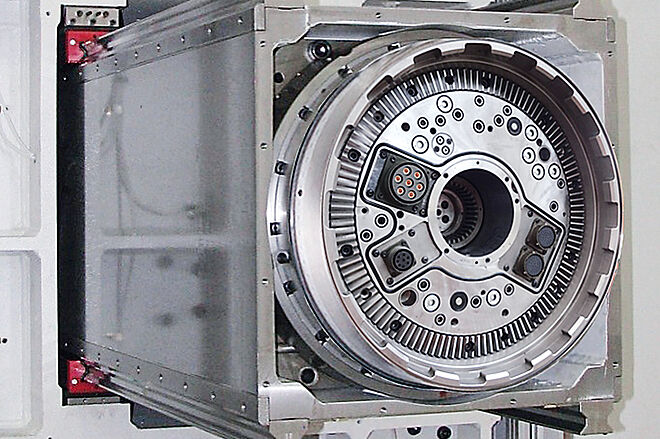

Box-in-box structure

View image Box in Box Structure

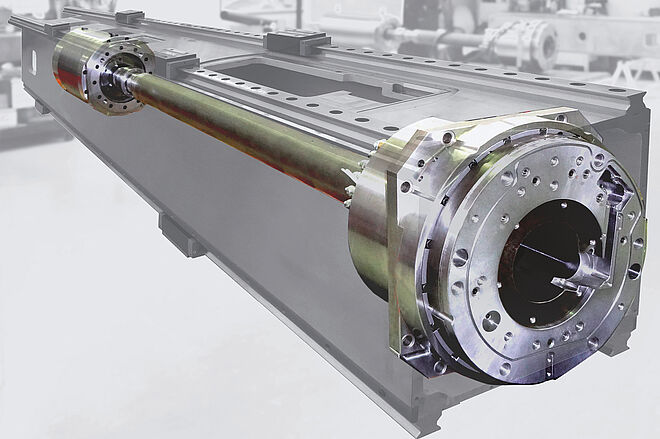

Direct drive, high reliability and long-life of the machine spindle line

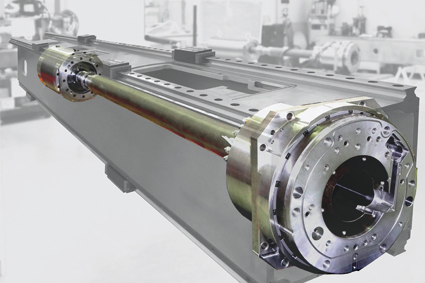

Direct drive

View image Direct drive, high reliability and long-life of the machine spindle line

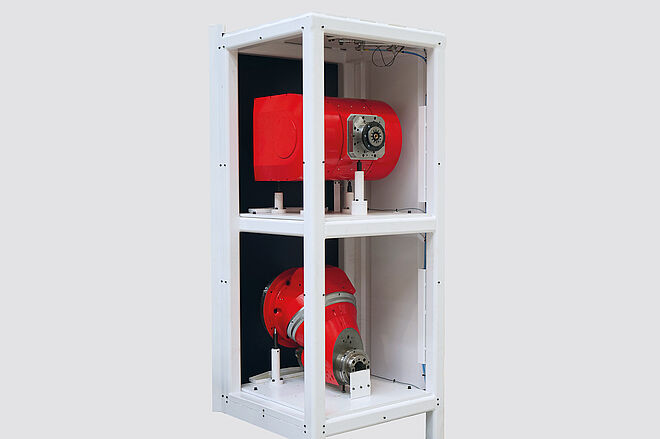

Automatic head changer, Full 5 axis milling

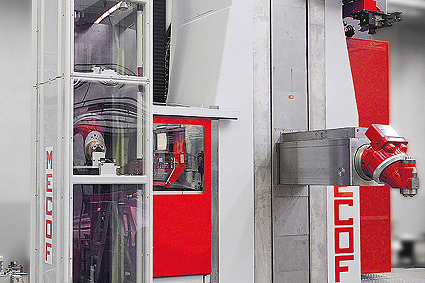

Automatic Head Changer

View image Automatic head changer, Full 5 axis milling

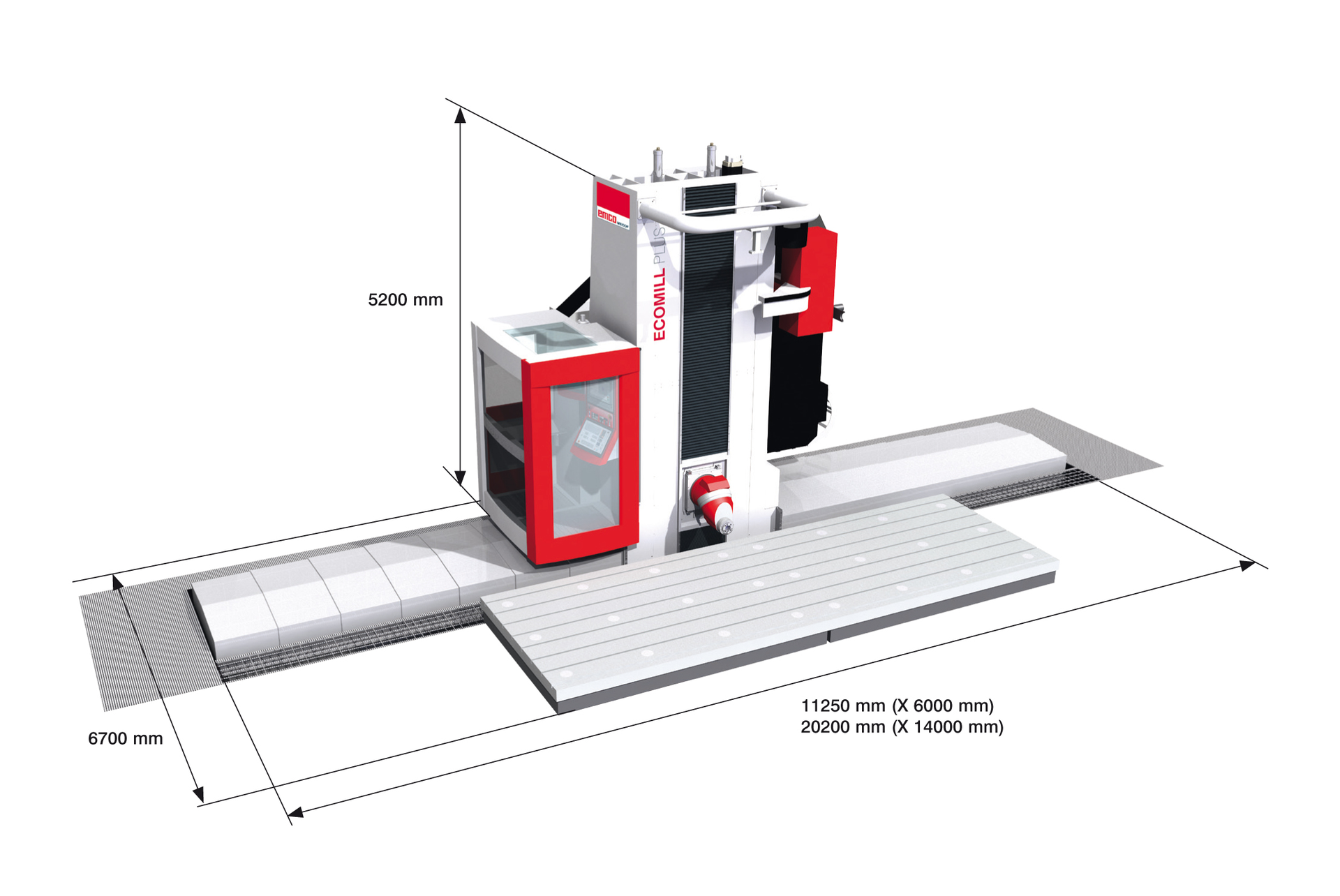

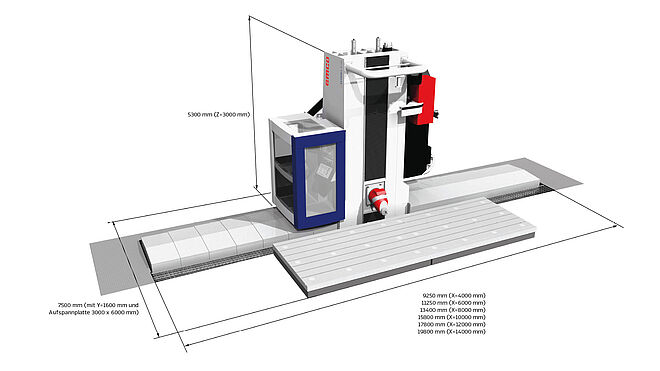

Overall dimensions/Work space

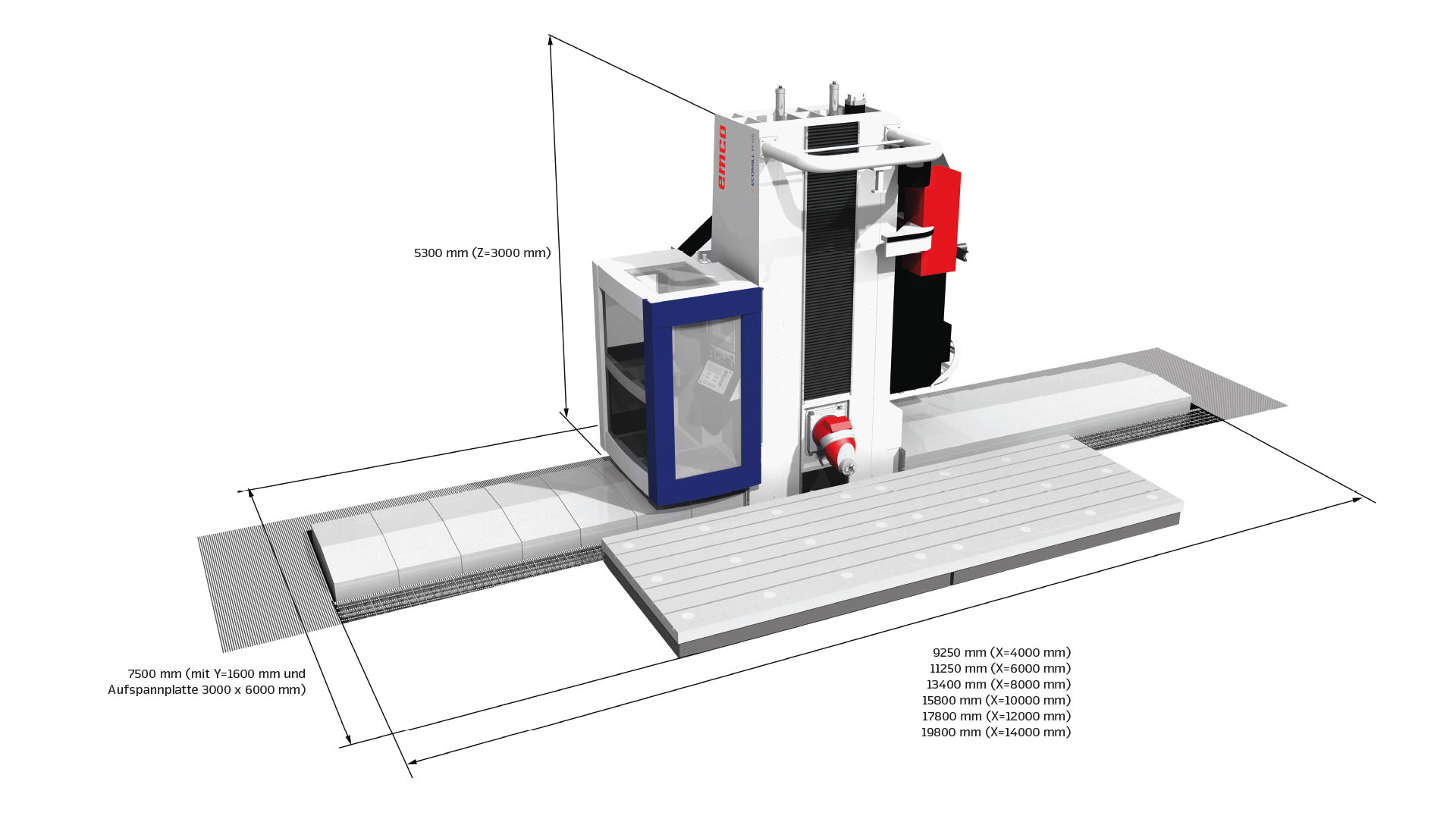

Aufstellmaße Mastermill

X-travel (mm)
A (mm)
400010200
600012200
800014200
1000016200
1200018200
1400020700
1600022700
Y-travel (mm)
B (mm)
13006600
16006600
Z-travel (mm)
C (mm)
22004300
30005100
View image

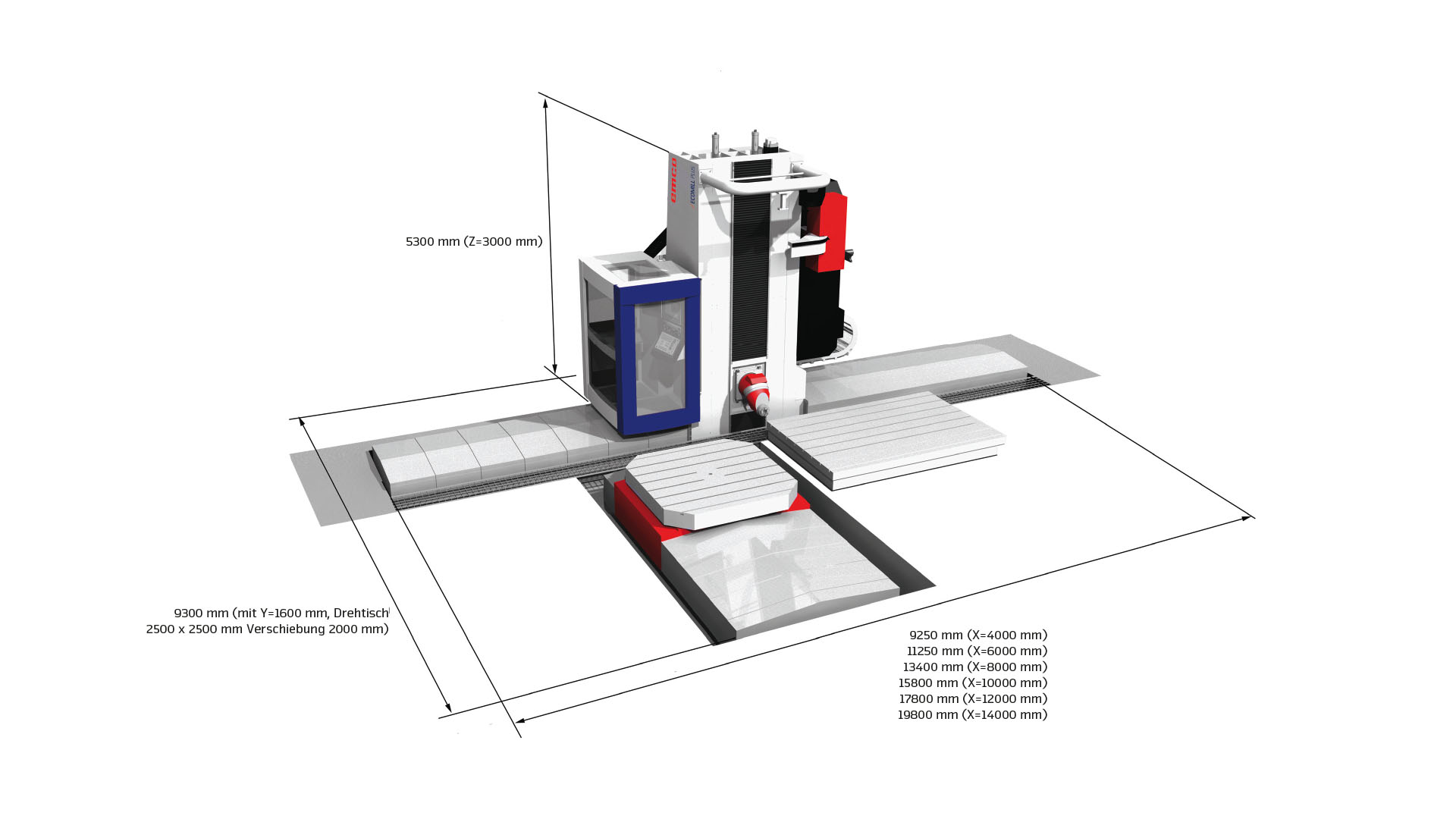

Maschinenlayout 2

View image

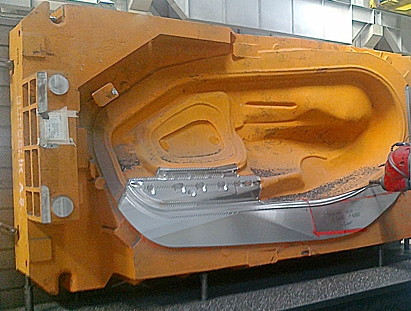

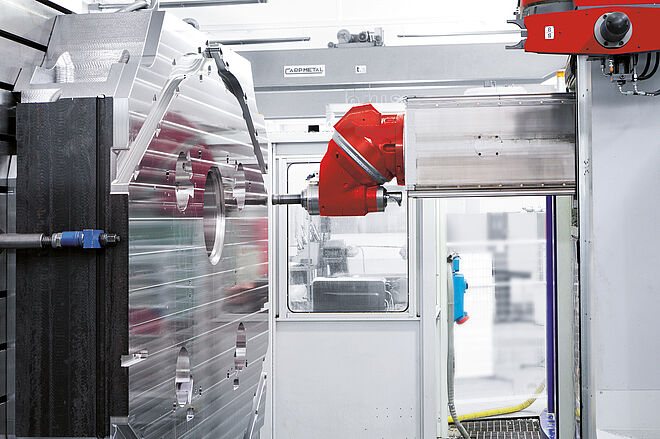

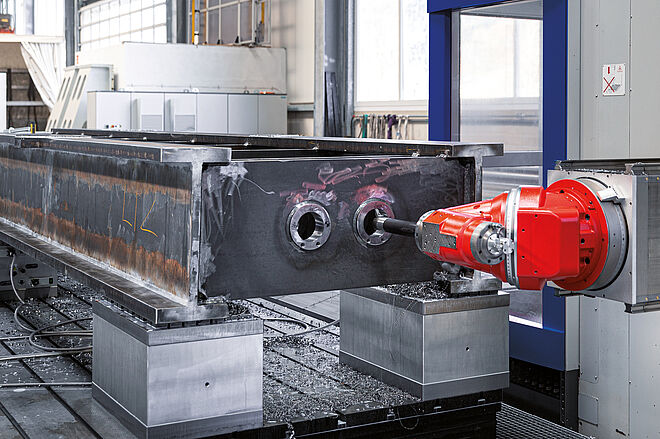

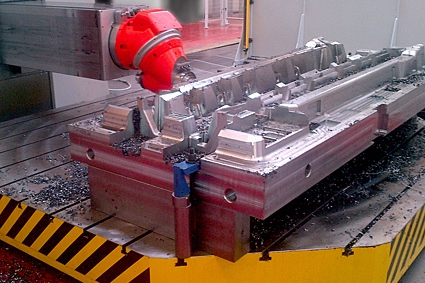

Application Cases

Milling heads

Universal milling head with automatic millesimal positioning

  • 6000 rpm
  • 38 kW (S1)
  • 1000 Nm (S1)
View image

Power diagram

Power Diagram of Universal Milling head with automatic millesimal positioning
View image

Full 5-axis universal milling head

  • 6000 rpm
  • 38 kW (S1)
  • 750 Nm (S1)
View image

Power diagram

Power Diagram for Full 5 axis universal milling head
View image

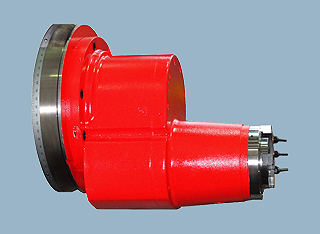

Milling head with offset spindle

  • 3000 rpm
  • 38 kW (S1)
  • 2000 Nm (S1)
View image

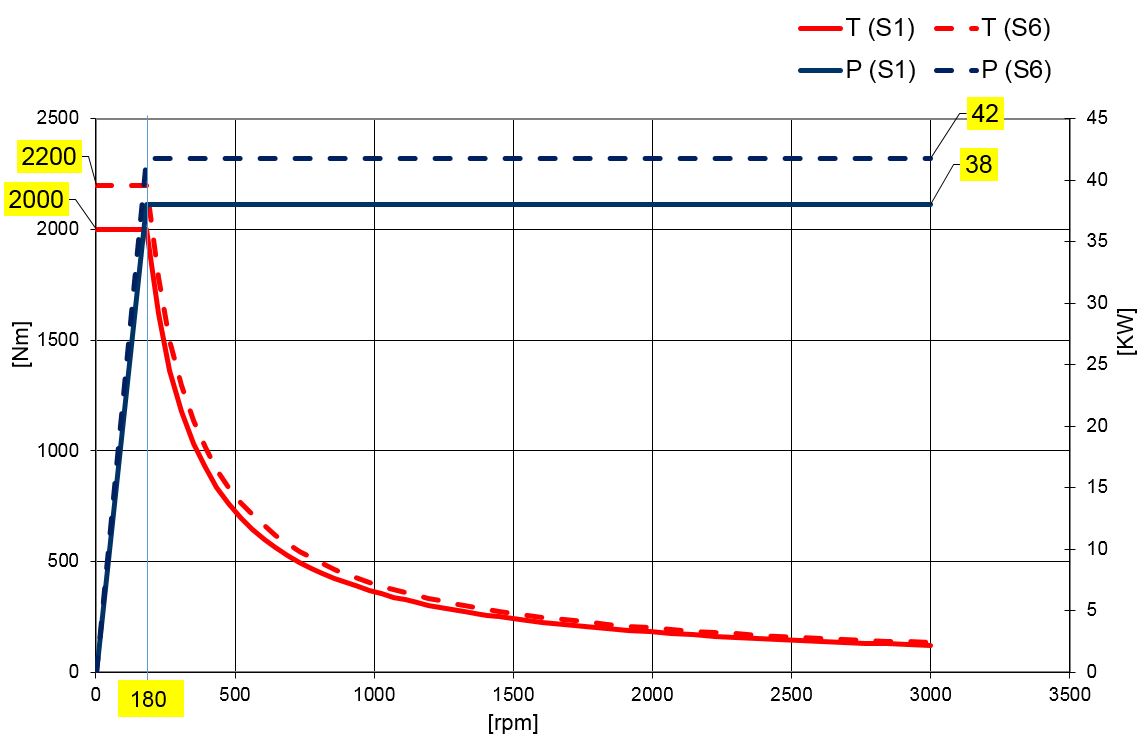

Power diagram

View image

Full 5-axis fork type milling head with high-speed spindle

  • 24000 rpm
  • 42 kW (S1)
  • 120 Nm (S1)
View image

Power diagram

Power Diagram of Full 5 axis fork type milling head with high speed spindle
View image

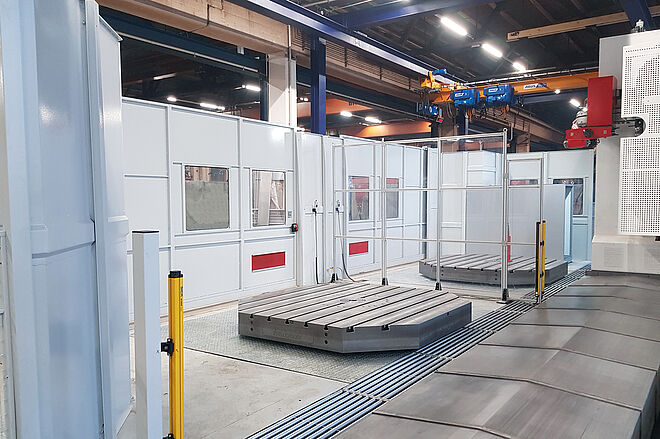

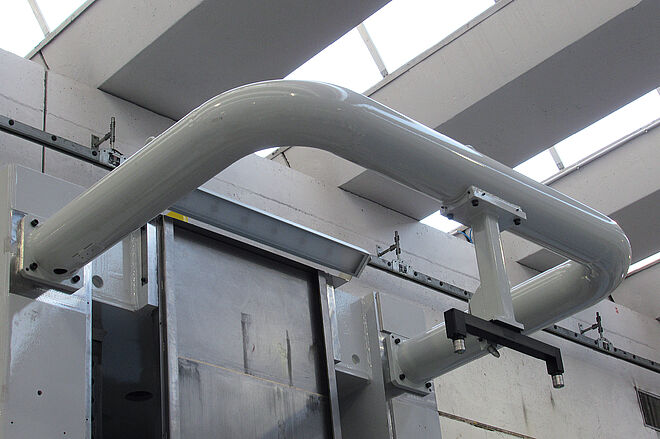

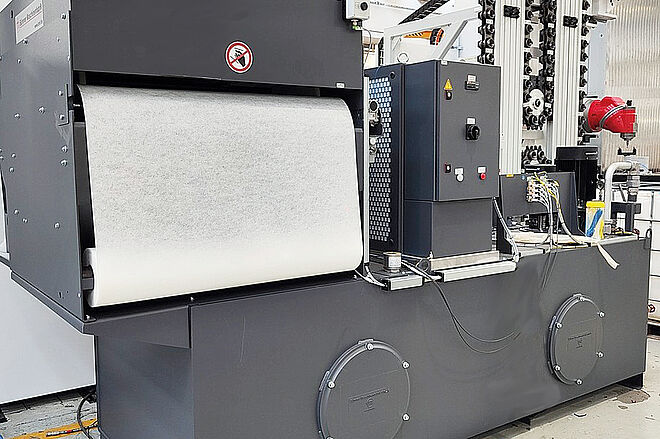

Options/Accessories

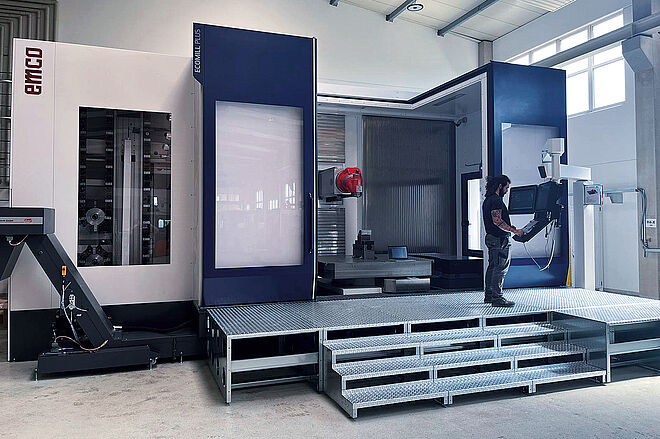

Motorized operator platform

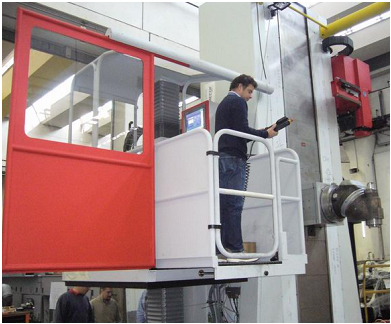

Motorized operator platform

Motorized operator platform - vertical and horizontal movements possible
View image Motorized operator platform

Software/Control

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
Heidenhain TNC 640 HSCI

The Heidenhain control unit is designed to simplify programming in the shop floor, providing an interactive programming environment, where the operator communicates with the control system through clear and easily comprehensible language.

The Heidenhain control unit is compatible with DIN/ISO programming standards.

Show details Hide details
