Universal Machining Center UMILL 750
Universal Machining Center UMILL 750

Universal Machining Center UMILL 750


Universal Milling Machine with motor-spindle 15000 / 24000 rpm
Tool changer with 40 (optional 60/90) tool stations
Universal Machining Center with Siemens control or Heidenhain control
EMCONNECT - Digital Process-Assistent (Sinumerik ONE)

Technical data

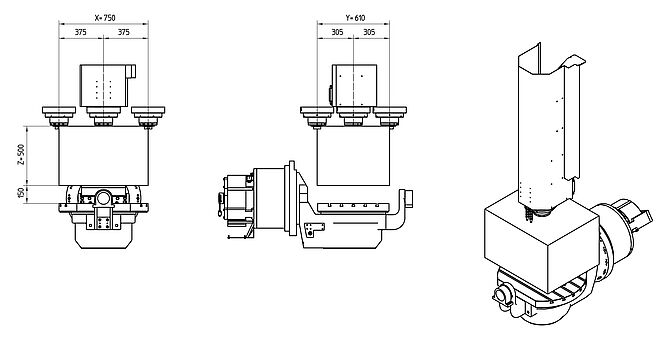

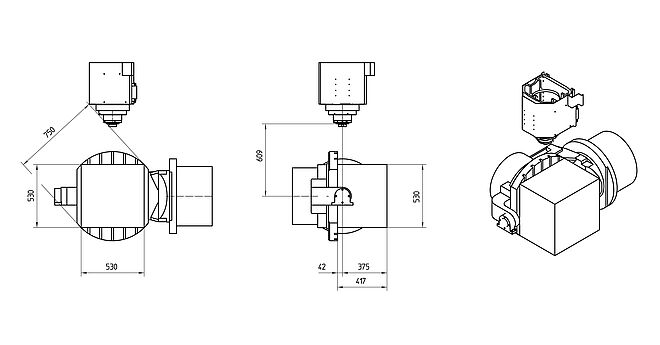

Work area
Travel in X/Y/Z 750/610/500 mm
Distance spindle nose 150/650 mm
Rapid motion speeds in X/Y/Z 50/50/50 m/min
Feed force in X/Y/Z 5000/5000/5000 N
Table 750x600 mm
Max. table load 400 kg
Motor spindle
Max. speed 50-15000 / 24000 rpm
Drive power 26 / 46 kW
Max. Torque 110 Nm
Tool turret
Number of tools 40 (60/90)
General data
Dimensions (LxWxH) 2850x3680x3060 mm
Machine weight 9000 kg


  • 5-axis simultaneous machining

  • Top thermostability

  • Top machining precision

  • Universal Machining Center with modern moving column concept for optimal accessibility

  • Solid swivel-rotary table with torque motors, direct measuring systems and front support, dimensions 750 x 600 mm provides high stability and precision

  • Wide swivelling range +/- 100°

  • Standard linear scales in X-Y-Z

  • Universal Milling machine with cutting-edge control technology from Siemens or Heidenhain

  • Digital process assistent EMCONNECT available for Sinumerik ONE

  • Optimal chip removal

  • Made in the Heart of Europe

Direktantriebe X- und Y-Achsen

Direct drives in X- and Y-axis

Dreh-Schwenktisch mit Drehgebern und Torque-Motoren

Swivel-rotary table with encoders and torque motors

Verfahrweg B-Achse: +/-100°

Travel B-axis: +/-100°

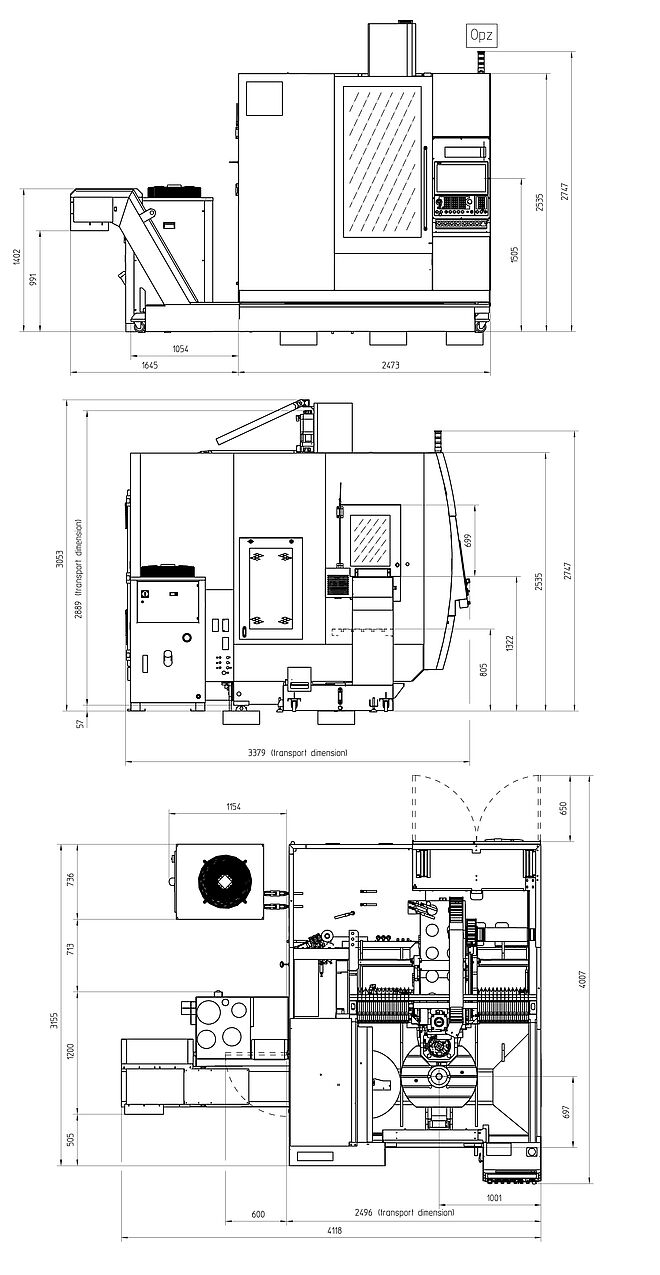

Overall dimensions/Work space














"S" mit schrägen Flächen


Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
EMCONNECT - Digital Process Assistant

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).

Show details Hide details
Heidenhain TNC 640

TNC 640 Heidenhain offers besides the milling operations also combined milling and turning operations. It is particularly suitable for Mill-Turn, HSC- and 5 axis operations at machines up to 18 axes.


  • 19'' TFT colour display
  • Optimised user interface
  • Interactive fast choice of functions
  • Numerous machining cycles
  • Innovative graphic simulation
  • Improved motion control and short block processing time

Show details Hide details
