CNC Milling Machine Maxxmill 750
CNC Milling Machine Maxxmill 750

CNC Milling Machine Maxxmill 750

EQUIPMENT

CNC Milling Machine for 4+1-axis machining
Mechanical or Motor Spindle
Tool changer with 30/40/60/90 tool stations
Vertical Milling Center with Siemens controlor Heidenhain control
EMCONNECT – Digital Process Assistant (Sinumerik ONE)

Technical data

Work area
Travel in X/Y/Z 750+50/610/500 mm
Distance spindle nose 175/675 mm
Rapid motion speeds in X/Y/Z 30/30/30 m/min
Work feed X/Y/Z 15/15/15 m/min
Feed force in X/Y/Z 5000/5000/5000 N
Table 750x600 mm
Max. table load 300 kg
Motor spindle
Max. speed 50-15000 rpm
Drive power 20 kW
Max. Torque 100 Nm
Mechanical Spindle
Max. Speed 50-12000 rpm
Drive Power (S6) 15 kW
Max. Torque (S6) 100 Nm
Tool turret
Number of tools 30 (40/60/90)
General data
Dimensions (LxWxH) 2840x3500x3060 mm
Machine weight 7900 kg

Highlights

  • CNC Milling Machine for 5-sided machining in a single set-up

  • Top thermostability

  • Top machining precision

  • Vertical Milling Center with modern moving column concept

  • Massive swivel-rotary table with 750 x 600 mm (29.5 x 23.6") provides high stability and precision

  • Compact machine design

  • Cutting-edge control technology from Siemens or Heidenhain

  • Extensive options such as water-cooled motor spindle with 15000 rpm

  • Optimal chip removal

  • Made in the Heart of Europe

Swivel-rotary-table

The swivel-rotary table has a large clamping area of 750 x 600 mm (29.5 x 23.6") and can bear loads of up to 300 kg (661.3 lb). This makes it possible to simply machine workpieces with an edge size of 530 x 530 x 417 mm (20.8 x 20.8 x 16.4"). The special shape of the table allows the spindles to move closer to the table center.

Tool Changer

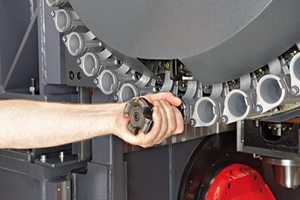

The tool changer is a drum magazine for 40 tools. A tool magazine with 60 or 90 tool stations is as option available. The tools are managed according to the variable tool stationcoding principle (random), which means that tools are always deposited in the first free magazine station for time reasons.

Overall dimensions/Work space

Installation Plan

Installation Plan

Work Area

Work Area

Workpieces

Examples of use

  • Kleine Werkstücke in kleiner bis mittlerer Stückzahl für den
  • Werkzeug- und Formenbau
  • Maschinenbau
  • Feinmechanik
  • Medizintechnik
  • Optische Industrie
  • Lohnfertigung
  • Ausbildungswerkstätten

Distributor (Brass)

Distributor (Brass)

Options/Accessories

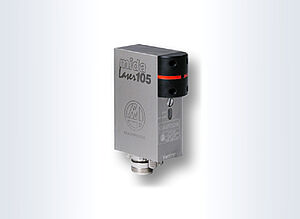

Laser device for presetting, breakage check and profile measuring tools

A light barrier mounted on machine table scans the tool edges and automatically takes over the values into the tool offset memory for further processing.

Automatic workpiece measuring

The workpieces are automatically measured by an infrared measuring probe that is mounted on the main spindle. Measuring cycles take over the values.

Increased coolant pressure with internal coolant supply

A swivel guide with a coolant pump with 20 bar cools spindle and tools.Alternatively cooling by air is possible.

Software/Control

Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

Show details Hide details
EMCONNECT - Digital Process Assistant

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).

Show details Hide details
Heidenhain TNC 620

The latest control offers milling operations, a 19'' TFT colour display and 3D-reproduction and programming graphics.
It is particularly suitable for Mill, HSC- and 5 axis operations at machines up to 6 axes.

Show details Hide details
