Turning

Turning

The diverse EMCO turning machine series offer professional solutions for every demand.

Hyperturn

CNC turn-mill centers

For complete machining of complex workpieces up to Ø 710 mm (28.0'') ;Spindle diameter 45 (1.77"), 65 (2.56"), 76 (2,99"), 95 (3.74'') mm

Hyperturn 200 Powermill

  • Swing diameter 1050 mm
  • Max. Turning diameter 1000 mm
  • Max. Spindle speed 1800 rpm
  • max. power 84 kW

Hyperturn 100 Powermill

  • Swing over bed 750 mm
  • Max. turning diameter 720 mm
  • Max. spindle speed (with transmission) 400 / 3500 // 143 / 2500 rpm
  • Max. drive power, main spindle 33 / 53 kW

HYPERTURN 65 POWERMILL G2

  • Max. bar stock diameter 65 (102) mm
  • Max. speed 5.000 rpm
  • Drive power Main-counter spindle 29 kW
  • Automation with bar- or gantry-loader, unloading through the counter spindle

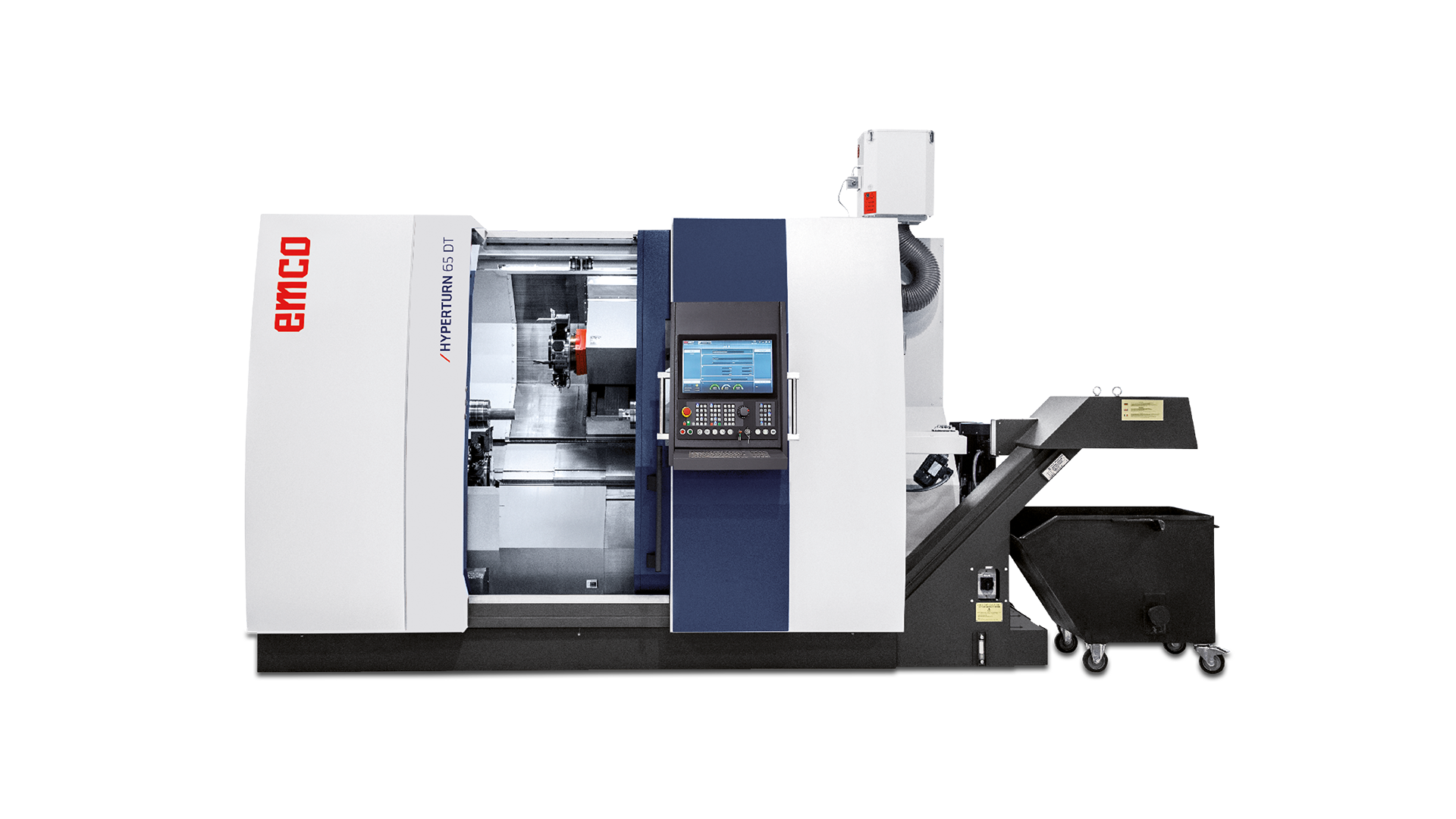

Hyperturn 65 Powermill

  • Max. bar stock diameter 65
    (76,2 / 95) mm
  • Workpiece size for counter spindle 200 x 200 mm
  • Max. speed 5.000 rpm
  • Drive power Main-counter spindle 29 (37)/29 kW
  • Automation with bar- or gantry-loader, unloading through the counter spindle

HYPERTURN 45

  • Max. bar stock diameter 45 (51) mm
  • Max. chuck size 160 mm
  • Max. spindle speed 7,000 rpm
  • Drive power 15 kW
  • Bar and swing loader

Hyperturn 45-G3

  • Max. bar stock diameter 45 (51) mm
  • Max. chuck size 160 mm
  • Max. spindle speed 7,000 rpm
  • Drive power 15 kW
  • Bar and swing loader

Hyperturn 65

  • Max. bar-stock diameter 65 (76,2 / 95) mm
  • Max. chuck size 250 mm
  • Max. speed 5.000 rpm
  • Max. drive power 29 / 37 kW
  • Bar loaders

Hyperturn 95

  • Max. bar stock diameter Ø 95 mm
  • Max. chuck size 315 mm
  • Bed length 1700 mm/ 2300 mm
  • Max. speed 3500 rpm
  • Max. drive power 33 kW

Hyperturn 110

  • Max. bar stock diameter 110 mm
  • Max. chuck size 500 mm
  • Bed length 1700 mm/2300 mm
  • Max. speed 2500 rpm
  • Max. drive power 52 kW


Maxxturn

High-performance CNC turning centers

CNC high-perfomance turning centers for flexible machining of chuck, shaft and bar stock parts; size of workpieces up to Ø 500 mm, spindle bore: Ø 25 to 95 mm

Maxxturn 25

  • Max. bar stock diameter 25 mm
  • Max. chuck size 95 mm
  • Max. speed 8000 rpm
  • Drive power main spindle 6.5 kW
  • Drive power tool turret 1.2 kW

MAXXTURN 45 G2

  • Max. bar stock diameter 45 (51) mm
  • Max. chuck size 160 mm
  • Max. speed range 7000 prm
  • Drive power main spindle 15 kW
  • Drive power turret 4 kW

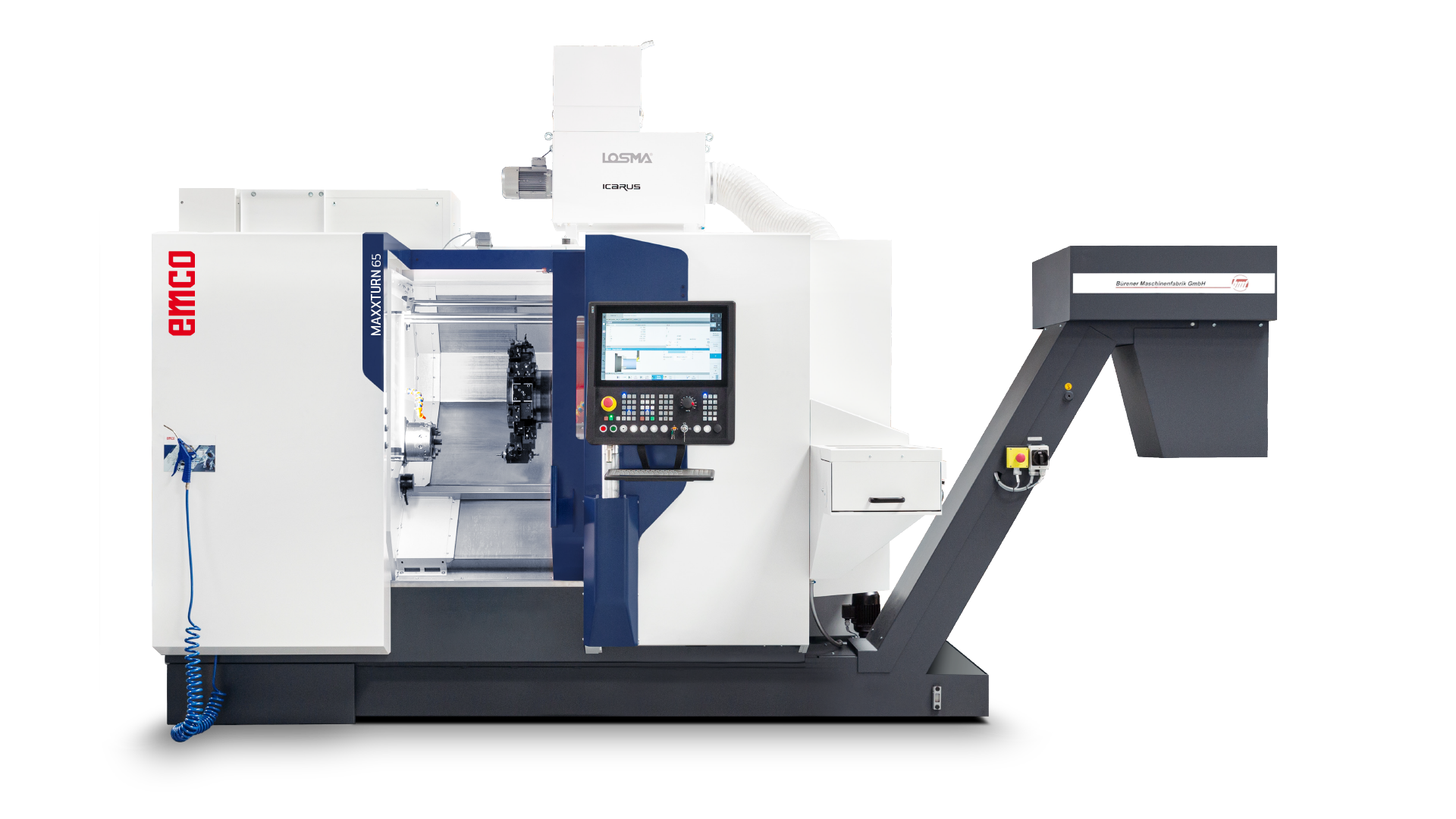

Maxxturn 65

  • Max. bar stock diameter 65 (76,2/95) mm
  • Max. chuck size 250 mm
  • Max. speed range 5000 rpm
  • Drive power main spindle 29 kW
  • Drive power turret 6.7 kW

Maxxturn 95

  • Max. bar stock diameter 95 mm
  • Max. chuck size 315 mm
  • Max. speed range 3500 rpm
  • Drive power main spindle 33 kW
  • Drive power turret 8 kW

Maxxturn 110

  • Max. bar stock diameter 110 mm
  • Max. chuck size 315/400 (500) mm
  • Max. speed range 3500 / 2500 rpm
  • Drive power main spindle 33 / 42 kW
  • Drive power turret 10 kW

Maxxturn 200

  • Max. bar stock diameter 165 x 1200 mm
  • Max. chuck size 400 / 500 / 630 mm
  • Max. speed range 1800 / 2500 rpm
  • Drive power main spindle 84 / 53 kW
  • Drive power turret 19,8 kW


Vertical Turn VT

CNC Vertical Turning Centers

For the machining of chuck parts up to ø 400 mm

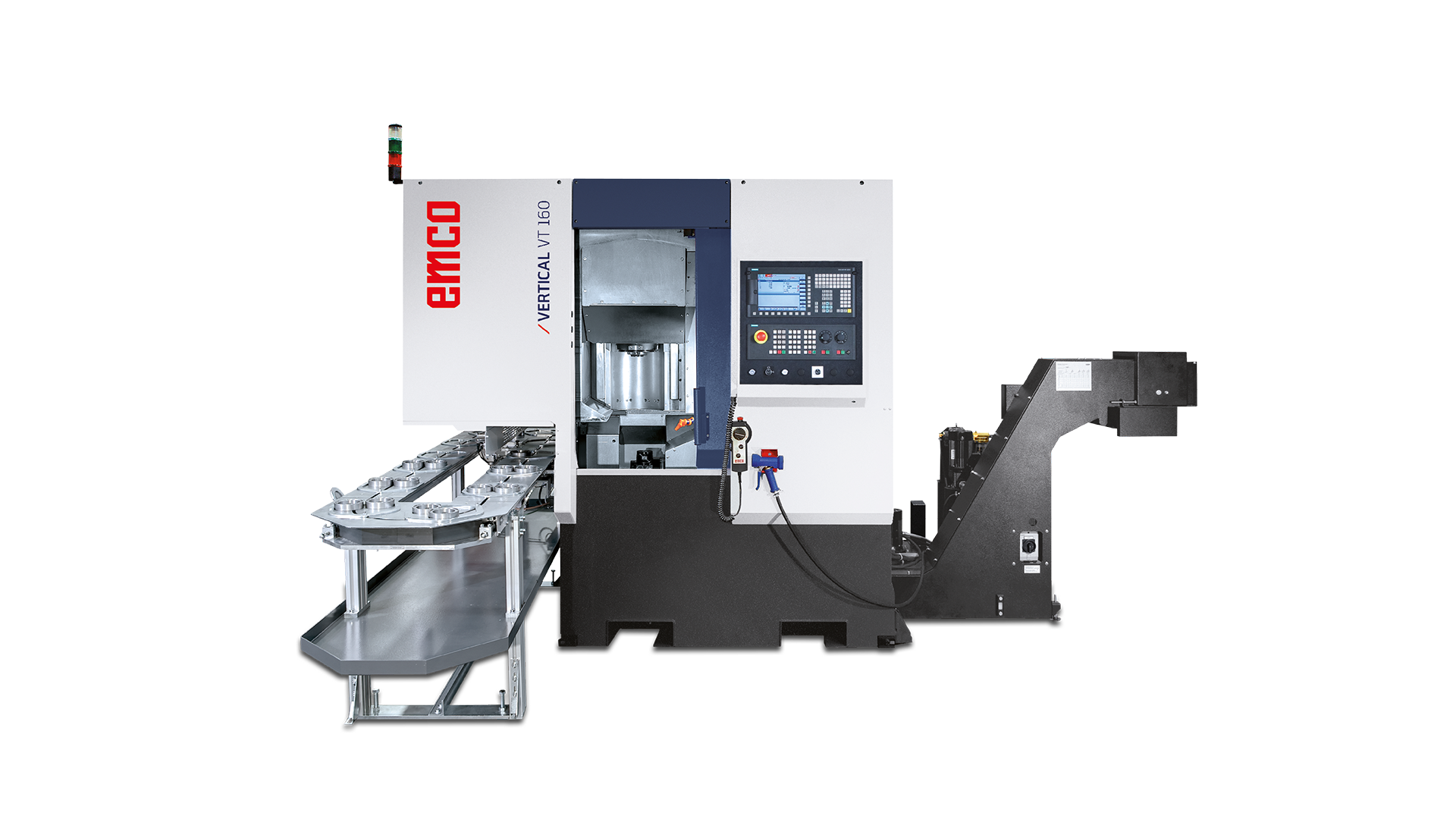

Emco Vertical VT 160

  • Max. turning diameter 160 mm
  • Max. chuck diameter 160 mm
  • Max. spindle speed 7000 rpm
  • Drive power main spindle 21 kW
  • Drive power turret 6.7 kW

Emco Vertical VT 260

  • Max. turning diameter 260 mm
  • Max. chuck diameter 260 mm
  • Max. spindle speed 5000 rpm
  • Drive power main spindle 29 kW
  • Drive power turret 8.5 kW

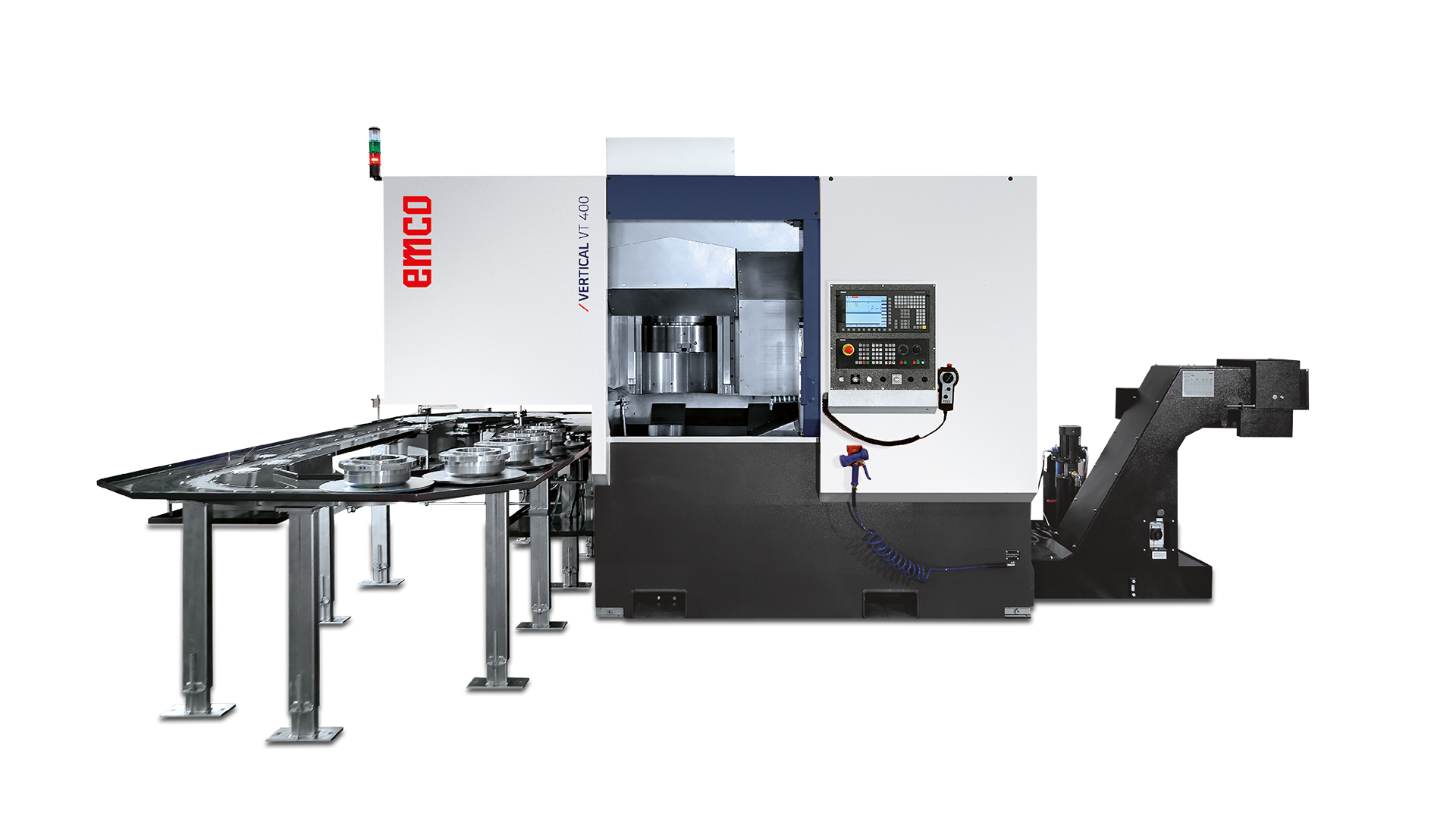

Emco Vertical VT 400

  • Max. turning diameter 400 mm
  • Max. chuck diameter 400 mm
  • Max. spindle speed 4000 rpm
  • Drive power main spindle 36 kW
  • Drive power turret 8,5 kW


Emcoturn

CNC turning machines

Modular CNC turning machines for economic machining of chuck, shaft and bar stock parts; size of workpieces up to Ø 1000 mm, spindle bore Ø 25 to 206 mm

Emcoturn E25

  • Max. bar stock diameter 25,4 mm
  • Max. chuck size 95 mm
  • Max. speed 6300 rpm
  • Drive main spindle 5.5 kW
  • Drive turret 1.2 kW

Emcoturn E45

  • Max. bar stock diameter 45 (51) mm
  • Max. machining diameter 220 mm
  • Max. speed 6300 (5000) rpm
  • Driven main spindle 13 kW
  • Driven turret 4 kW

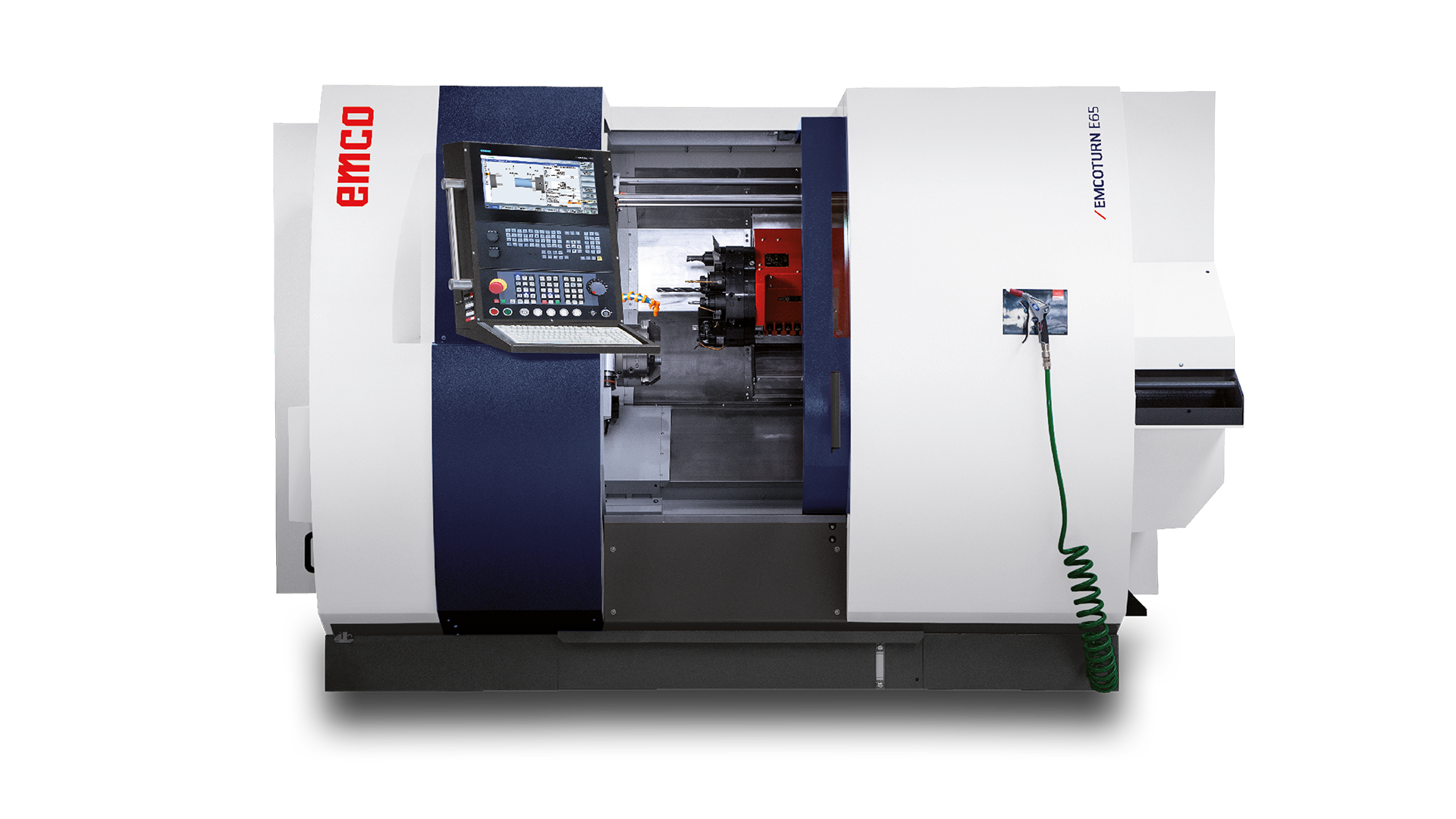

Emcoturn E65

  • Max. bar stock diameter 65 (95) mm
  • Max. chuck size 200 (250) mm
  • Max. speed 5000 (3500) rpm
  • Max. drive main spindle 22 (23,7) kW
  • Max. drive turret 6,7 kW
  • Y axis + / - 40 mm


S45_S65

CNC-Lathes with Milling Drive

2-axis CNC turning machine with driven tools and tailstock (optionally available without tailstock), for bar and chuck machining, equipped with Siemens or Fanuc control technology.

CNC-Lathe S65

  • Diameter Bar Stock 65 mm / Chuck Parts 310 mm
  • Speed Range 0-4200 U/min
  • Drive Performance 18 kW
  • Configurate now

CNC-Lathe S45

  • Max. Diameter Bar parts 45 mm / Chuck parts 220 mm
  • Speed Range 0-6300 U/min
  • Drive Performance 11 kW
  •
  •
  • Configurate now


Emcomat

High precision lathes with and without cycle control

Universal lathes

Conventional lathes Center height: 140 to 200 mm (5.51 to 8.87'') Center distance: 650 to 1000 mm (25.59 to 39.37'')

Emcomat-14 D

  • Distance above centers 140 mm
  • Distance between centers 650 mm
  • Spindle bore Ø 40 mm
  • Max. speed 4000 rpm
  • Max. drive performance 7.5 kW

Emcomat-17 D

  • Distance above centers 170 mm
  • Distance between centers 700 mm
  • Spindle bore Ø 50 mm
  • Max. speed (17S) 2350 rpm
  • Max. speed (17D) 3000 rpm
  • Max. drive performance (17S) 3.2 kW
  • Max. drive performance (17D) 5.3 kW

Emcomat-20 D

  • Distance above centers 200 mm
  • Distance between centers 1000 mm
  • Spindle bore Ø 50 mm
  • Max. speed 3000 rpm
  • Max. drive performance 5.3 kW


Universal turning machines with cycle control

Precision cycle controlled lathes Center height: 200 to 510 mm (6.30 to 20.08'')Center distance: 1000 to 6000 mm (39.37 to 236.22'')

Emcomat E-200 MC

  • Distance between centers 1000 mm
  • Distance above centers 200 mm
  • Spindle bore Ø 50/53 mm
  • Max. speed 4000 rpm
  • Drive performance 7.5 / 10kW

Emcomat E-360

  • Distance between centers 1500-6000 mm
  • Distance above centers 380 mm
  • Spindle bore 153 mm
  • Max. speed 1200 rpm
  • Drive performance 33/22 kW

Emcomat E-400

  • Distance between centers 1500-6000 mm
  • Distance above centers 430 mm
  • Spindle bore 153 mm
  • Max. speed 1200 rpm
  • Drive performance 33/22 kW
