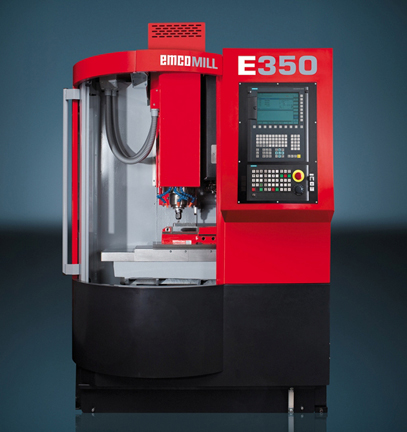

Emcomill E350

Emcomill E350

Emcomill E350

EQUIPMENT

Mechanical spindle
20-fold tool magazine
Fast two-arm changer
Optionally dividing unit (4th axis)
Siemens control

Технические характеристики

Рабочая область
Ход осей X/Y/Z 350 / 250 / 300 mm
Расстояние шпинделя к столу 120 - 420 mm
Скорость быстрого хода осей X/Y/Z 24 / 24 / 24 m/min
Рабочая площадь 500 x 300 mm
Макс. нагрузка стола 100 kg
Смена инструмента
Количество гнезд для инструмента 20
Время смены инструмента (инст/инстр) 2.5 s
Макс. диаметр инструмента 63 (80) mm
Макс. длина инструмента 200 mm
Фрезерный шпиндель
Макс. скорость оборотов 10000 rpm
Макс. мощность привода 6,8 kW (S1)
Макс. крутящий момент 34 Nm (S6 60%)
Габариты
Габаритные размеры (ДхШхВ) 1600 x 1700 x 2200 mm
Вес станка 1970 kg

Highlights

  • Highest thermostability and optimal machining accuracy

  • Cutting-edge control technology from Siemens with JobShop programming software

  • Very attractive price-performance ratio

  • Top European quality – Made in the Heart of Europe

Machining EMCOMILL E350

Machining

Work area EMCOMILL E350

Work area

Tool change EMCOMILL E350

Tool change

Overall dimensions/Work space

Floor plan EMCOMILL E350 Front

Floor plan frontal view Emcomill 350

Floor plan EMCOMILL E350 Side

Floor plan side view Emcomill 350

Work area EMCOMILL E350

Work area EMCOMILL E350

Workpieces

Примеры

  • For small to medium lot sizes

Hoist bracket

Hoist bracket made of steel 42CM04

Milling head

Milling head made of tempered steel

Material sample/steel industry

Material sample/steel industry (titanium alloy)

Versions

E350 Total

EMCOMILL E350 - 10000 rpm

with mechanical spindle 10000 rpm

EMCOMILL E350 - 24000 rpm

With motor spindle 24000 rpm

Options/Accessories

Dividing unit

A dividing head representing the 4th axis is available.

Electronic handwheel

For moving the machine’s axes manually to set zero point and tool offsets.

EMCO tool breakage monitoring system

The tool status is monitored by evaluating the load on the various axis drive motors. Excessive loads point to wear or broken tools. Too low a load indicates a tool is missing.

Software/Control

Sinumerik 828D - incl. ShopMill

SINUMERIK 828D: High performance CNC control for ultimate accuracy and machining speed SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art milling machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopMill machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to Advanced Surface, an innovative method of velocity and path control, SINUMERIK 828D also meets the demands of high sophisticated mold & die applications. Source picture and text: Siemens
