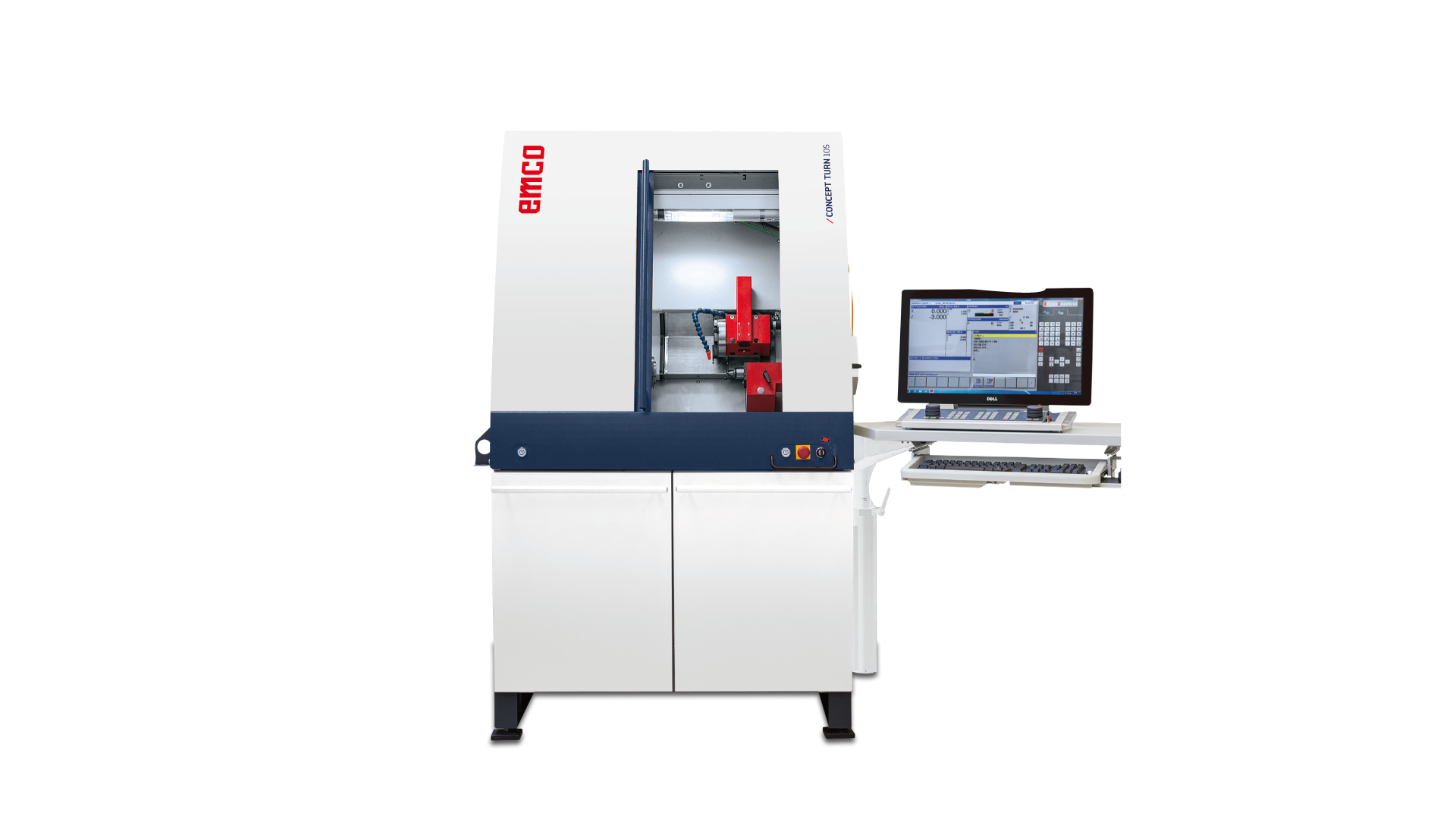

Concept Turn 105

Concept Turn 105

Concept Turn 105

EQUIPMENT

Stable, gray cast-iron inclined-bed construction
Automatic referencing
Constant cutting speed
Industry-standard, stable, gray cast-iron inclined-bed construction
Backlash-free storage of the Work spindle in precise, lifetime-lubricated tapered roller bearings
Micro processor-controlled position monitoring
Optimum guide ratio for the slides for maximum stability and precision
Fully enclosed work area

Technical data

Work area
Travel in X/Y/Z 55 / - / 172 mm
Bar diameter 18 mm
Max. turning diameter 75 mm
Max. part length with tailstock 121 mm
Swing over bed 180 mm
Tool cross-section for outer machining 12 x 12 mm
Tool cross-section for inner machining Ø 16
Rapid motion speeds in X/Y/Z 5 m/min
Work feed X/Y/Z 0-5 m/min
Feed force in X/Y/Z 2000 N
Main spindle
Max. speed 4000 rpm
Spindle nose EMCO
Max. drive power 1,9 kW
Max. torque 14 Nm
Tailstock
Quill travel 120 mm
Tool turret
Number of tools 8
General data
Dimensions (LxWxH) 1135 x 1100 x 1030 mm
Machine weight 350 kg

Highlights

  • Most compact table-top CNC turning machine

  • Industry-standard, stable, gray cast-iron inclined-bed construction

  • Clockwise/counterclockwise spindle rotation

  • Profile rail guides (linear guides)

  • Premium industrial components

  • Safety technology according to the latest lathes standard

  • Infinitely adjustable main drive

  • Automatic 8-position tool turret

  • Automatic refrencing

  • High resolution axis motors

  • Made in the Heart of Europe

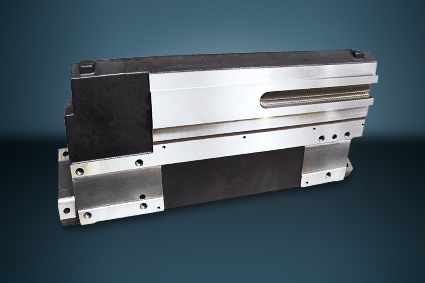

Stable slant bed construction

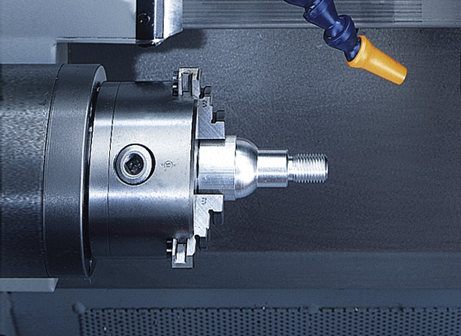

Working spindle

Optimum guide ratio of the slides

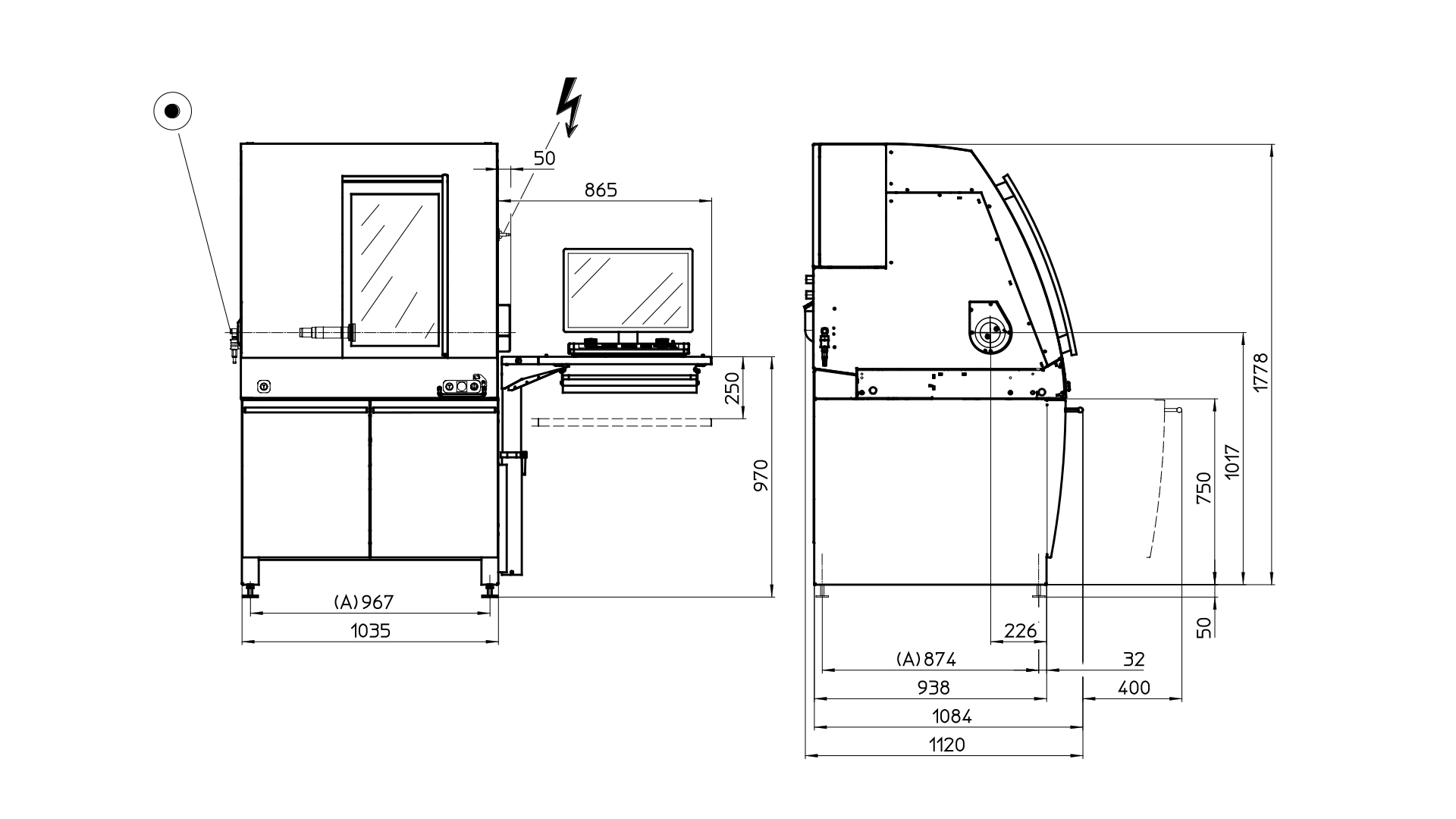

Overall dimensions/Work space

Machine layout Concept Turn 105

Machine layout Concept Turn 105

Workpieces

应用范围举例

  • Plan turning
  • Straight turning
  • Contour turning
  • Infeed and casting
  • Thread cutting
  • Drilling

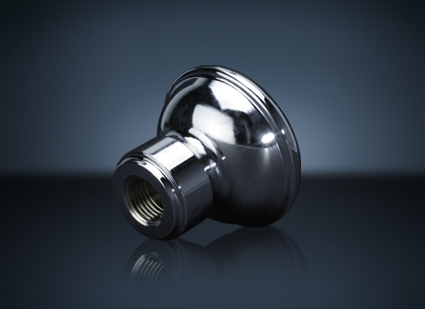

Door knob

Door knob

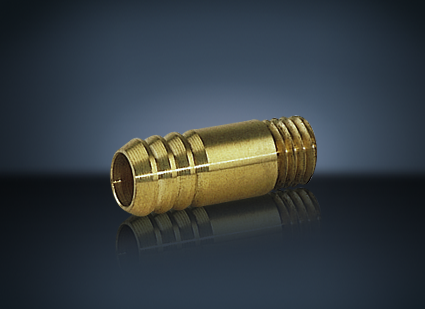

Hose nozzle

Hose nozzle

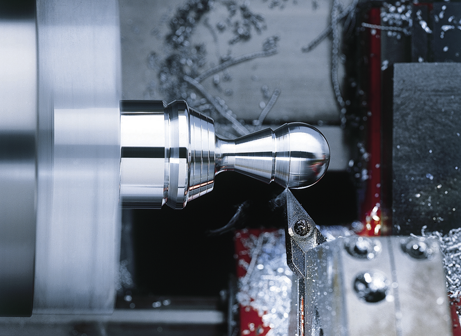

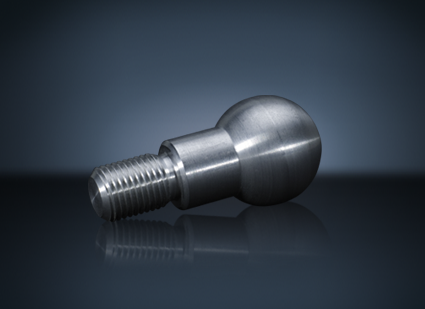

Ball pin

Ball pin

Options/Accessories

Machine base with swivel table

The machine base is equipped with a pull-out drawer for tools and aids and a holder for the coolant system and PC tower. PC keyboard and monitor can be set up on the swivel table.

Comprehensive selection of tools

e.g. roughing tool, copying tools, drill holder, inner threading tool, various drills and indexable inserts for various machining materials.

Easy2control

“Easy2control” adds a range of attractive applications to the successful interchangeable control system used in EMCO training machines. Suitable for use in machines and simulation workplaces alike, it displays additional control elements directly on the screen and, when used together with a touchscreen monitor, provides the ideal input interface. With support for a wide range of keyboard variants, customer-specific screen layouts and tailored solutions for individual customers, Easy2control represents a promising and highly flexible extension to the modular EMCO training concept.
The interchangeable controls are represented using an on-screen keyboard, which makes switching between different control systems even easier and quicker.

Easy2operate

Portable Machine Operating panel to operate the machine via hardware, includes axis buttons, feed override switch, mode switch etc. together with EMCO Easy2control.



Electronic hand wheel

For moving the machine’s axes manually.

Automation

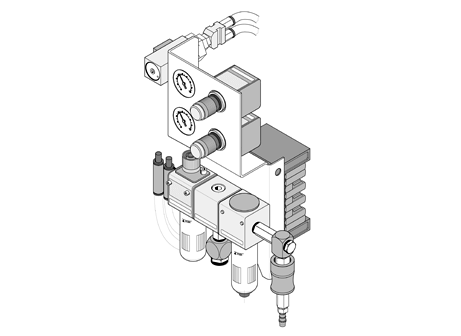

Pneumatic unit and pneumatic chuck

Pneumatic unit and pneumatic chuck The pneumatic unit serves as preparation for the automatic door and the pneumatic chuck, which consists of a pneumatic full clamping cylinder including 3-jaw power chuck and blow-out device.

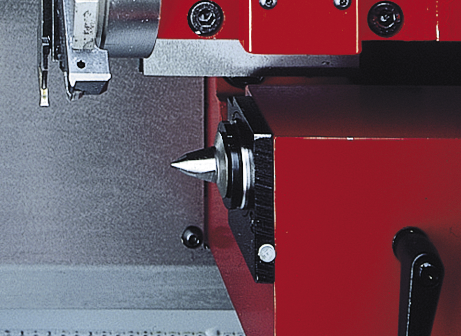

Automatic tailstock

Automatic tailstock incl. stroke control

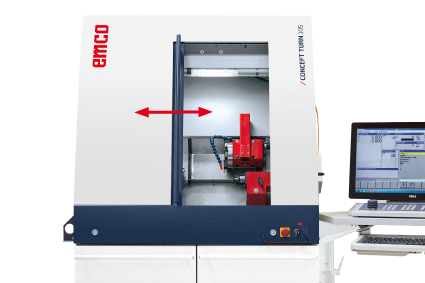

Automatic door

The chip protection door can be opened and closed program-controlled or by pressing a button via a pneumatic cylinder. The door position is monitored using limit switches.

Integration into FMS and CIM systems using robotics and DNC-Interface

The robotics interface can not only control the periphal equipment (such as automatic door, vice, etc.) but also connect the machine to other machines or devices (e.g. loading and unloading robots). The DNC interface allows programs to be transferred and started from the master computer.

Software/Control

[Translate to en:]
EMCO CAMConcept

CAMConcept is innovative software for complete CAD/CAM and CNC training, from design to manufacture. CAMConcept incorporates both the functions of a professional CAD/CAM system and the advantages of a special training program. All core CAD program functions are available. Graphic displays of CNC cycles allow quick programming, while simulations and collision checks ensure that control programming is safe.
