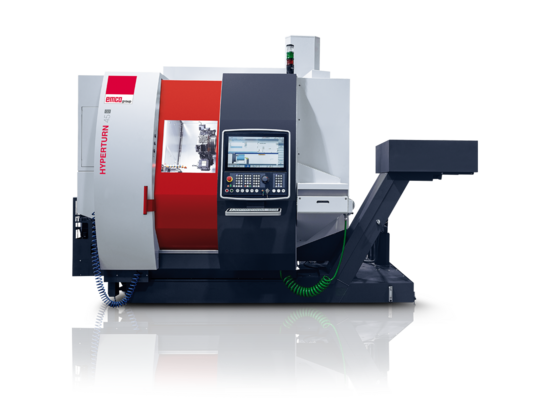

Hyperturn 45

Hyperturn 45
[Translate to zh:]

Hyperturn 45

EQUIPMENT

2 个主轴
2 个刀塔
驱动刀具在2个刀塔上
Y-轴,EMCO自动棒料装载机或回转装载机

主要特点

  • Leistungsstarke Haupt- und Gegenspindel

  • Thermosymmetrischer Maschinenaufbau

  • Dynamische Antriebe (Digitaltechnik)

  • Topaktuelle Steuerungstechnik -

  • Sinumerik 840D Solution Line

  • Stabile Y-Achse mit 70 mm Verfahrweg

  • 2 Werkzeugsysteme mit 12 Werkzeugaufnahmen

  • Kompakte Abmessungen

Hyperturn 45 Arbeitsraum

Bearbeitung Hyperturn 45

Hyperturn 45 Gegenspindel

设置计划/工作区域

Arbeitsraum Hyperturn 45 SMY-plus

Arbeitsraum Hyperturn 45 SMY-plus

应用范围举例

应用范围举例

  • Fertigung von präzisen Werkstücken in mittleren bis hohen Stückzahlen
  • Allgemeiner Maschinen- und Gerätebau
  • Hoch-Präzisionsbereich
  • Medizintechnik
  • Schmuckindustrie

Dental-Winkelstück

Dental-Winkelstück aus Messing

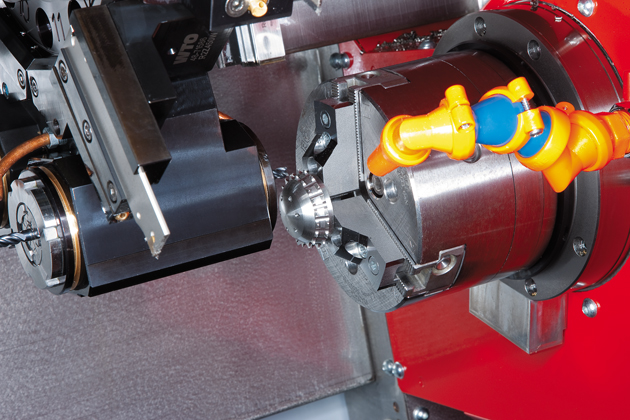

Hüftgelenkschale

Hüftgelenkschale titanlegiert

Starterritzel

Starterritzel 42 Cr Mo 4

版本

Hyperturn 45 SM-plus

Hyperturn 45 SM-plus in der Basisversion mit Haupt- und Gegenspindel, zwei Werkzeugrevolvern mit angetriebenen Werkzeugpositionen

Hyperturn SMY-plus

Hyperturn SMY-plus mit zusätzlicher Y-Achse im oberen Schlittensystem

选项/配件

Werkzeugmesstaster

Der Werkzeugmesstaster ermöglicht das rasche und präzise Vermessen der Werkzeuge an beiden Revolvern im Arbeitsraum. Er wird händisch in die Aufnahme im Arbeitsraum montiert und nach Gebrauch wieder in eine Ablagenische in der Maschinenverkleidung abgelegt.

Entladung durch die Gegenspindel

Lange und schlanke Werkstücke bis zu einem Durchmesser von 45 mm können durch die Gegenspindel aus der Maschine transportiert werden. Die Ablage der Teile erfolgt meist über eine schräge Ebene oder bei Bedarf auch über ein gesteuertes Taktband, um Beschädigungen jeder Art zu vermeiden.

PARTS CATCHER

The HYPERTURN 65’s electro-pneumatic parts catcher is controlled using M functions. When needed, it traverses to the front of the work
area and swivels to the spindle center. The finished part is removed from the clamping device and transferred to the catcher tray. The
parts catcher then moves back to its initial position and the part is deposited onto a conveyor belt.

Band filter system with high-pressure coolant pumps

A coolant pressure of 25/40/60/80 bar can be set as necessary. This enables coolant-fed drilling and milling tools to be used to their best advantage.

Automatic workpiece measuring

The workpieces are automatically measured by an infrared measuring probe that is mounted on the main spindle. Measuring cycles take over the values.

High-pressure coolant pump

A swivel guide with a coolant pump with 20 bar cools spindle and tools.Alternatively cooling by air is possible.

自动化

Swing loader

Universal loading and unloading for preformed blanks and parts.

Using the multiple grippers and handling systems the swing loader can be customized to your individual needs.

Turn / Mill Assist

Compact standard automation for small and medium-sized batches for turning and milling machines.

  • Reduction of working hours by up to 70%
  • Compact and space-saving solution
  • Graphically supported operation
  • Free access to the machine door
  • For small and medium-sized series
  • Very short configuration and setup times
  • No special knowledge about robots required
  • On-site installation and training

Short-bar loader EMCO SL 1200

The EMCO short-bar loader SL 1200 is the perfect solution for the automatic reloading of pre-cut bars up to 1200 mm.

The adavantage: small footprint and short loading times through shorter strokes.

The control unit is perfectly adapted to the interface of the machine.

控件/软件

Sinumerik 840D sl incl. ShopMill

The Sinumerik 840D sl is a universal and flexible CNC system. The Sinumerik 840D sl offers a wide range of functions. It is ideally suited for applications using the most diverse technologies. The Sinumerik 840D sl sets new standards with regard to dynamics, precision and ease of integration into networks.

  • When you are programming away from the machine, the TNC 620 automatically takes the machine geometry into account
  • Tilting the working plane
  • Cylindrical surface machining
  • 3-D tool compensation
  • Fast execution through short block processing times

产品展示 产品隐藏
Fanuc 18i
Highest quality and reliability state-of-the-art: Improvements in technology, ergonomics and user-friendliness assure efficient results in terms of machining workpieces. Technology-specific programming of machining cycles with support of pictures and texts and Manual Guide i including 3D workpiece simulation. An integrated software solution (optional) for abrasion monitoring of turning tools creates additional process safety.

Highlights

  • High reliability
  • Dialog-based programming
  • 3D machining simulation
  • Integrated safety engineering
  • Fast converting of programs
5 and 8 axis users looking for a high-speed, high-performance control platform will find the answer in Fanuc GE's Series 16i/18i/21i controls. This family of controls features networking capabilities, a user-friendly interface high speed PMC, and troubleshooting diagnostic tools. Product description The high-speed and high-precision Nano CNC control for a variety of demanding machinery applications Features
    • High-speed programmable machine control for reduced cycle time.
    • Wide range of communication functions.
    • Open system CNCs support a wide range of software.
    • High-speed connectivity for exceptional system performance
    • PCMCIA for quick updates, with the PCMCIA card slot mounted on the front of the LCD unit.
    • Ultra compact, ultra thin open system CNC
    • Excellent, easy operability and maintenance

产品展示 产品隐藏
EMCONNECT - Digital Process Assistant

For increased productivity and efficiency in production.

EMCONNECT facilitates easy access to digital production – all important information and systems are accessed centrally on the machine. The familiar NC control and hence the familiar operation of the machine remain unchanged.
A clear and compact overview of the machine state, the machine data and the operating mode is available at a glance thanks to the emcoNNECT Dashboard. The hardware basis of the EMCONNECT control centre is a 22“ multi-touch display teamed with an industrial PC and a keyboard including HMI hotkeys for easy and intuitive operation via a user interface optimised for touchscreen use.

Included as standard equipment in the Siemens machine version (Sinumerik ONE).
