CNC-Lathe S45

CNC-Lathe S45

CNC-Lathe S45

EQUIPMENT

Extremely solid machine bed,highest thermostability
Top processing precision
State-of-the-art control technology with Sinumerik 828D or Fanuc Oi TD with ShopTurn and ManualGuide i
Made in the Heart of Europe

主要特点

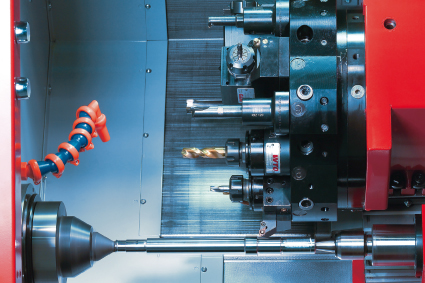

Shaft machining between centers using a face-driver

Parts catcher for unloading of the parts machined from bar stock

Teileauffangvorrichtung zum Abtransport der Fertigteile.

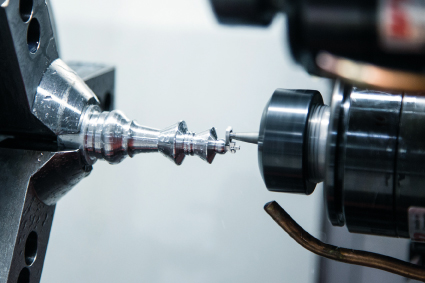

Milling operation using an interpolating C-axis

设置计划/工作区域

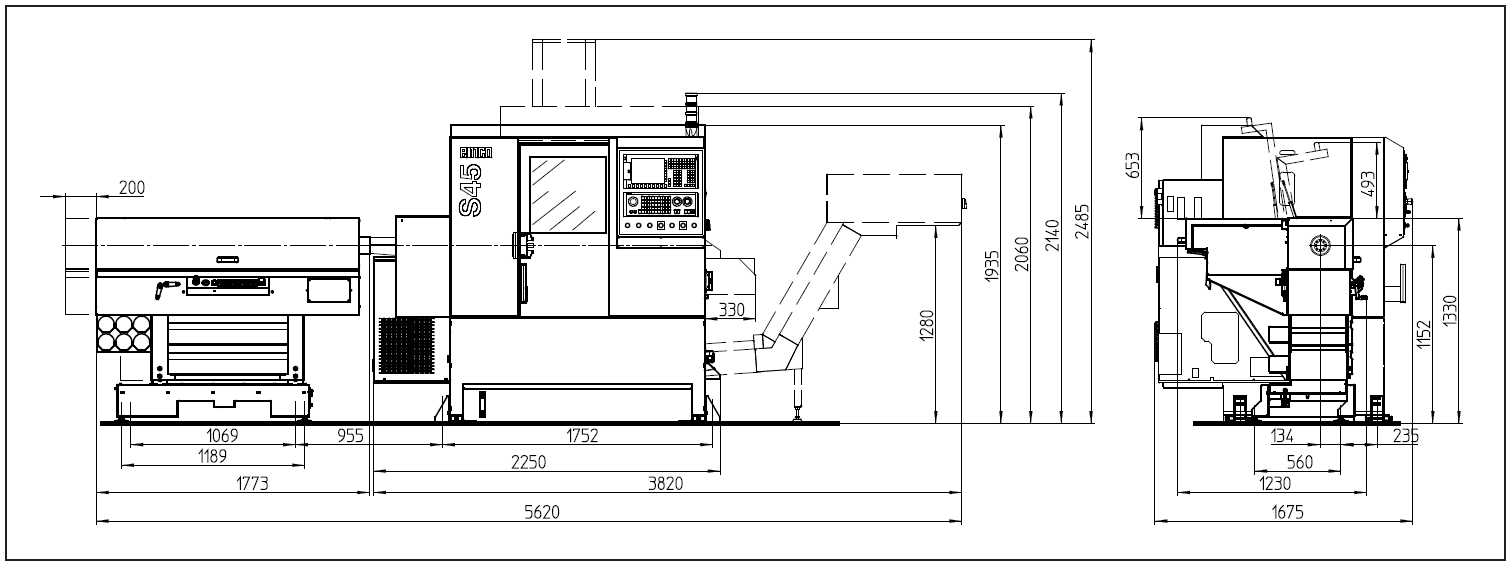

Machine Layout S45

应用范围举例

应用范围举例

  • General engineering
  • Hydraulic components
  • Pneumatic components
  • Medical engineering
  • Fixing systems
  • Materials technology
  • etc.

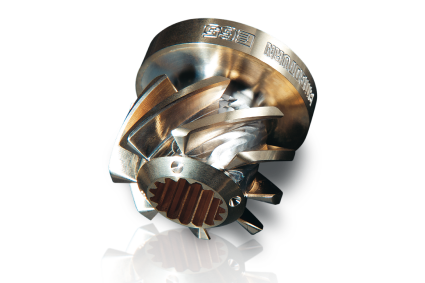

Fan wheel (brass MS58)

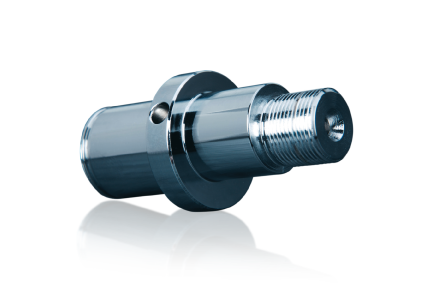

Bearing bolt with eccentric screw (steel 42 Cr Mo 4)

控件/软件

Sinumerik 828D - incl. ShopTurn

High performance CNC control for ultimate accuracy and machining speed. SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art turning machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopTurn machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to powerful kinematic transformations and a large set of technological cycles, SINUMERIK 828D also meets the demands of high sophisticated machine applications with driven tools and sub-spindle. Source picture and text: Siemens

产品展示 产品隐藏
Fanuc 0i TF
FANUC CNC Series 0i-Model TF is the ideal solution for compact high-end turning machines. Combining unbeatable value for money with unrivalled performance, accuracy and reliability. The easy to use and programmability are advantages of this compatible all-round CNC control.

  • Excellent value for money
  • High-speed and nano-smoothing machining
  • Fine surface technology combined with shortest cycle times
  • Benchmark in terms of productivity / availability
  • User-friendly MANUAL GUIDE i and 3-D Simulation
  • Completely compatible with older Fanuc CNCs
  • Same Operation, Programming and Maintenance as FANUC Series 3xi-B (seamless CNC)
  • More than 25 years spare parts availability

产品展示 产品隐藏

下载

CNC-Lathes_S45_S65.pdf

07.09.2023
Preview Download
