Fräsmaschine mit beweglichem Querträger

in Portalbauweise


Design- bzw. Farbumstellung: Termin auf Anfrage
Längs und Querbewegung mittels Ritzel-Zahnstange
Querschlitten komplett verkleidet
Schlitten ausgestattet mit 8 integrierten Führungsbahnen
Hauptspindelmotor: 60 kW
Angetriebene Fräsköpfe 3+2 und/oder 5 Achsen: 38 kW, 600 Nm, 6000 minˉ¹
Hochgeschwindigkeits-5-Achsen Fräskopf bis 42 kW, 120 Nm, 24000 minˉ¹
Numerische Steuerung Heidenhain, Siemens


  • Hohe Dynamik und Genauigkeit

  • Hohe Beschleunigung

  • Flüssigkeitsgekühlte Motoren auf allen linearen Achsen

  • Schruppen bis Feinstzerspanen

Gantry-Fräszentrum mit beweglichem Querbalken


Aufstellplan Dynamill 2

Aufstellplan Dynamill



  • Schlichten eines Stempels für eine Pressform
  • Zerspanen eines Kunstharzteils



Sinumerik ONE with Operate

The Sinumerik ONE is the universal and flexible CNC system. With a wide range of functionality, it is suitable for use in almost all technologies. The Sinumerik ONE sets standards in terms of dynamics, precision and integrability in networks.

With the Sinumerik ONE you rely on:

  • highest performance and flexibility
  • universal openness
  • highly effective personal and machine protection

Sinumerik & EMCONNECT, the digital process assistant
EMCONNECT is included in the standard machine. Switching between emcoNNECT apps and the control system is possible with a single click. All production-relevant data can be displayed in full-screen or sidebar view.

The new SINUMERIK ONE has been specially developed for smart manufacturing.

  • Digital twin is an integral part of the CNC control, virtual and real control merge and complement each other
  • Significant reduction in product development and time-to-market thanks to the digital first strategy
  • Improved networking and data communication capabilities
  • Significant reduction in the duration of real commissioning through virtual preparation for commissioning
  • Significantly increased CNC performance
  • Significantly shorter non-productive times and complete integration into the TIA Portal through the integrated SIMATIC S7-1500F PLC

This means that the SINUMERIK ONE can be seamlessly integrated into digital solutions and workflows.

产品展示 产品隐藏

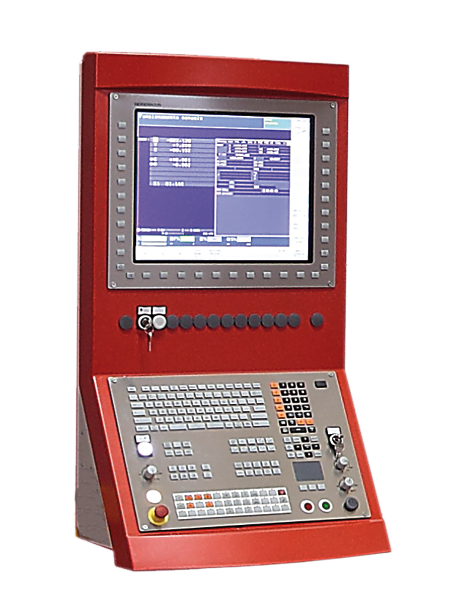

Heidenhain iTNC530 for Mecof

For 30 years, HEIDENHAIN conversational programming has been the standard programming language for all TNC controls and for shop-floor programming in general. The smarT.NC intuitive and self-explanatory
operating mode uses straightforward input forms to guide you through the complete NC programming process all the way to the actual machining. There’s no need to learn G functions or any special programming languages. The control “speaks” with you using easily understandable questions and prompts.
