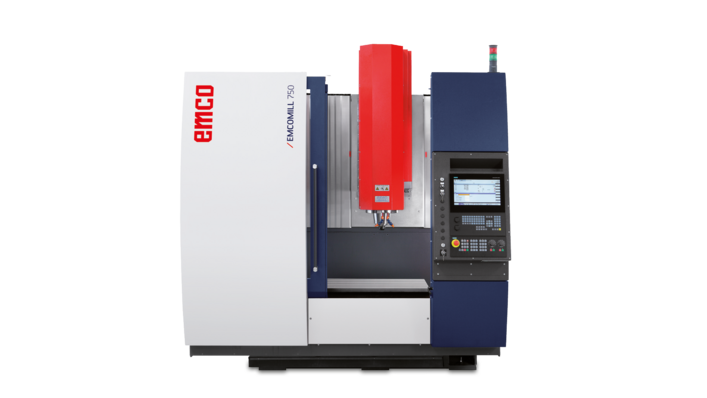

The new EMCOMILL 1200 and EMCOMILL 750 series is designed as a moving column milling machine. The machine bed is made in welded steel, optimised by FEM analysis. The X-, Y- and Z-slides are made in cast iron.
Ball Screws
Grease-lubricated (central) ball screws and linear roller guides (45 mm in the X- and Y-axes; 35 mm in the Z-axis) offer high resistance against mechanical stress and a high, zero-vibration traverse speed. On the picture, machine equipped with linear scales (option).
Tool Magazine

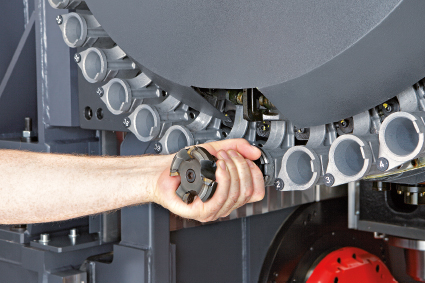

The tool magazine has 30 stations (40/60 as option). The tool management with random tool selection uses a double-gripper that allows to make a pre-search of the tool during the machining cycle. Alternatively it is possible to utilise the tool magazine with a fixed place for big-dimensioned tools, leaving the two adjacent stations free.
Overall dimensions/Work space
Workpieces
Examples of use
Options/Accessories
Tool magazine with 60 tool stations
Tool changes are effected with a double changing arm with "random" tool selection. The drum type magazine with 30 tool stations can be extended to 40 or 60 positions.
High pressure coolant pump
A swivel guide with a coolant pump with 20, 25 or 60 bar cools spindle and tools.
Rotary table
As 4th axis a rotary table with 200 mm diameter can be mounted on customer's request. The rotary table travels CNC controlled and can interpolate with any linear axis (X, Y, Z). For maximum precision in the parts production.
Automatic workpiece measuring
The workpieces are automatically measured by an infrared measuring probe that is mounted on the main spindle. Measuring cycles take over the values.
Easy2control
“Easy2control” adds a range of attractive applications to the successful interchangeable control system used in EMCO training machines. Suitable for use in machines and simulation workplaces alike, it displays additional control elements directly on the screen and, when used together with a touchscreen monitor, provides the ideal input interface. With support for a wide range of keyboard variants, customer-specific screen layouts and tailored solutions for individual customers, Easy2control represents a promising and highly flexible extension to the modular EMCO training concept.The interchangeable controls are represented using an on-screen keyboard, which makes switching between different control systems even easier and quicker.
Easy2operate
Portable Machine Operating panel to operate the machine via hardware, includes axis buttons, feed override switch, mode switch etc. together with EMCO Easy2control.Software/Control
EMCO CPS PILOT - Hyperturn 665 (optional)
Heidenhain TNC 620
Sinumerik 828D - incl. ShopMill
