Emco Vertical VT 400
Emco Vertical VT 400

Emco Vertical VT 400

EQUIPMENT

Fulfills complete machining of complex, heavy workpieces up to 400 mm diameter and 40 kg
Linear Guides size 55/45 for maximum stability
Driven tools and multi-function panel optionally
Modern Siemens control technology
Made in the Heart of Europe

Technical data

Work area
Travel in X/Y/Z 960 / +/- 90 /400 mm
Max. turning diameter 400 mm
Swing over bed 450 mm
Rapid motion speeds in X/Y/Z 45/15/30 m/min
Feed force in X/Y/Z 10.000/10.000/8.500
Main spindle
Max. speed 4000 rpm
Spindle nose A 11
Max. drive power 36 kW
Max. torque 600 Nm
Tool turret
VDI size 40
Number of tools 12
Driven tools 12
Max. speed 4000 rpm
Max. drive power 8,5 kW
Max. torque 40 Nm
General data
Dimensions (LxWxH) 3482 x 2511 x 2939 mm
Machine weight 8500 kg

Highlights

  • Robust, thermally stable machine concept

  • Latest drive technology from Siemens

  • Linear guides size 55/45 for maximum stability

  • Digital drive technology and high traverse speeds to reduce main and ancillary times

  • Machining compartment that is easy to change and easily accessible

  • + / - 90 mm Y axis

  • Multiple automation options

  • Attractive price-performance ratio

Robustes, thermisch stabiles Maschinenkonzept

Vielfältige Automatisierungsmöglichkeiten

Basic machine with driven tools and integrated spindle motor

Höchst effiziente Handlingzeiten

Overall dimensions/Work space

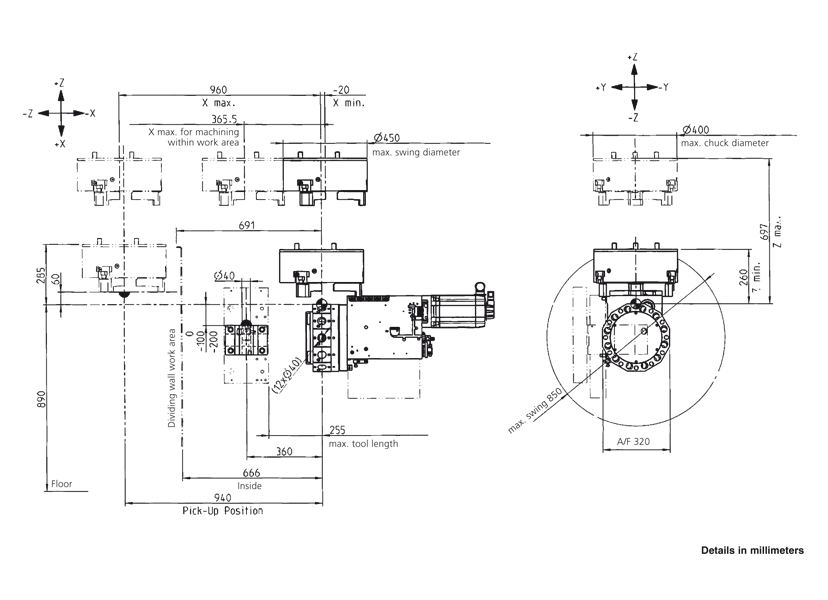

Workspace VT 400

Workspace VT 400

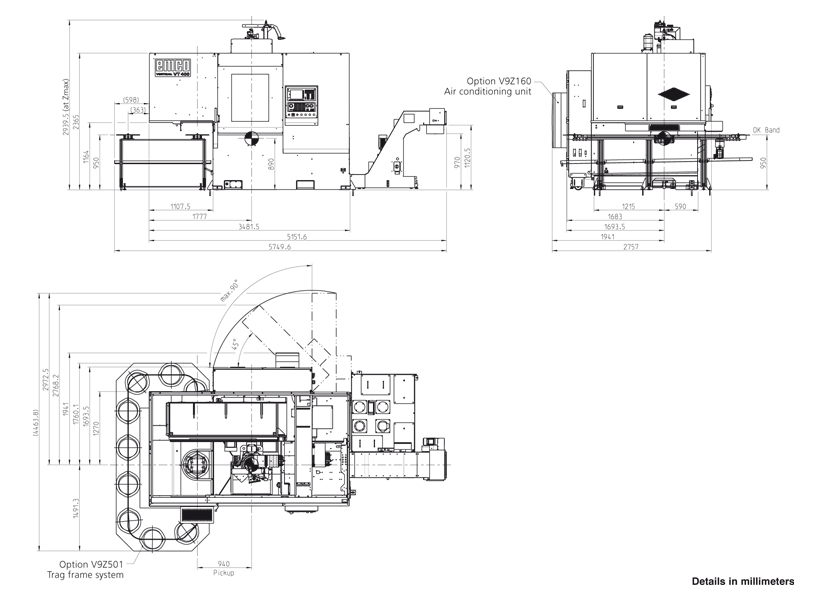

Installation plan VT 400

Installation plan VT 400

Workpieces

Bearing flange

Bearing flange (Steel)

Belt pulley

Belt pulley(Steel)

Versions

VT 400

Basic machine with driven tools and integrated spindle motor

EMCO Vertical VT 400M (ISM)

Basic machine with driven tools and integrated spindle motor

EMCO Vertical VT 400 MY (ISM)

Basic machine with driven tools, Y axis and integrated spindle motor

Options/Accessories

Automatic workpiece measuring

The workpieces are automatically measured by an infrared measuring probe that is mounted on the main spindle. Measuring cycles take over the values.

Software/Control

Sinumerik 828D - incl. ShopTurn

High performance CNC control for ultimate accuracy and machining speed. SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art turning machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopTurn machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to powerful kinematic transformations and a large set of technological cycles, SINUMERIK 828D also meets the demands of high sophisticated machine applications with driven tools and sub-spindle. Source picture and text: Siemens
