3 axes positioning display

3 axes positioning display
Die EMCO 3-Achsen-Positionsanzeige bietet eine permanente Positionsanzeige der X/Y/Z- bzw. X/Zo/Z-Achse am TFT-Bildschirm. Die Positionserfassung der Achsen erfolgt über Linearmaßstäbe auf eine Genauigkeit von 0,001mm.

3 axes positioning display

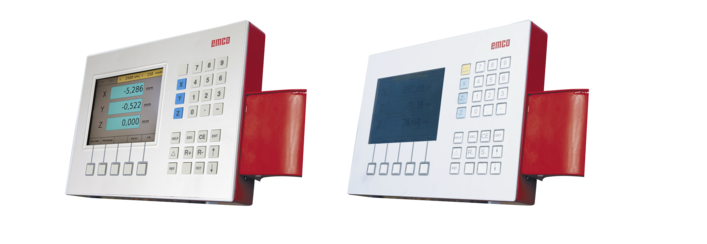

With the EMCO 3 axes positioning display the X/Y/Z and the X/Zo/Z axes, respectively, are displayed permanently on the TFT screen.

The position of the axes is measured by a glass scale with an accuracy of 0.001 mm.

Highlights

  • Permanent display of X/Y/Z and X/Zo/Z

  • 999 tools

  • 999 contour points

  • Home position

  • Display of remaining path

  • Imperial/metric switch

  • Tool radius adjustment

  • Support for hole pattern

  • Constant cutting speed

  • USB interface

  • Clock

  • Languages: German, English, Spanish, Italian, Dutch, French, Czech, Hungarian, Polish, Russian

Downloads

Updates/Upgrades

Get your software up to date! Get the latest SW-version for your EMCO 3 axis positioning display.

Title Version Filesize
UPDATE EM14D/17D/20D C40/C50 4.04 39 MB -1
UPDATE FB450/FB600 4.02.0003 36 MB

Instructions/Manuals

Here, you can find all information about the installation and use of the control.

Title Version Filesize
D2009-12 922 KB 0
D2009-12 970 KB 2
D2009-12 957 KB 3
D2009-12 987 KB 5
D2009-12 947 KB 6
C2008-08 776 KB 0
C2008-08 763 KB 1
D2009-12 940 KB 1
C2008-08 788 KB 2
C2008-08 790 KB 3
C2008-08 797 KB 5
C2008-08 759 KB 6
B2012-03 336 KB 0
2009-12 2 MB 1
B2006-05 2 MB 9
