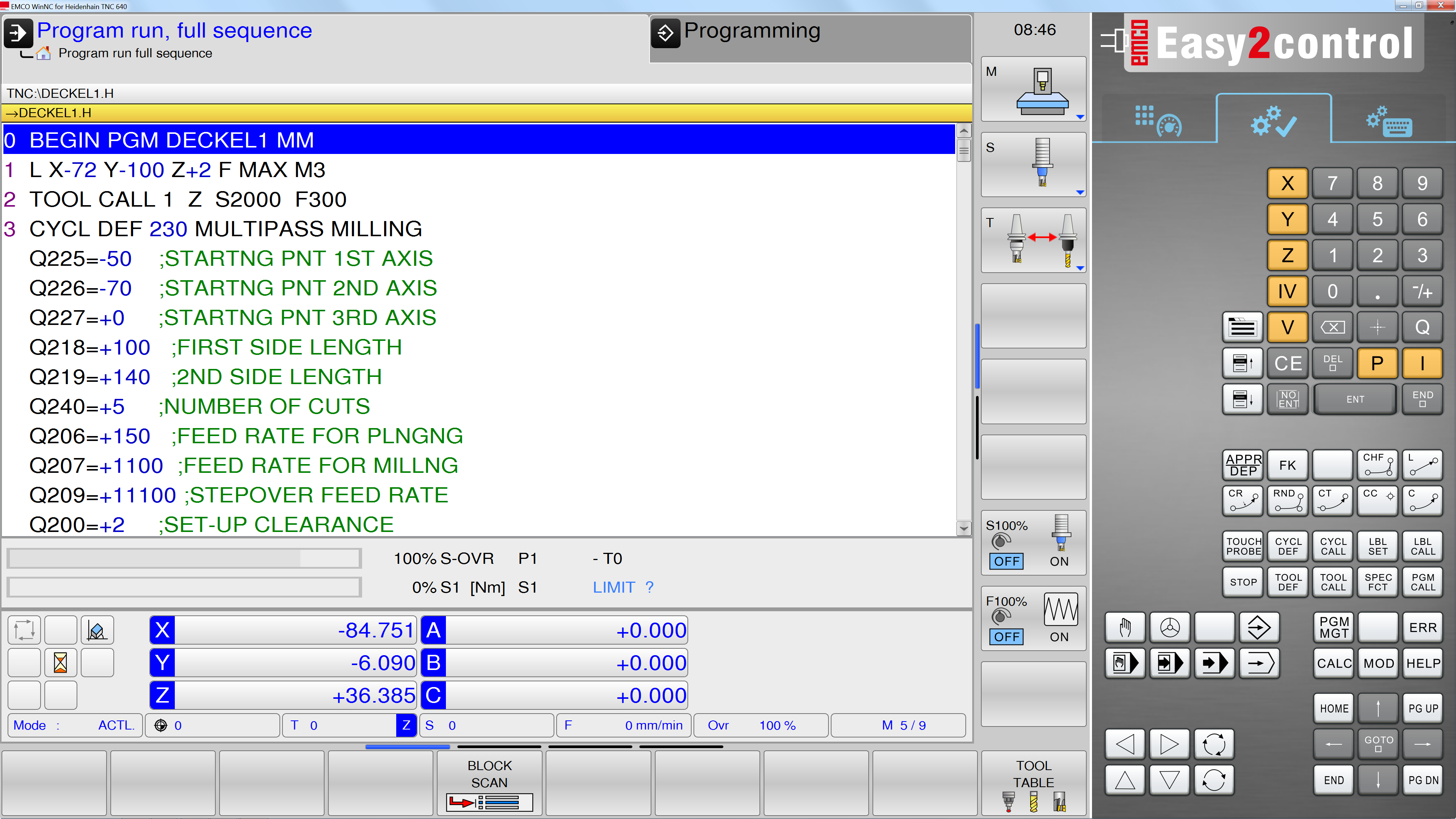

WinNC is a control-specific software solution to be installed on a standard PC.

As regards operation and functionality, it corresponds to the original control.

With the new EMCO WinNC for Heidenhain TNC640, the range of controls commonly used in industry has been expanded by another important version.

A precise simulation of the functionalities and user interfaces covers all training-relevant areas of the original control.

Comprehensive processing cycles simplify the creation of NC programmes.

Highlights

Heidenhain TNC640

  • Horizontal and vertical control via softkeys like the industry control Heidenhain TNC 640

  • 3D View

  • Detailed error messages about drive problems and programming faults

  • Operation via PC keyboard, control keyboard, mouse or Onscreen keyboard

  • Languages: German, English, Spanish, French, Dutch, Czech

  • NC-programs and tool data will be stored permanently

  • Program titles can be given individually

  • Window oriented, modern user interface

  • Comprehensive editor with intermediate memory storage function

  • Large NC program memory (limited only by the size of the hard disc)

  • Simulation of 4th/5th axis (Mill260) incl. swiveling table

Functions

Automatic measuring of position offsets

When scratching the measured workpiece the position offsets will be taken over.

Preliminary block run

Already finalized NC codes can be skipped.

Automatic measuring of tools

When scratching the reference workpiece the workpieces offsets can be taken over.

Dry run

In the run-up to the machining process collisions and programming mistakes can be avoided and corrected by using the dry run.

Editor with cycles and help images

The control includes an editor with cyxcles and help images for easier operation and programming.

Context sensitive help

By pressing the help buttun, the manual is opened at the approriate page and displayed on the screen.

Presettable

Position offset management for a convenient ane efficient setup of the machine.

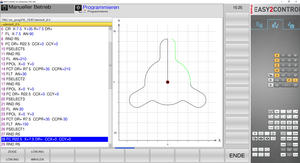

Contour processor with graphic simulation (Free contour programming)

Programming a 'free contour' with graphic representation (including selection options)

Licenses

Heidenhain TNC640

Homeschooling license

Extension of the multiple license. Any number of distance students can also install the programming stations off-site. The license is valid for 5 years and thus covers more than one teaching cycle.

Machine license

Control software for all EMCO CONCEPT machines

Single license

External programming station for all EMCO CONCEPT machines

Downloads

Software-Demos

Software demo / full version / homeschooling

Just give our WinNC software a try! All WinNC controls can be tested as demo versions free of charge and without obligation.

Our DEMO versions contain the full range of functions (only programming stations, direct control of machines is only possible via licensed software), but their useful life is limited to 30 days (from the date of installation).

By entering a valid license key all demo versions can easily converted into a full version or a homeschooling version at any time.
