Emcomill 1800

Emcomill 1800

Emcomill 1800

EQUIPMENT

CNC vertical machining center with high-performance milling spindles
30 x tool magazine (opt. 40 or 60)
Quick release with double gripper
On request rotary table as 4th axis
Siemens or Heidenhain control

Технические характеристики

Рабочая область
Ход осей X/Y/Z 1800 / 610 / 500 mm
Расстояние шпинделя к столу 175 / 675 mm (mechanical spindle) / 150 / 650 mm (motor spindle)
Количество осей (базовая версия) 3 (4 opt.)
Скорость быстрого хода осей X/Y/Z 30 m/min
Рабочая подача X/Y/Z 15 m/min
Рабочая площадь 2000 x 650 mm
Макс. нагрузка стола 2000 kg
Моторный шпиндель
Макс. скорость оборотов 50-15000 rpm
Мощность привода 20 kW
Макс. крутящий момент 100 Nm
Механический шпиндель
Макс. скорость оборотов 50-12000 rpm
Мощность привода (S6) 15 kW
Макс. крутящий момент (S6) 100 Nm
Смена инструмента
Количество гнезд для инструмента 30 (40/60)
Время смены инструмента (инст/инстр) 2 sec.
Макс. диаметр инструмента 75 mm
Макс. длина инструмента 250 mm
Габариты
Габаритные размеры (ДхШхВ) 3070 x 4420 x 3360 mm
Вес станка 14.000 kg

Основное

  • Vertical machining center with high-performance milling spindles

  • Flexible tool system

  • Large work area with wide machine doors

  • Solid fixed table for workpiece weights up to 2000 kg

  • Cutting-edge control technology from Siemens or Heidenhain

  • Unbeatable price-performance ratio

  • Best European quality – Made in the Heart of Europe

High performance spindles

You can choose between two variants for different areas of application: 12,000 rpm (direct drive) or 15,000 rpm (motor spindle).

TOOL MAGAZINE

The tool magazine has 30 stations (40/60 as option). The tool management with random tool selection uses a double-gripper that allows to make a pre-search of the tool during the machining cycle. Alternatively it is possible to utilise the tool magazine with a fixed place for big-dimensioned tools, leaving the two adjacent stations free.

BALL SCREWS

Grease-lubricated (central) ball screws and linear roller guides (45 mm in the X- and Y-axes; 35 mm in the Z-axis) offer high resistance against mechanical stress and a high, zero-vibration traverse speed. On the picture, machine equipped with linear scales (option).

DESIGN

The new EMCOMILL series is designed as a moving column milling machine. The machine bed is made in welded steel, optimised by FEM analysis. The X-, Y- and Z-slides are made in cast iron.

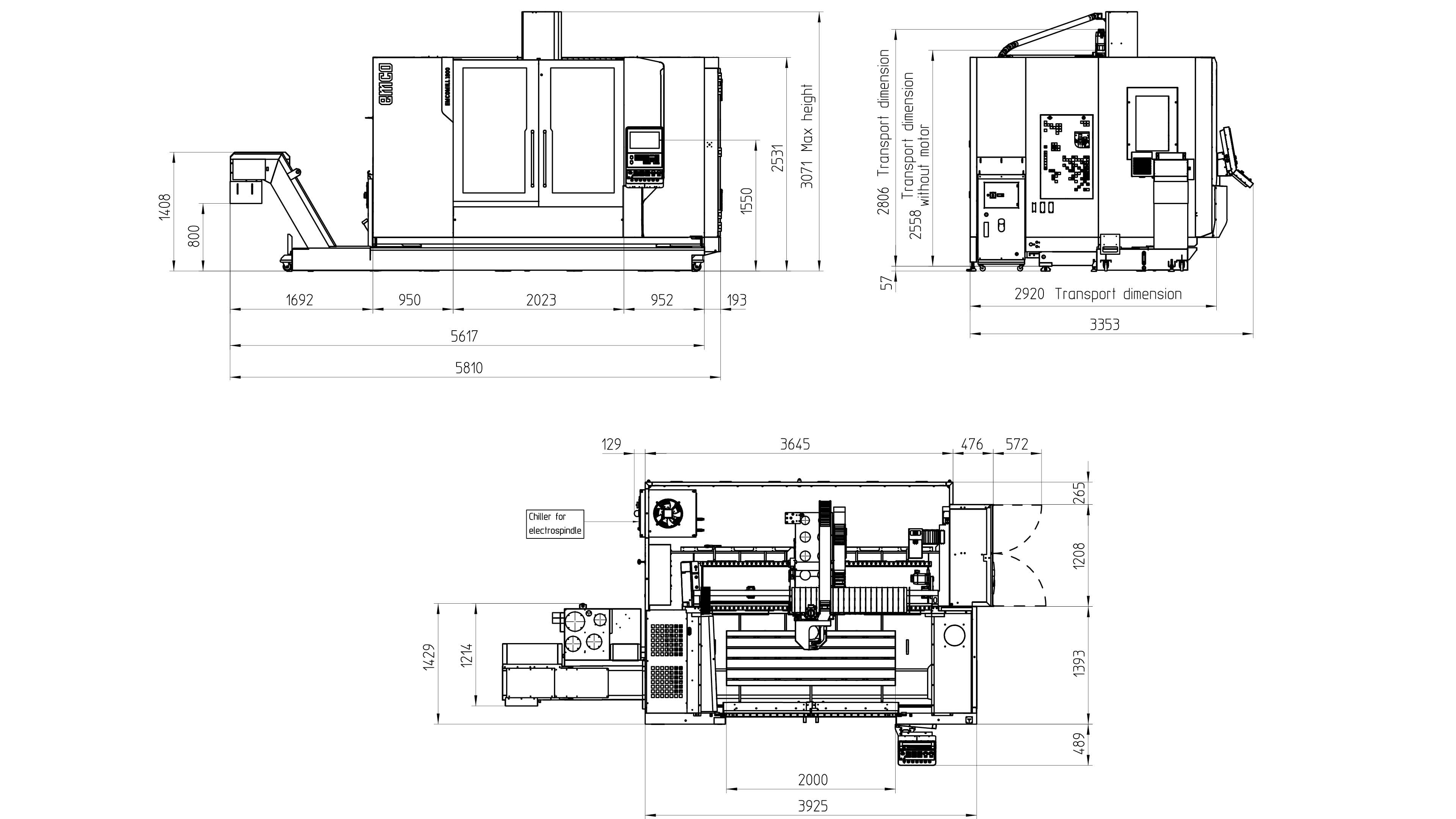

Общие габаритные размеры

Принадлежности

Rotary table

As 4th axis a rotary table with 200 mm diameter can be mounted on customer's request. The rotary table travels CNC controlled and can interpolate with any linear axis (X, Y, Z). For maximum precision in the parts production.

SIDE TOOL MAGAZINE DOOR

The side tool magazine door allows fast loading and unloading, as well as control and cleaning of the tools.

MEASURING SYSTEMS

Both the measurement of the tool to reduce the set-up time during tool change as well as the measurement of the workpiece in order to check dimensions or to determine zero points, is optionally possible within the machine by means of a radio or a laser bridge.

Система управление/Програмное обеспечение

Sinumerik 828D - incl. ShopMill

SINUMERIK 828D: High performance CNC control for ultimate accuracy and machining speed SINUMERIK 828D and SINAMICS drive and motors are perfectly tailored for state of the art milling machines. Powerful CNC-functions combined with a unique 80bit NANOFP Accuracy (80 bit floating point accuracy from the position control to the internal encoder resolution) enable highest work-piece accuracy at a minimum of machining time. With a flexible CNC programming language and the state of the art ShopMill machining step programming, single parts as well as large batch series can be programmed and machined with maximum effectiveness. Due to Advanced Surface, an innovative method of velocity and path control, SINUMERIK 828D also meets the demands of high sophisticated mold & die applications. Source picture and text: Siemens
