Highlights

  • WinNC is a specific control software that is installed on a commercially available PC

  • Its operations and functions correspond to those of the respective original control

  • The new EMCO WinNC for Heidenhain TNC 640 adds another important version to the range of industrial controls

  • A faithful reproduction of the functionalities and user interfaces covers all areas of the original control that are relevant to training

  • Extensive machining cycles simplify the creation of NC profile programs

  • Compatible with 'EMCONNECT for WinNC'

Functions

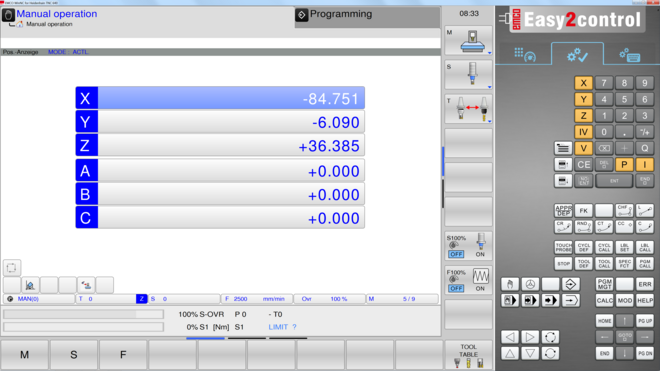

Automatic measuring of position offsets

When scratching the measured workpiece the position offsets will be taken over.

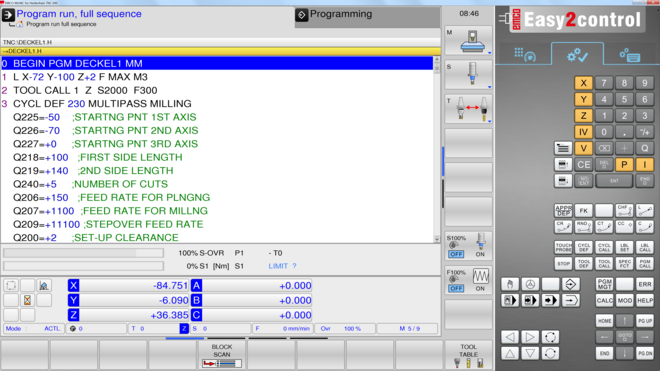

Preliminary block run

Already finalized NC codes can be skipped.

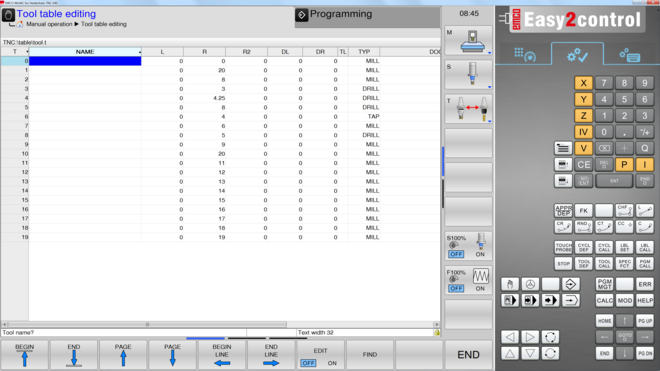

Automatic measuring of tools

When scratching the reference workpiece the workpieces offsets can be taken over.

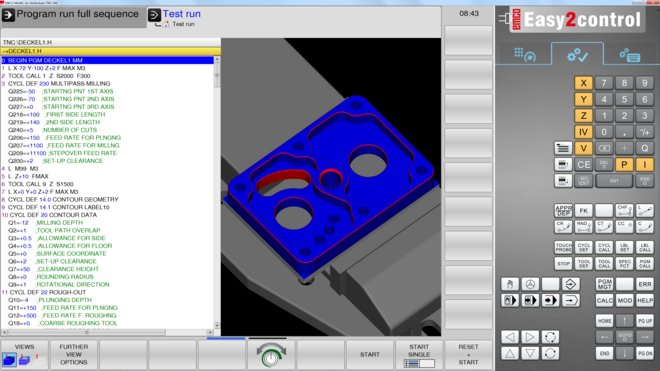

Dry run

In the run-up to the machining process collisions and programming mistakes can be avoided and corrected by using the dry run.

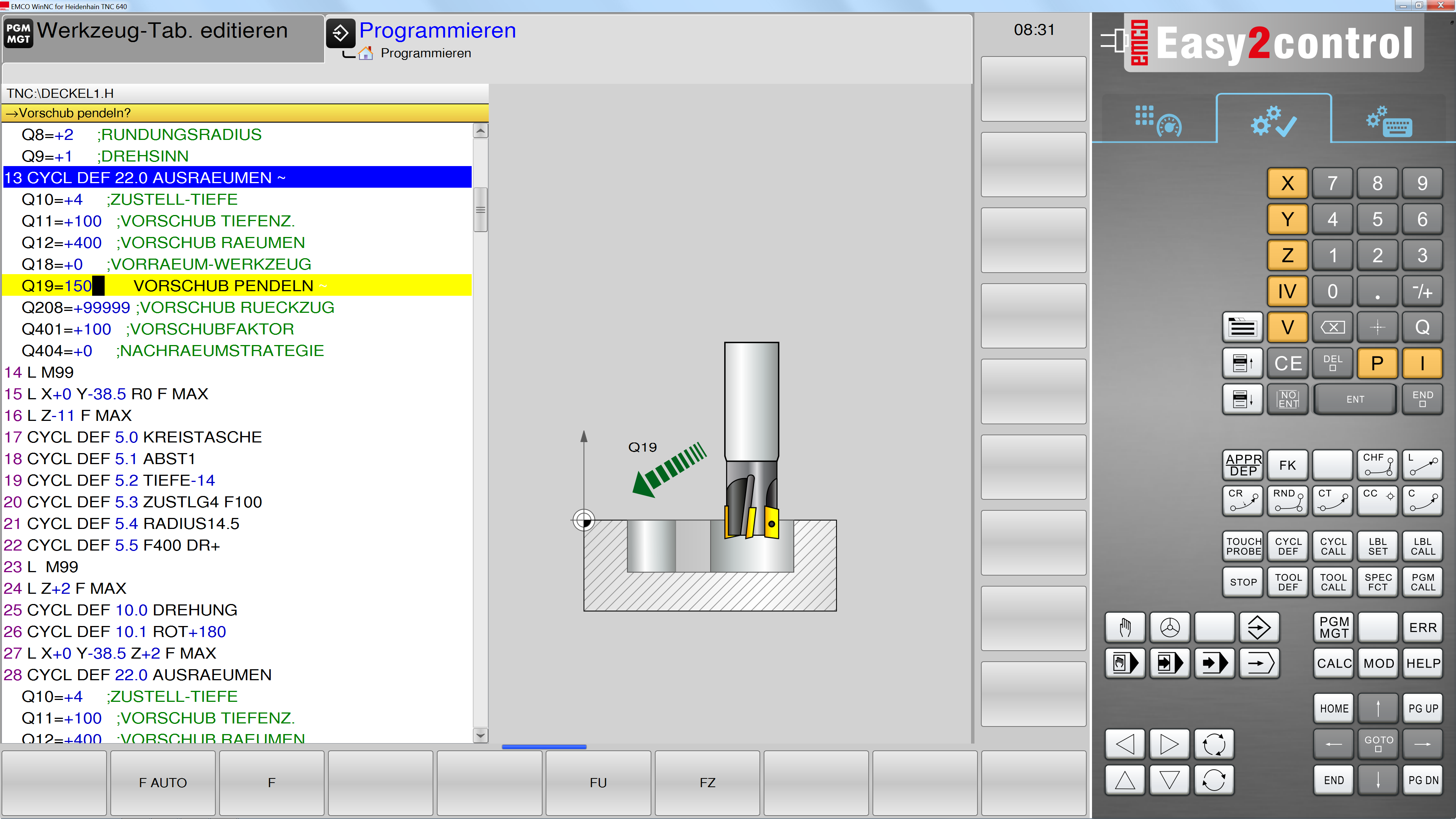

Editor with cycles and help images

The control includes an editor with cyxcles and help images for easier operation and programming.

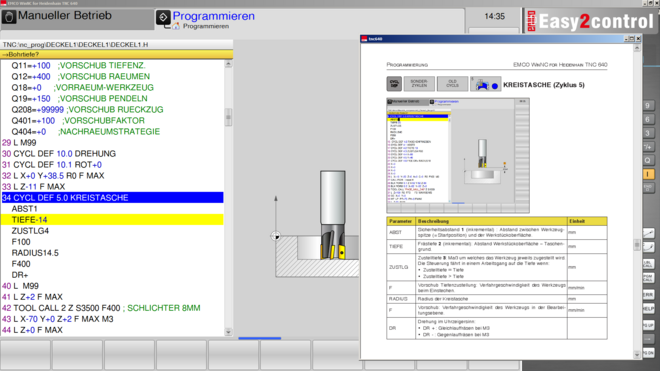

Context sensitive help

By pressing the help buttun, the manual is opened at the approriate page and displayed on the screen.

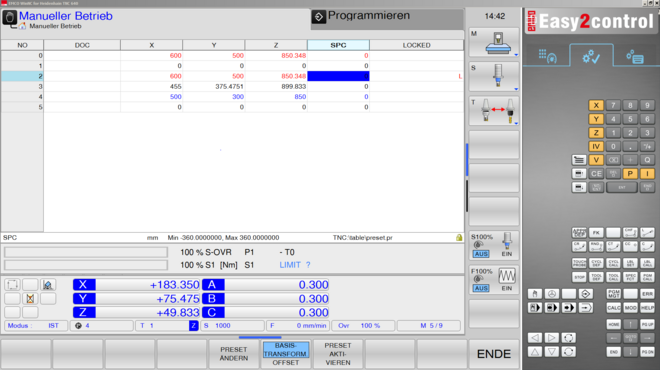

Presettable

Position offset management for a convenient ane efficient setup of the machine.

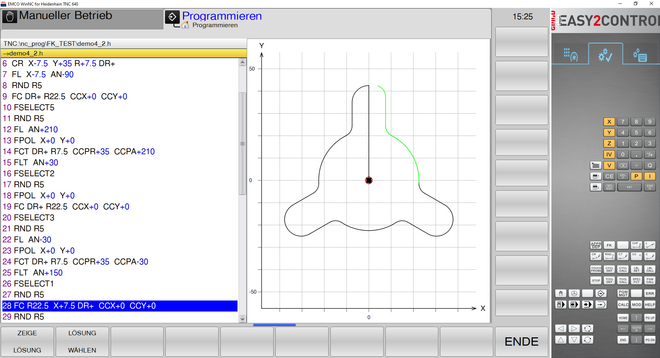

Contour processor with graphic simulation (Free contour programming)

Programming a 'free contour' with graphic representation (including selection options)

Licenses

Heidenhain TNC640

Homeschooling license

Extension of the multiple license. Any number of distance students can also install the programming stations off-site. The license is valid for 5 years and thus covers more than one teaching cycle.

Machine license

Control software for all EMCO CONCEPT machines

Single license

External programming station for all EMCO CONCEPT machines

Downloads

Software-Demos

Software demo / full version / homeschooling

Just give our WinNC software a try or get up to date!

All WinNC controls can be tested as demo versions free of charge and without obligation.

If you already have a WinNC software activated by a valid license key, you can bring it up to date with an update installation.

Please ensure that, in case of an update, all WinNC-components (WinNC-controls, 3DView, DNC, Robotic, CAMConcept,..) located in the regarding directory must be updated to the current release-version.

Our DEMO versions contain the full range of functionality (only programming stations, direct control of machines is only possible via licensed software), but their useful life is limited to 30 days (from the date of installation).

By entering a valid license key all demo versions can easily by converted into a full version or a homeschooling version at any time
